Product details

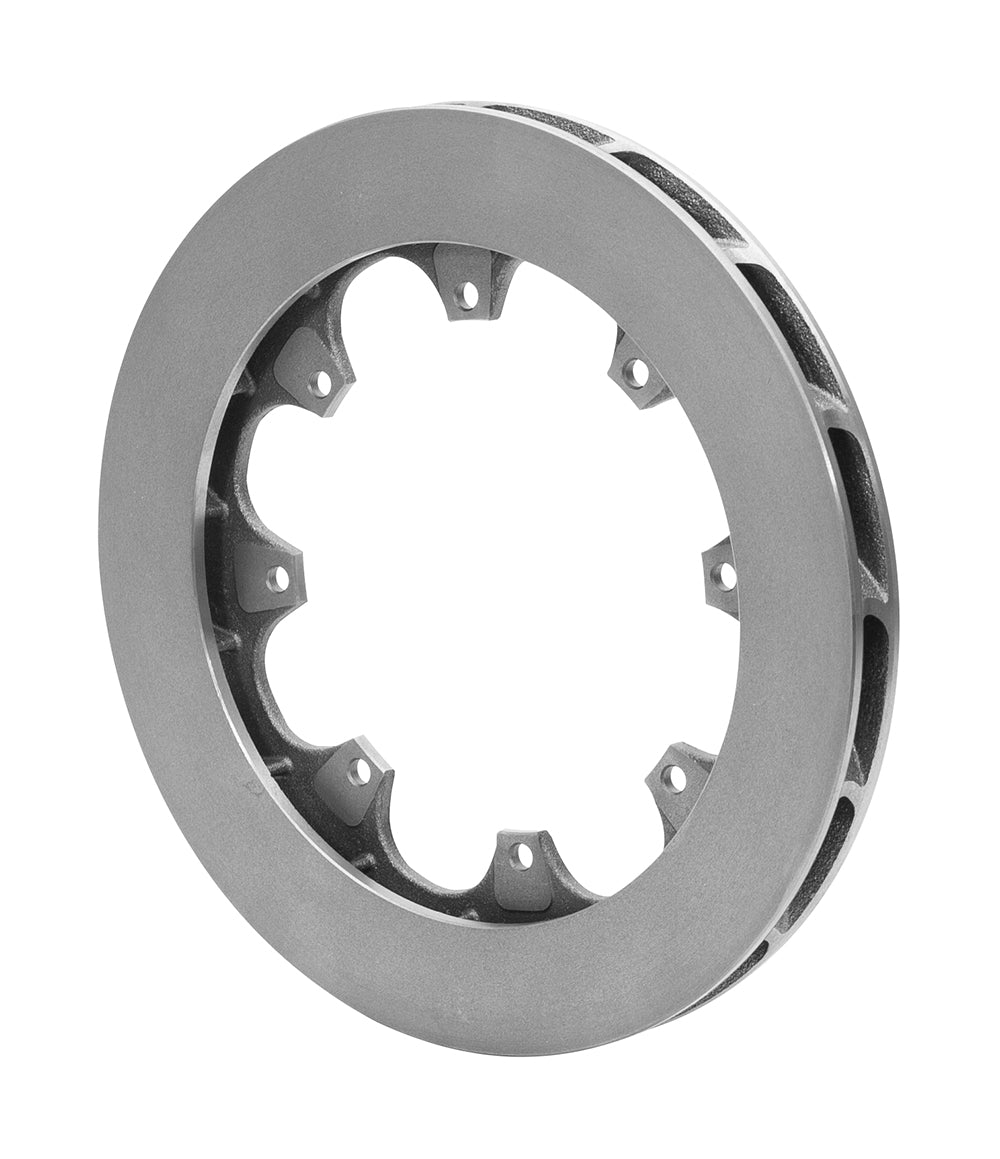

The ULHD sixteen-vane casting uses a 0.99-inch section with smooth pad-contact faces. This right-hand 11.75-inch rotor is intended for matching moderate-temperature dirt or asphalt racing systems, where the thermal duty must suit the lightweight ring. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers and brake rotors work alongside its master cylinders, valves, fittings and brake lines, with each individual component selected according to the complete system's requirements.
Technical Details
- Manufacturer part number: 160-15877
- Outside diameter / width: 11.75 inches diameter x 0.99 inches wide
- Material specification: Spec-37 Iron
- Friction surface / finish: Plain Face; Plain
- Ventilation: 16 CV; curved
- Mounting direction: Right-hand
- Preparation: Balanced: no; factory burnished: no
- Opposite-side component, ordered separately: 160-15878
- Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
- Attachment hole size or thread: 0.326 inches
- Center registration: 6.38 inches
- Far-side inside diameter: 8.46 inches
- Approximate weight: 7.10 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
For moderate-temperature dirt or asphalt racing with a brake assembly specified for the 16-vane ULHD casting. The 0.99-inch width and plain contact faces must suit the caliper and pad package; a heavier-duty casting should not be replaced solely on matching bolt circle.
Manufacturer reference: Wilwood rotor specifications
Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
