Product details

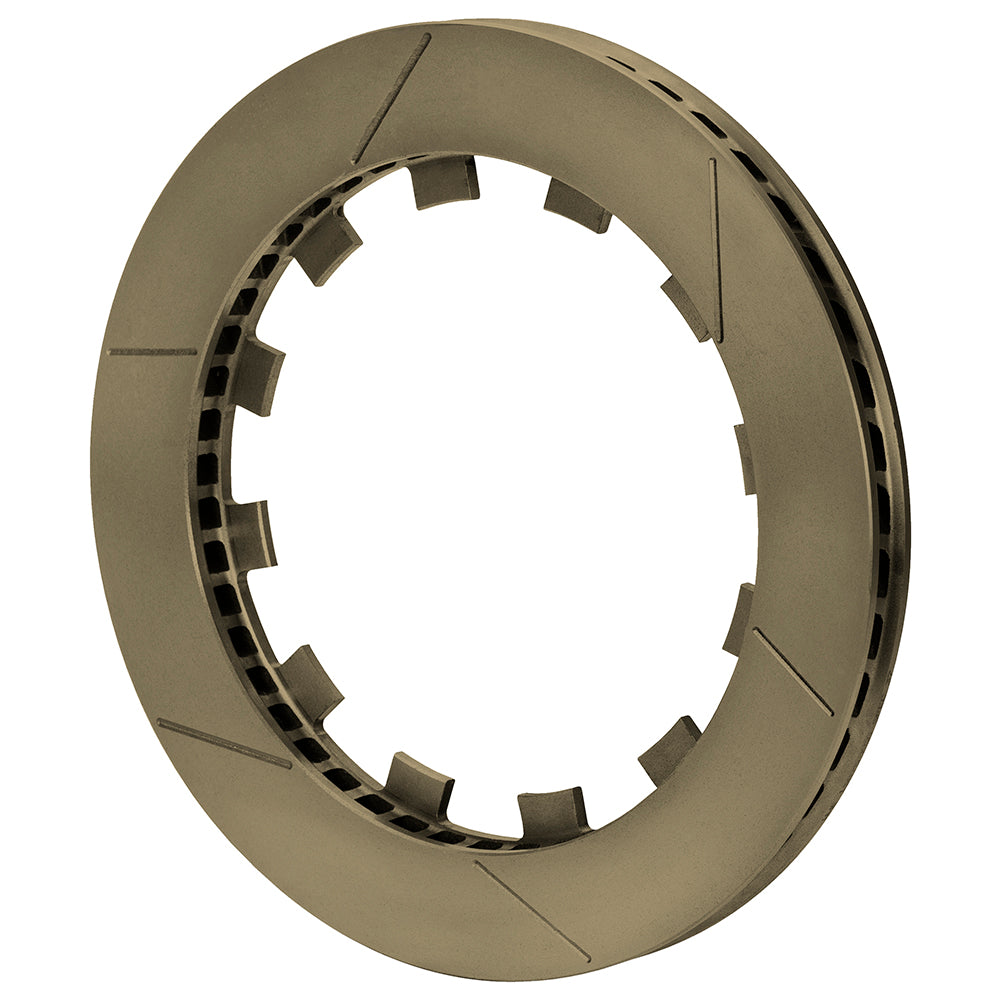

Factory burnishing and a left-hand curved-vane layout define this prepared thirteen-inch rotor. Its 1.00-inch-wide GT ring mounts through twelve dynamic lugs, requiring the matching carrier rather than a bolted hat of similar diameter. For this rotor, the manufacturer is Wilwood Engineering, founded in 1977 by Bill Wood and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized products are selected to satisfy the complete brake system's requirements.
Technical Details
- Manufacturer part number: 160-15876-B
- Rotor size: 13.00 inches diameter x 1.00 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 48 CV; curved
- Mounting direction: Left-hand
- Factory condition: Factory burnished yes; balanced yes
- Opposite-side component, ordered separately: 160-15875-B
- Dynamic-lug mounting interface: 12 x 8.80 inches
- Mounting interface: Lug
- Center / lug registration: 8.12 inches
- Far-side inside diameter: 9.46 inches
- Approximate component weight: 11.82 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Requires the specified dynamic-lug hat or carrier and its retaining hardware. The lugs accommodate the intended mounting movement; conventional bolt-hole hats are not interchangeable. Check the rotor's diameter, working width and registration against the complete caliper assembly. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
