Product details

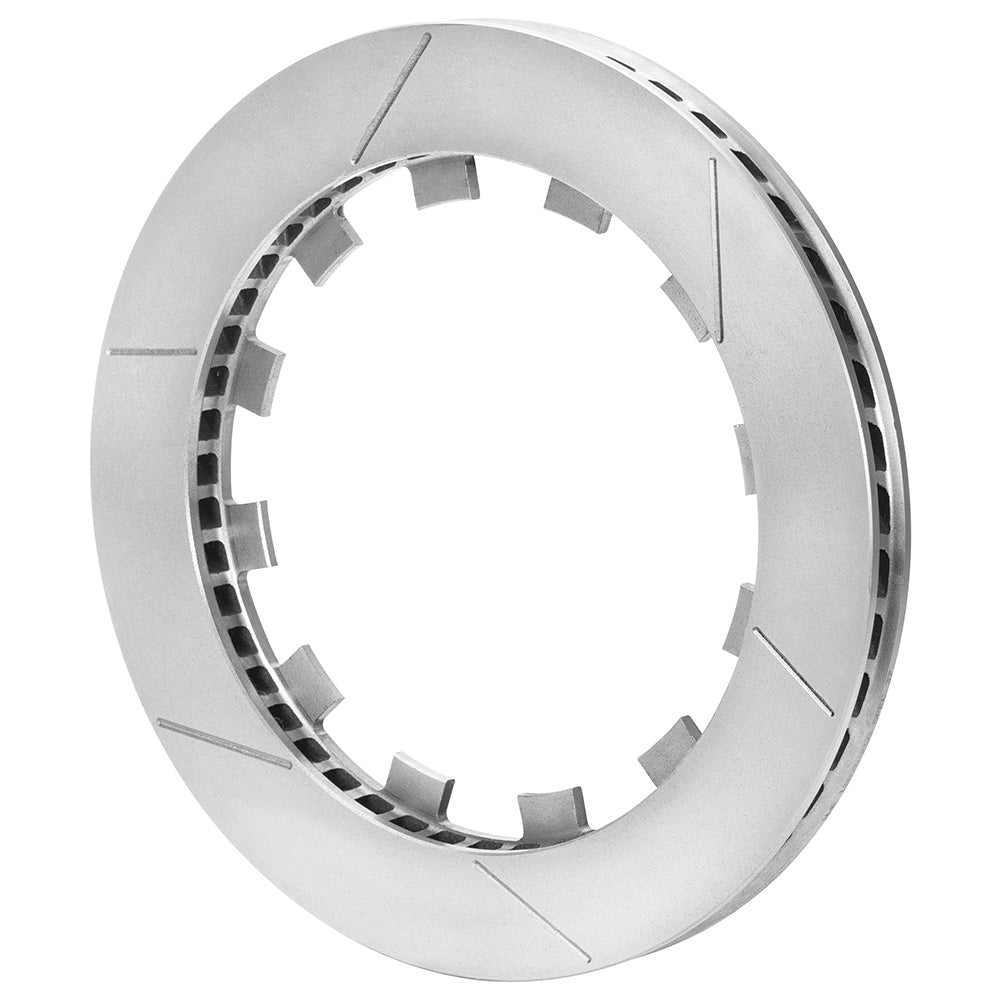

A one-inch working width distinguishes this right GT rotor from the thicker dynamic-mount rings. Its 13.00-inch diameter and 48 curved vanes are combined with twelve mounting lugs for the appropriate 8.80-inch carrier. Wilwood Engineering is based in Camarillo, California and was founded by Bill Wood in 1977. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. The range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, all of which require selection around the full brake system rather than an isolated dimension.
Technical Details
- Manufacturer part number: 160-15875
- Outside diameter / width: 13.00 inches diameter x 1.00 inches wide
- Material specification: Spec-37 Iron
- Friction surface / finish: GT Slotted; Plain
- Ventilation: 48 CV; curved
- Mounting direction: Right-hand
- Preparation: Balanced: yes; factory burnished: no
- Opposite-side component, ordered separately: 160-15876
- Dynamic-lug mounting interface: 12 x 8.80 inches
- Mounting interface: Lug
- Center registration: 8.12 inches
- Far-side inside diameter: 9.46 inches
- Approximate weight: 11.82 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Use the one-inch-width caliper arrangement for this thirteen-inch dynamic rotor. Twelve lugs engage the 8.80-inch carrier, with 8.12-inch registration and the matching retention hardware. Verify right-side vane orientation and full pad sweep before completing the race or street brake assembly.
Manufacturer reference: Wilwood rotor specifications
For help identifying the correct replacement, share the installed brake package with PMB Performance. Our team draws on over 20 years of experience with brake components and fitment.
