Product details

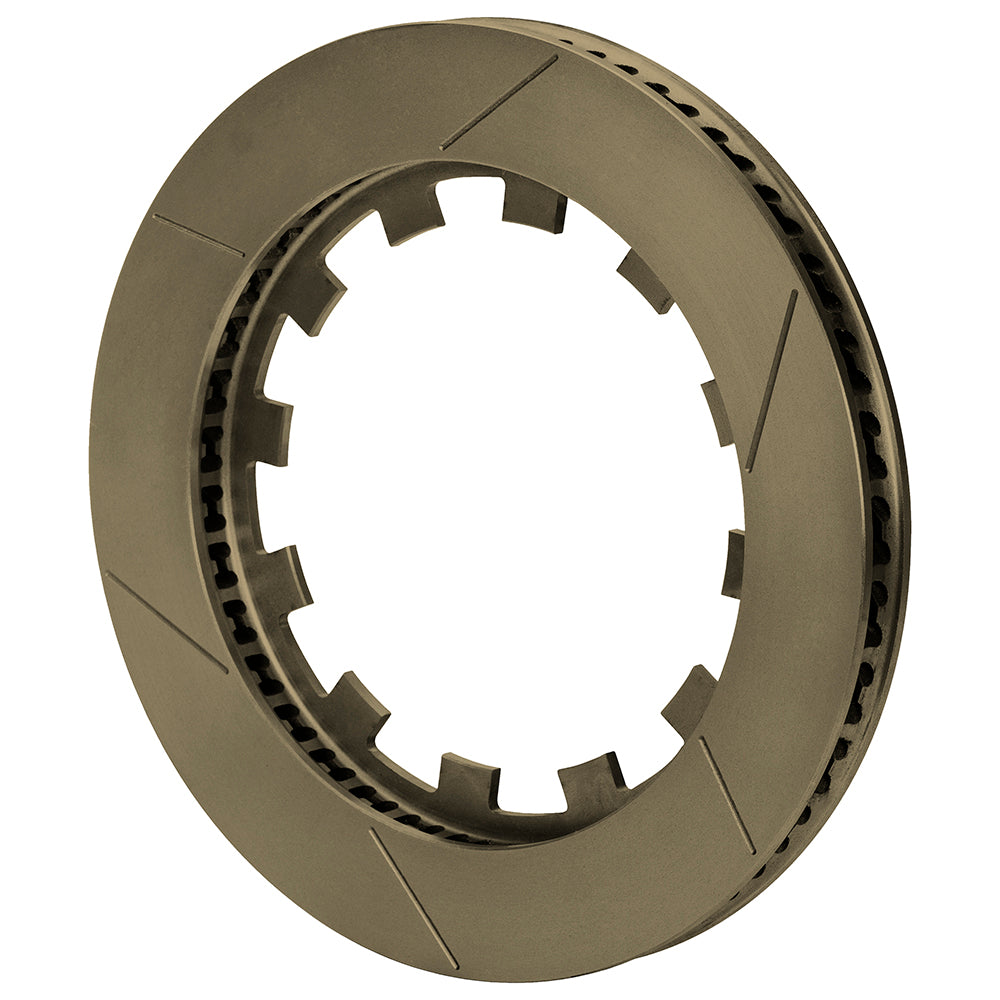

The prepared left-hand fourteen-inch GT rotor combines factory burnishing with a balanced 72-vane casting. Its dynamic attachment uses twelve lugs on the 8.80-inch interface, making the matching carrier and retainer essential installation components. Based in Camarillo, California, Wilwood Engineering was founded in 1977 by Bill Wood to design and manufacture disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Rotor selection is therefore a decision about the whole brake system and its mating parts.
Technical Details
- Manufacturer part number: 160-15874-B
- Rotor size: 14.00 inches diameter x 1.25 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 72 CV; curved
- Mounting direction: Left-hand
- Factory condition: Factory burnished yes; balanced yes
- Opposite-side component, ordered separately: 160-15873-B
- Dynamic-lug mounting interface: 12 x 8.80 inches
- Mounting interface: Lug
- Center / lug registration: 8.12 inches
- Far-side inside diameter: 10.00 inches
- Approximate component weight: 18.80 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Requires the specified dynamic-lug hat or carrier and its retaining hardware. The lugs accommodate the intended mounting movement; conventional bolt-hole hats are not interchangeable. Check the rotor's diameter, working width and registration against the complete caliper assembly. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
With more than 20 years of parts and brake-system experience, PMB Performance can help review the rotor, hat and caliper combination before you order.
