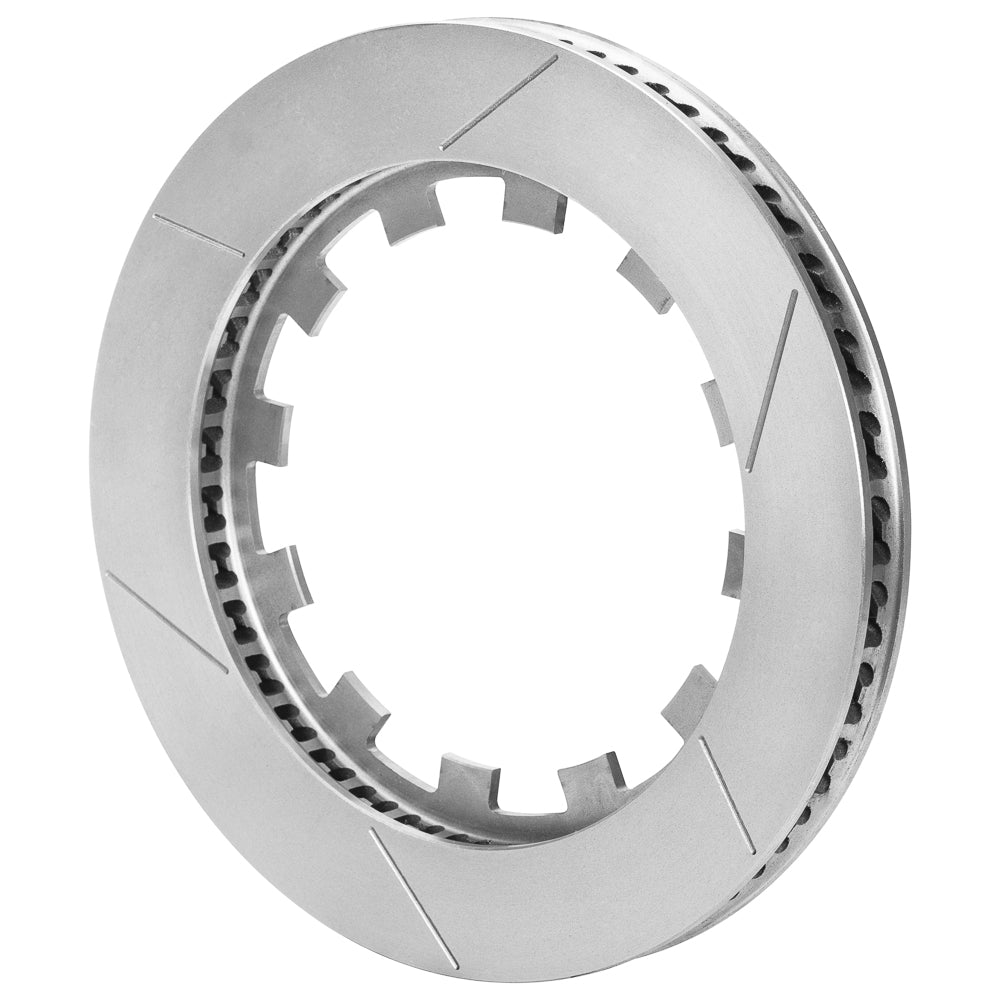

Wilwood Left GT Dynamic Lug-Mount Rotor, Plain-Finish 14.00 x 1.25-inch Spec-37 Iron

This left GT rotor supplies the unburnished fourteen-inch ring for the larger dynamic-lug assembly. Its 72 curved vanes require left-side orientation, while the 1.25-inch section and 8.12-inch register identify the correct caliper and carrier fit. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers and brake rotors work alongside its master cylinders, valves, fittings and brake lines, with each individual component selected according to the complete system's requirements.

Technical Details

• Manufacturer part number: 160-15874
• Friction dimensions: 14.00 inches diameter x 1.25 inches wide
• Construction: Spec-37 Iron
• Surface treatment: GT Slotted; Plain
• Cooling layout: 72 CV; curved
• Mounting direction: Left-hand
• Supplied preparation: Balanced: yes; factory burnished: no
• Opposite-side component, ordered separately: 160-15873
• Dynamic-lug mounting interface: 12 x 8.80 inches
• Mounting interface: Lug
• Center registration: 8.12 inches
• Far-side inside diameter: 10.00 inches
• Approximate weight: 18.80 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

For the left side of a brake designed around a fourteen-inch, 1.25-inch-wide GT ring and the 8.80-inch lug carrier. Check the specified retainer and 8.12-inch centering before fitting the rotor. Its unburnished delivery condition must be included in the pad-and-rotor preparation plan.

Manufacturer reference: Wilwood rotor specifications

PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
