Product details

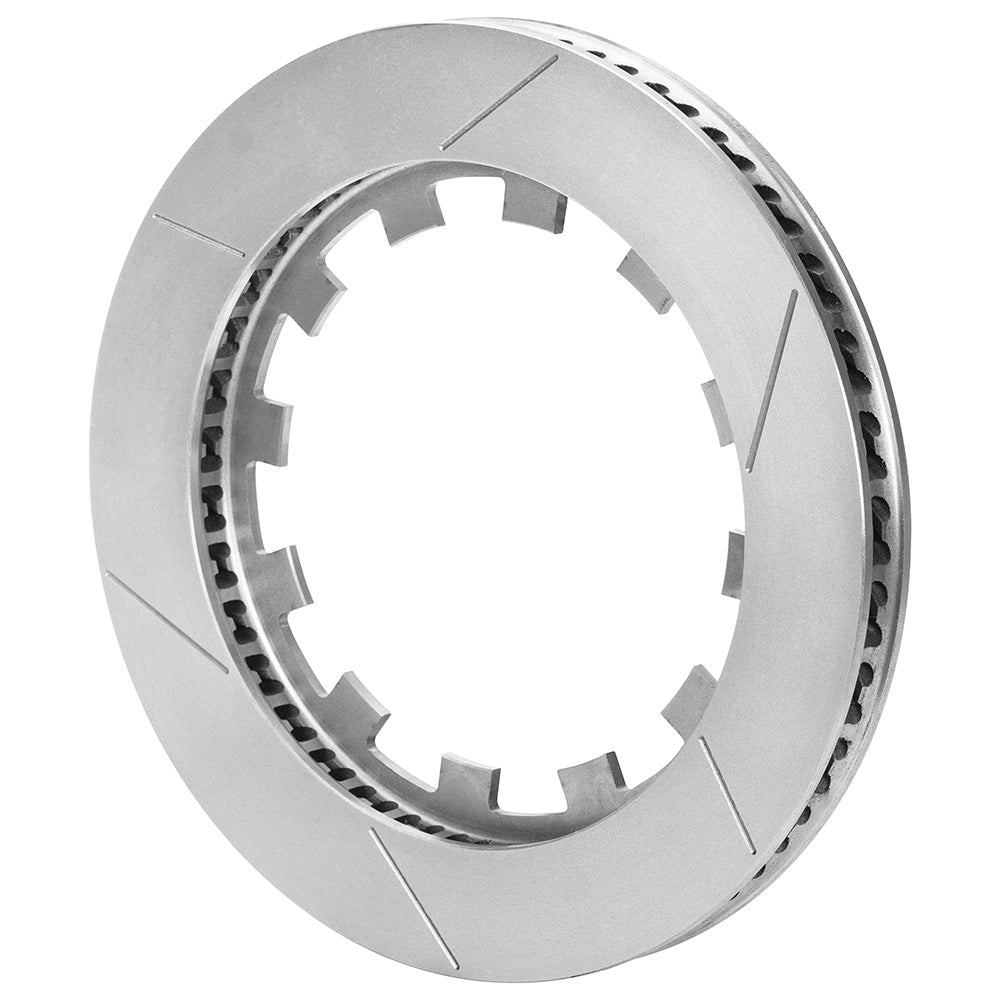

The right-hand fourteen-inch GT rotor uses 72 curved vanes around its 1.25-inch friction section. Its twelve-lug mounting engages the 8.80-inch dynamic carrier, leaving the wheel mounting and hub assembly separate. The manufacturer is Wilwood Engineering of Camarillo, California, founded by Bill Wood in 1977. It designs and manufactures disc brake systems, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Matching this component requires consideration of the complete brake system.
Technical Details
- Manufacturer part number: 160-15873
- Outside diameter / width: 14.00 inches diameter x 1.25 inches wide
- Material specification: Spec-37 Iron
- Friction surface / finish: GT Slotted; Plain
- Ventilation: 72 CV; curved
- Mounting direction: Right-hand
- Preparation: Balanced: yes; factory burnished: no
- Opposite-side component, ordered separately: 160-15874
- Dynamic-lug mounting interface: 12 x 8.80 inches
- Mounting interface: Lug
- Center registration: 8.12 inches
- Far-side inside diameter: 10.00 inches
- Approximate weight: 18.80 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Requires the specified dynamic-lug hat or carrier and its retaining hardware. The lugs accommodate the intended mounting movement; conventional bolt-hole hats are not interchangeable. Check the rotor's diameter, working width and registration against the complete caliper assembly. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
