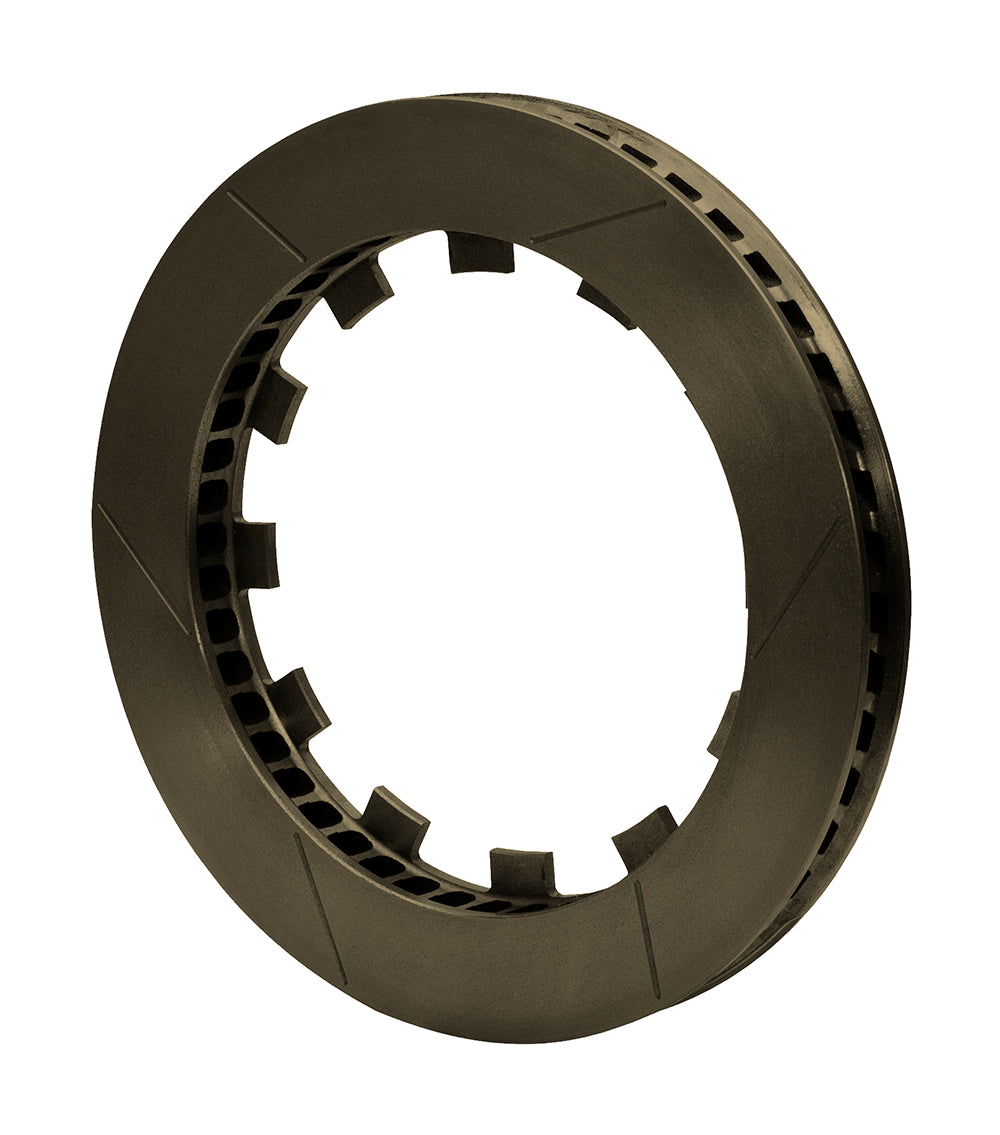

Wilwood Right Burnished GT Lug-Mount Rotor, 13.06-inch Diameter and 1.25-inch Width

Factory burnishing distinguishes the prepared right-hand version of this 13.06-inch GT ring. The 1.25-inch working section, 8.12-inch register and dynamic mounting lugs must match the same exact carrier geometry as the unburnished option. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California and designs and manufactures disc brake systems. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on selecting those parts for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 160-15871-B
• Diameter and thickness: 13.06 inches diameter x 1.25 inches wide
• Ring material: Spec-37 Iron
• Face pattern and coating: GT Slotted; Plain
• Internal layout: 48 CV; curved
• Mounting direction: Right-hand
• Balancing and burnishing: Factory burnished yes; balanced yes
• Opposite-side component, ordered separately: 160-15872-B
• Dynamic-lug mounting interface: 12 x 8.80 inches
• Mounting interface: Lug
• Center / lug registration: 8.12 inches
• Far-side inside diameter: 9.46 inches
• Approximate component weight: 12.95 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

Match this burnished right rotor to the dedicated twelve-lug carrier with 8.12-inch registration. The 13.06-inch friction ring and 1.25-inch width determine pad coverage and caliper position. Confirm the carrier's retention system rather than adapting a bolted hat of similar dimensions.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
