Product details

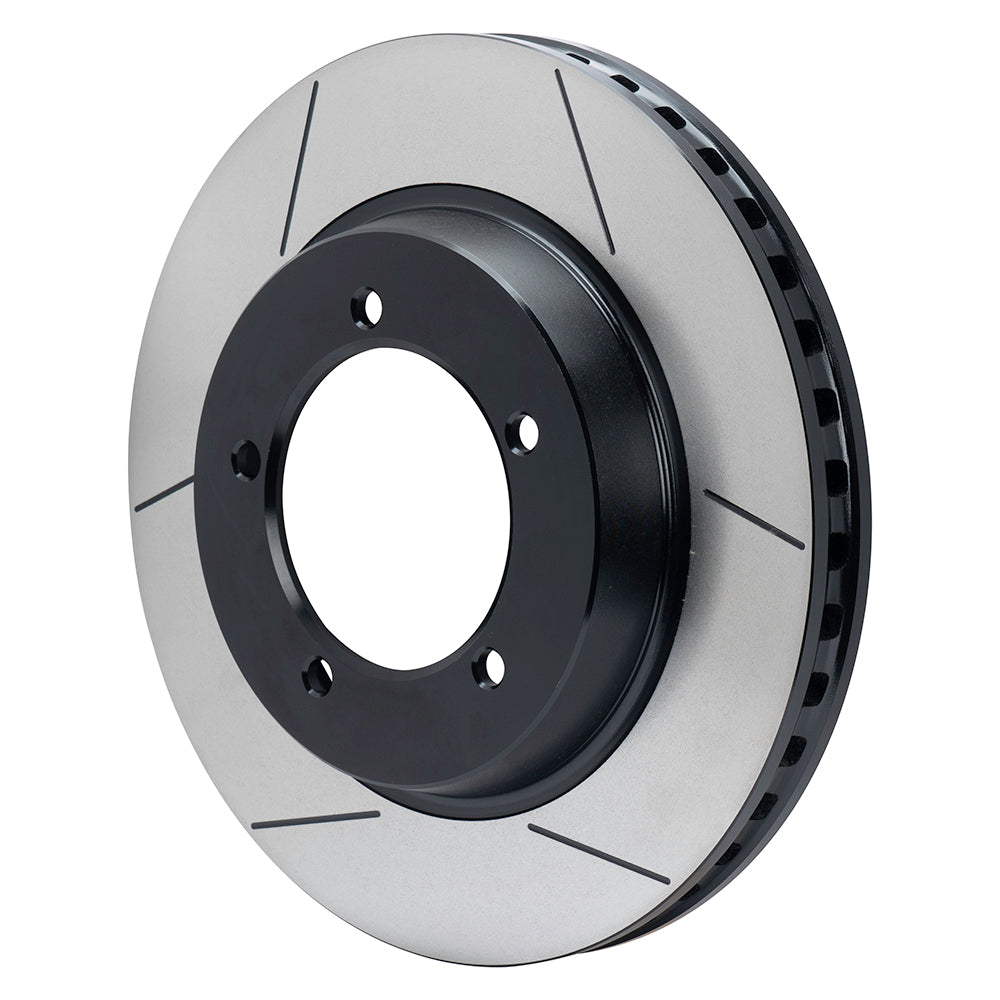

The front LC70 rotor attaches to the back of the existing hub with the specified rotor-to-hub bolts. Its 13.28-inch diameter and 1.30-inch working width serve the matching Wilwood front conversion, with the hub's wheel pattern remaining unchanged. Disc brake systems and components are the work of Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. The company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected to match the complete system.
Technical Details
- Manufacturer part number: 160-15757-GTB
- Outside diameter / width: 13.28 inches diameter x 1.30 inches wide
- Material specification: Iron
- Friction surface / finish: GT Slotted; Black electrocoat
- Ventilation: 42 vanes
- Mounting direction: Non-directional
- Preparation: Balanced: yes; factory burnished: no
- Rotor-to-hub attachment circle: 5 x 5.669 inches
- Center registration: rotor page 4.53 inches; DS-1544 drawing 4.52 inches; confirm the mating dimensions
- Far-side inside diameter: 9.25 inches
- Hat offset: 1.216 inches
- Inside clearance diameter: 7.28 inches
- Approximate weight: 23.40 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
For the matching Toyota Land Cruiser LC70 front conversion described in DS-1544. The rotor bolts to the back of the original hub using the retained rotor bolts; its five-on-5.669-inch circle is the rotor-to-hub attachment, not the vehicle wheel pattern. The page gives 4.53-inch registration and the kit drawing marks 4.52 inches; confirm the mating center before ordering.
Manufacturer reference: Wilwood rotor specifications, Installation document DS1544
For help identifying the correct replacement, share the installed brake package with PMB Performance. Our team draws on over 20 years of experience with brake components and fitment.
