Product details

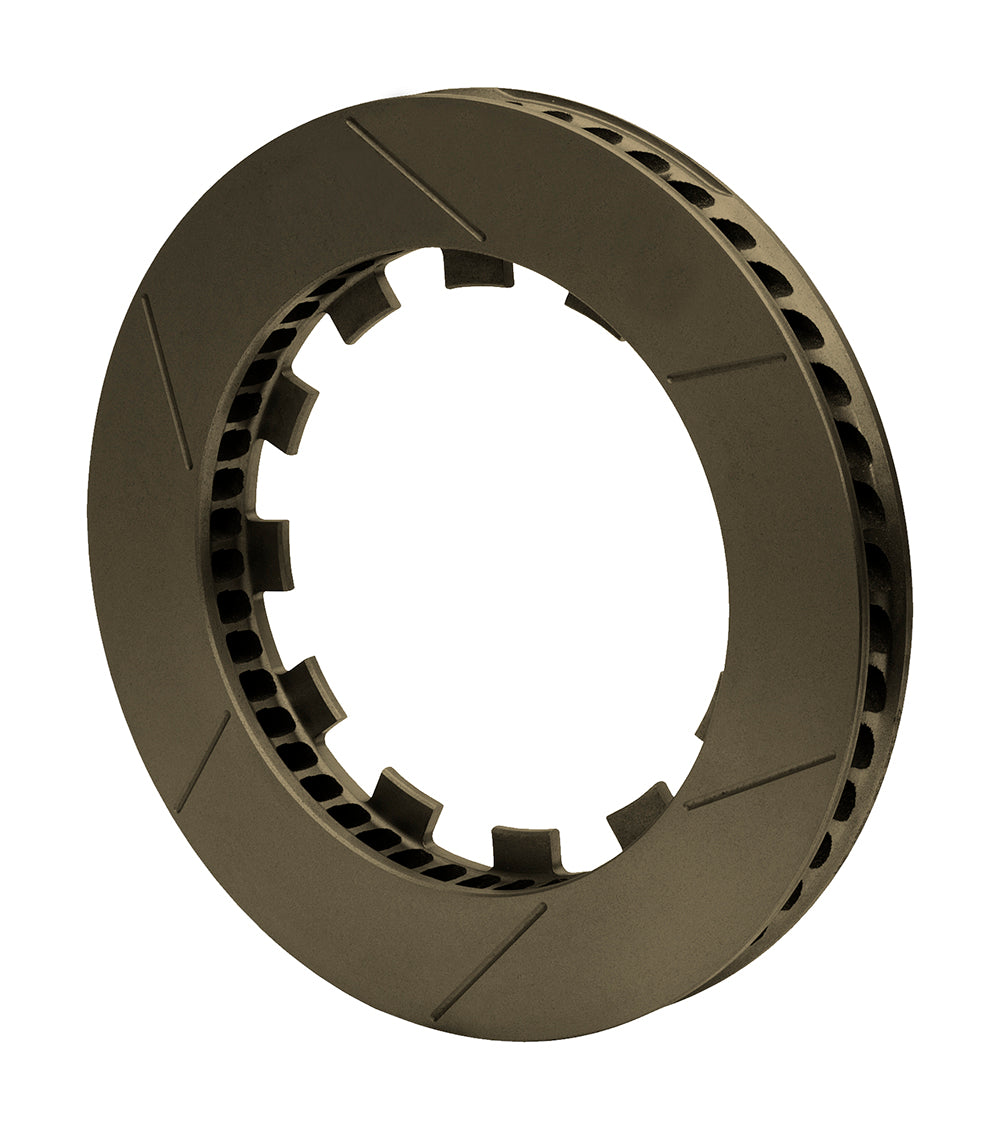

The left prepared GT ring engages the 7.77-inch dynamic carrier through twelve mounting lugs. Its 12.19 x 1.25-inch friction section is balanced and factory-burnished, with the correct hat and retaining hardware selected separately. Wilwood Engineering's disc brake systems are designed and manufactured for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood and based in Camarillo, California, the company makes calipers, brake rotors, master cylinders, valves, fittings and brake lines. These individual parts must be chosen to work within the complete braking system.
Technical Details
- Manufacturer part number: 160-15562-B
- Friction dimensions: 12.19 inches diameter x 1.25 inches wide
- Construction: Spec-37 Iron
- Surface treatment: GT Slotted; Plain
- Cooling layout: 48 CV; curved
- Mounting direction: Left-hand
- Supplied preparation: Balanced: yes; factory burnished: yes
- Opposite-side component, ordered separately: 160-15561-B
- Dynamic-lug mounting interface: 12 x 7.77 inches
- Mounting interface: Lug
- Center registration: 7.09 inches
- Far-side inside diameter: 8.31 inches
- Approximate weight: 12.70 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Requires the specified dynamic-lug hat or carrier and its retaining hardware. The lugs accommodate the intended mounting movement; conventional bolt-hole hats are not interchangeable. Check the rotor's diameter, working width and registration against the complete caliper assembly. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
