Product details

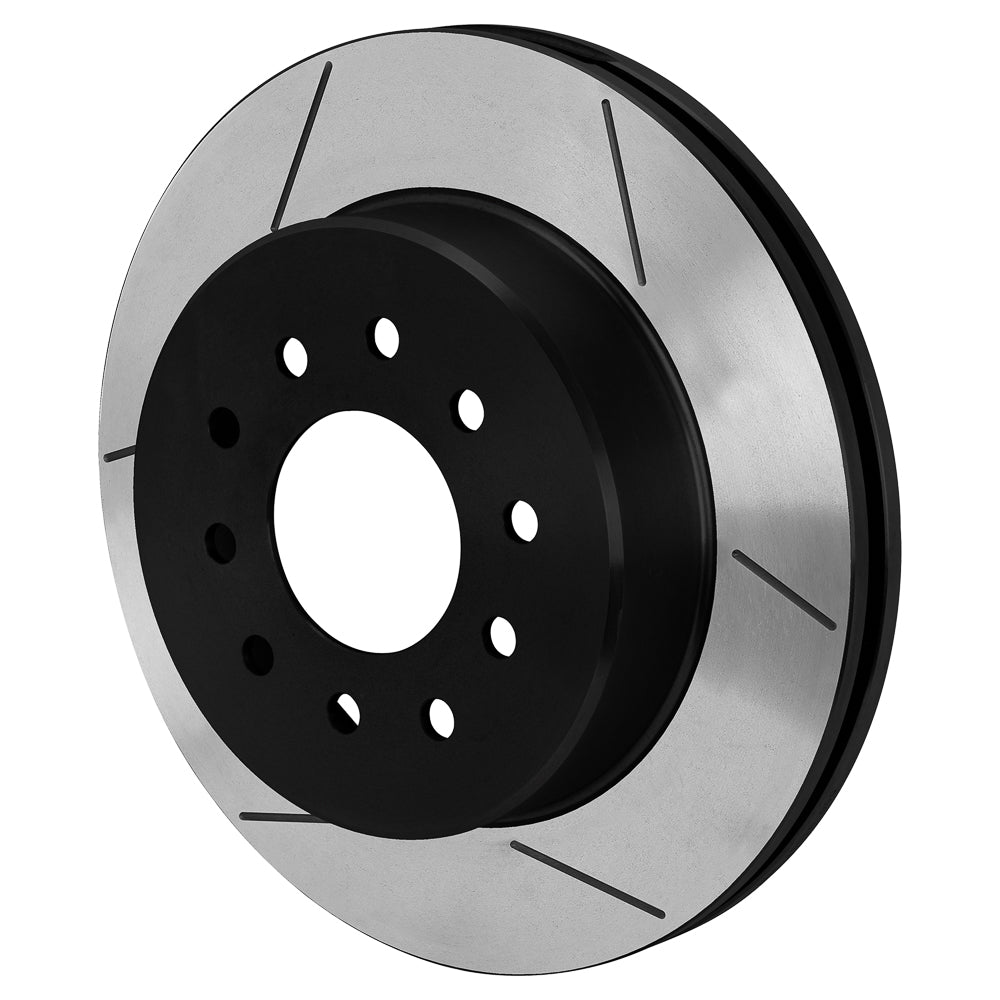

The black GTB finish and slotted face are combined with the 1.52-inch hat geometry in this casting. Its 12.19 x 1.10-inch friction ring remains non-directional, with dual five-lug clearance holes for the correctly matched hub. The manufacturer is Wilwood Engineering of Camarillo, California, founded by Bill Wood in 1977. It designs and manufactures disc brake systems, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Matching this component requires consideration of the complete brake system.
Technical Details
- Manufacturer part number: 160-15516-GTB
- Outside diameter / width: 12.19 inches diameter x 1.10 inches wide
- Material specification: Iron
- Friction surface / finish: GT Slotted; Black electrocoat
- Ventilation: 32 vanes; straight
- Mounting direction: Non-directional
- Preparation: Balanced: yes; factory burnished: no
- Hat wheel-stud clearance pattern: 5 x 4.75/5.00 inches
- Stud clearance-hole sizes: 0.52 inches
- Center registration: 3.06 inches
- Far-side inside diameter: 8.34 inches
- Hat offset: 1.520 inches
- Inside clearance diameter: 7.11 inches
- Hat mounting-face thickness: 0.25 inches
- Approximate weight: 18.79 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
Front replacement rotor for the matching 1963–1987 Chevrolet C10 conversion using the specified Wilwood ProSpindle and five-lug hub. DS-1365 requires the correct later ball joints for earlier trucks and later tie-rod ends for 1971–1972 applications. The 1.52-inch hat and dual clearance patterns do not make this a stock-spindle replacement.
Manufacturer reference: Wilwood rotor specifications, Installation document DS1365
Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
