Product details

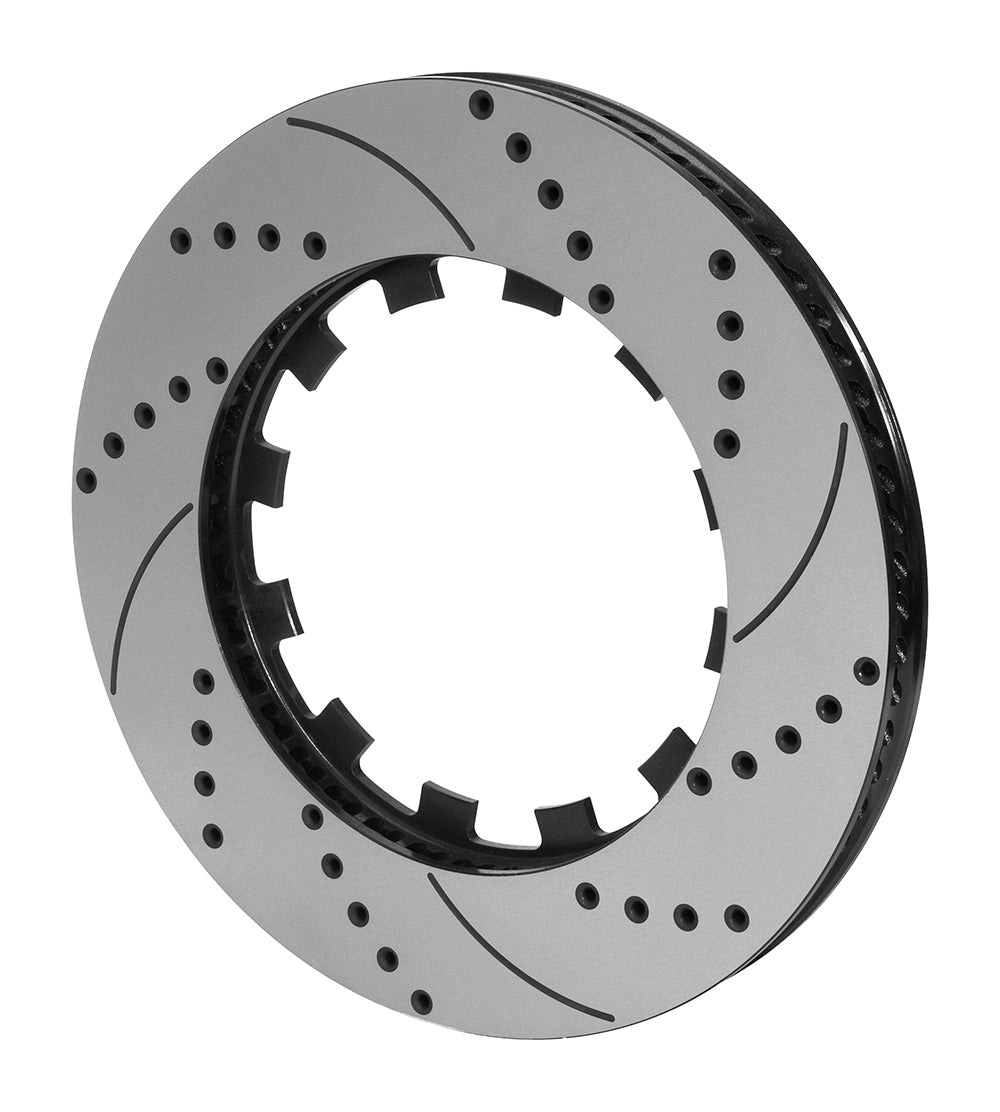

This left-hand SRP ring is supplied as the friction component for the 8.80-inch dynamic-lug mounting system. The black-coated Spec-37 casting carries 72 curved vanes, with its fifteen-inch diameter requiring the appropriate caliper placement. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers and brake rotors work alongside its master cylinders, valves, fittings and brake lines, with each individual component selected according to the complete system's requirements.
Technical Details
- Manufacturer part number: 160-15330-BK
- Outside diameter / width: 15.00 inches diameter x 1.25 inches wide
- Material specification: Spec-37 Iron
- Friction surface / finish: SRP Drilled & Slotted; Black electrocoat
- Ventilation: 72 CV
- Mounting direction: Left-hand
- Preparation: Balanced: yes; factory burnished: no
- Opposite-side component, ordered separately: 160-15329-BK
- Dynamic-lug mounting interface: 12 x 8.80 inches
- Mounting interface: Lug
- Center registration: 8.12 inches
- Far-side inside diameter: 9.65 inches
- Approximate weight: 23.00 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Requires the specified dynamic-lug hat or carrier and its retaining hardware. The lugs accommodate the intended mounting movement; conventional bolt-hole hats are not interchangeable. Check the rotor's diameter, working width and registration against the complete caliper assembly. Wilwood specifies the SRP face treatment for street and moderate-temperature race duty; severe sustained racing calls for evaluation of the corresponding HD or GT option.
