Product details

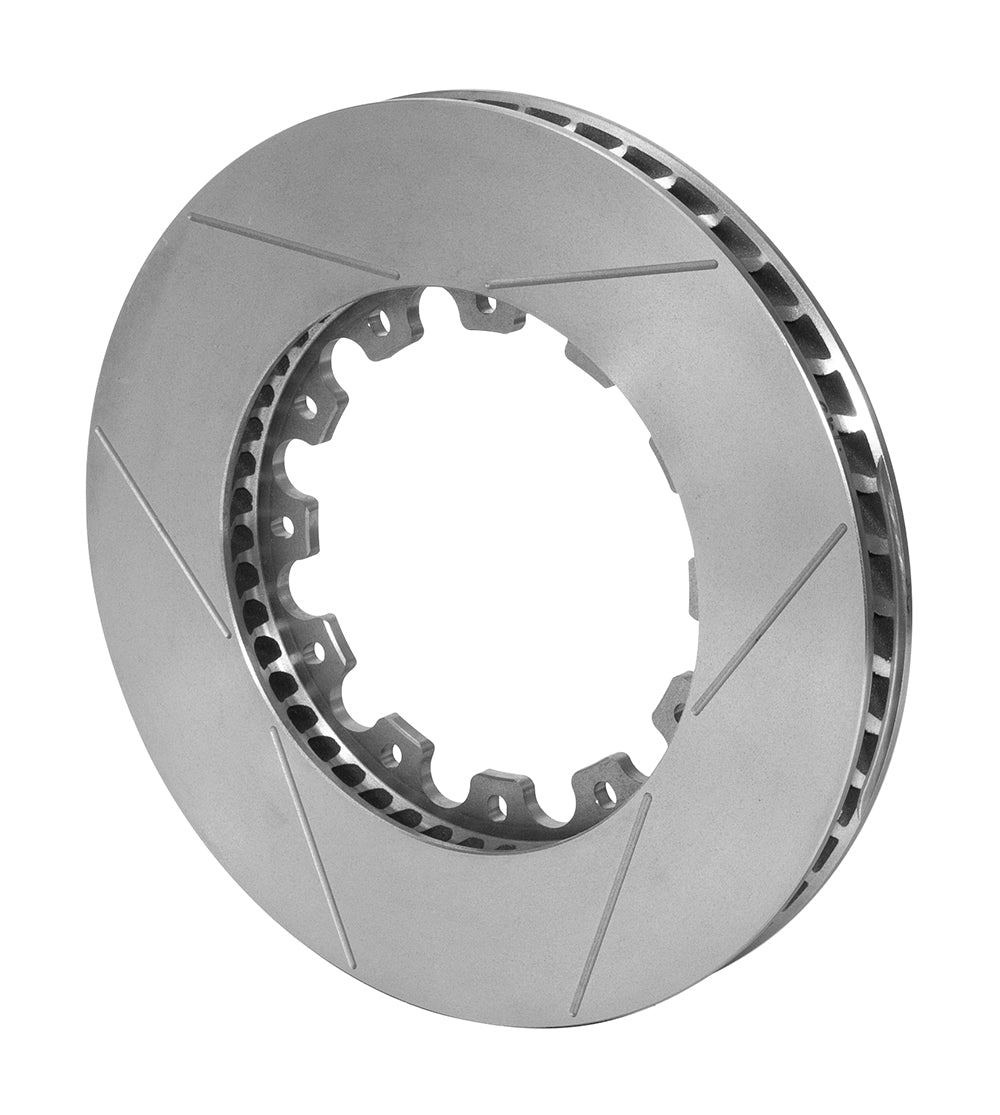

The compact twelve-on-7.15-inch attachment distinguishes this right-hand GT rotor from larger-register designs. Its 12.91-inch diameter and 1.26-inch width must both match the brake assembly, with GT slots on the plain-finish Spec-37 ring. Based in Camarillo, California, Wilwood Engineering was founded in 1977 by Bill Wood to design and manufacture disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Rotor selection is therefore a decision about the whole brake system and its mating parts.
Technical Details
- Manufacturer part number: 160-15256
- Rotor size: 12.91 inches diameter x 1.26 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 48 CV; curved
- Mounting direction: Right-hand
- Factory condition: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-15257
- Rotor-to-hat/hub attachment circle: 12 x 7.15 inches
- Attachment hole size or thread: 0.316 inches
- Center / lug registration: 6.33 inches
- Far-side inside diameter: 7.88 inches
- Approximate component weight: 18.00 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
The 1.26-inch working width must suit the caliper, while the hat centers the ring on its 6.33-inch register. Check the 12 x 7.15-inch attachment and radial pad coverage before installation. Vehicle make or wheel pattern alone cannot identify a replacement rotor ring. The listed duty is street use through moderate-temperature competition.
Manufacturer reference: Wilwood rotor specifications
With more than 20 years of parts and brake-system experience, PMB Performance can help review the rotor, hat and caliper combination before you order.
