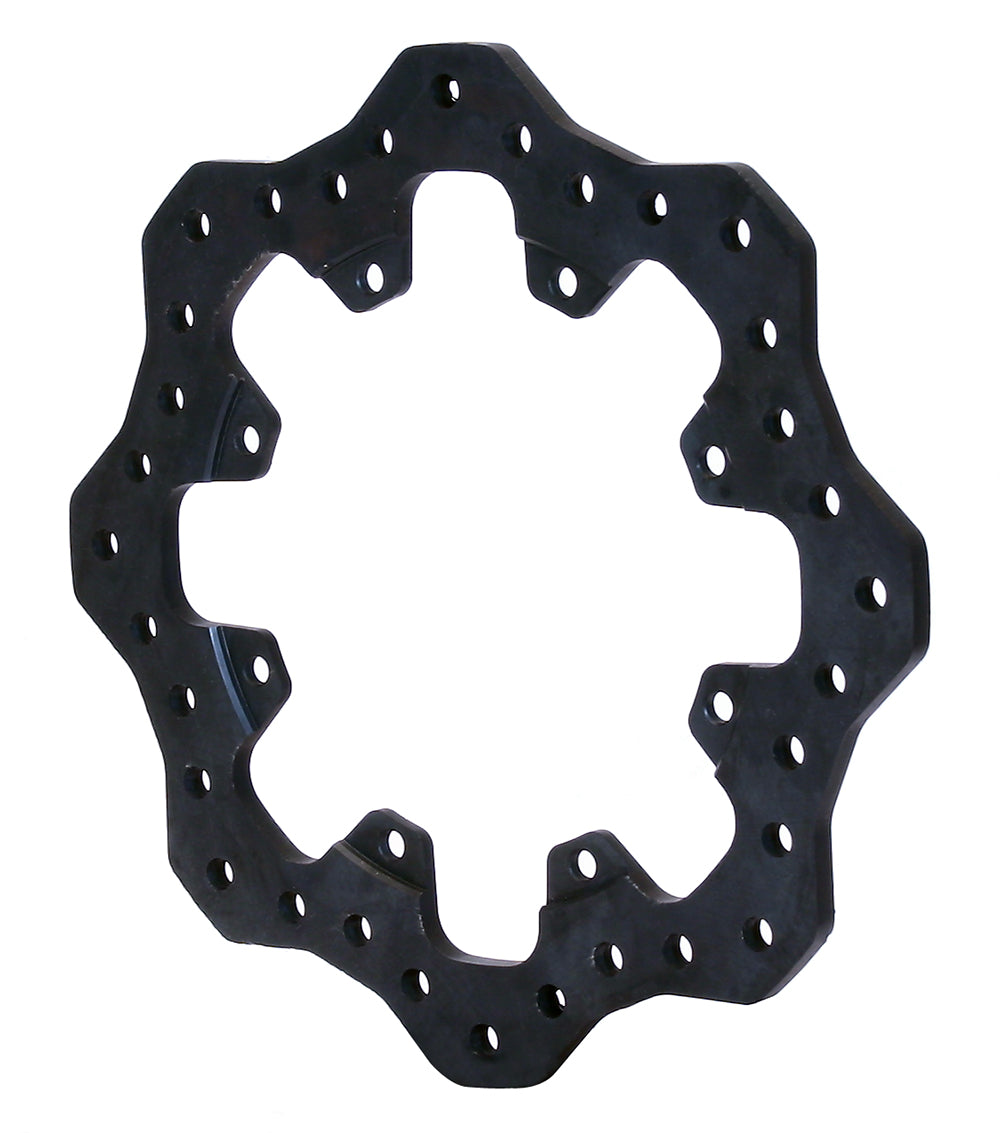

Wilwood Scalloped Drilled Steel Racing Rotor, 11.44 x 0.25-inch, Black Oxide

The scalloped outline reduces material around this thin 0.25-inch steel rotor. Drilled faces and black oxide finish identify the 11.44-inch configuration intended for selected drag or dirt racing duties rather than street service. The manufacturer is Wilwood Engineering of Camarillo, California, founded by Bill Wood in 1977. It designs and manufactures disc brake systems, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Matching this component requires consideration of the complete brake system.

Technical Details

• Manufacturer part number: 160-15011
• Outside diameter / width: 11.44 inches diameter x 0.25 inches wide
• Material specification: Steel
• Friction surface / finish: Drilled; Black Oxide
• Ventilation: Solid, unvented
• Mounting direction: Non-directional
• Preparation: Balanced: no; factory burnished: no
• Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
• Attachment hole size or thread: 0.326 inches
• Center registration: 6.38 inches
• Approximate weight: 3.20 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

Choose this scalloped 0.25-inch steel ring only for a matching drag or dirt race assembly with low to moderate sustained temperatures and intermittent heat spikes. The eight-on-7.00-inch attachment is a rotor mount, not a wheel pattern. Not for street use.

Manufacturer reference: Wilwood rotor specifications

Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
