Product details

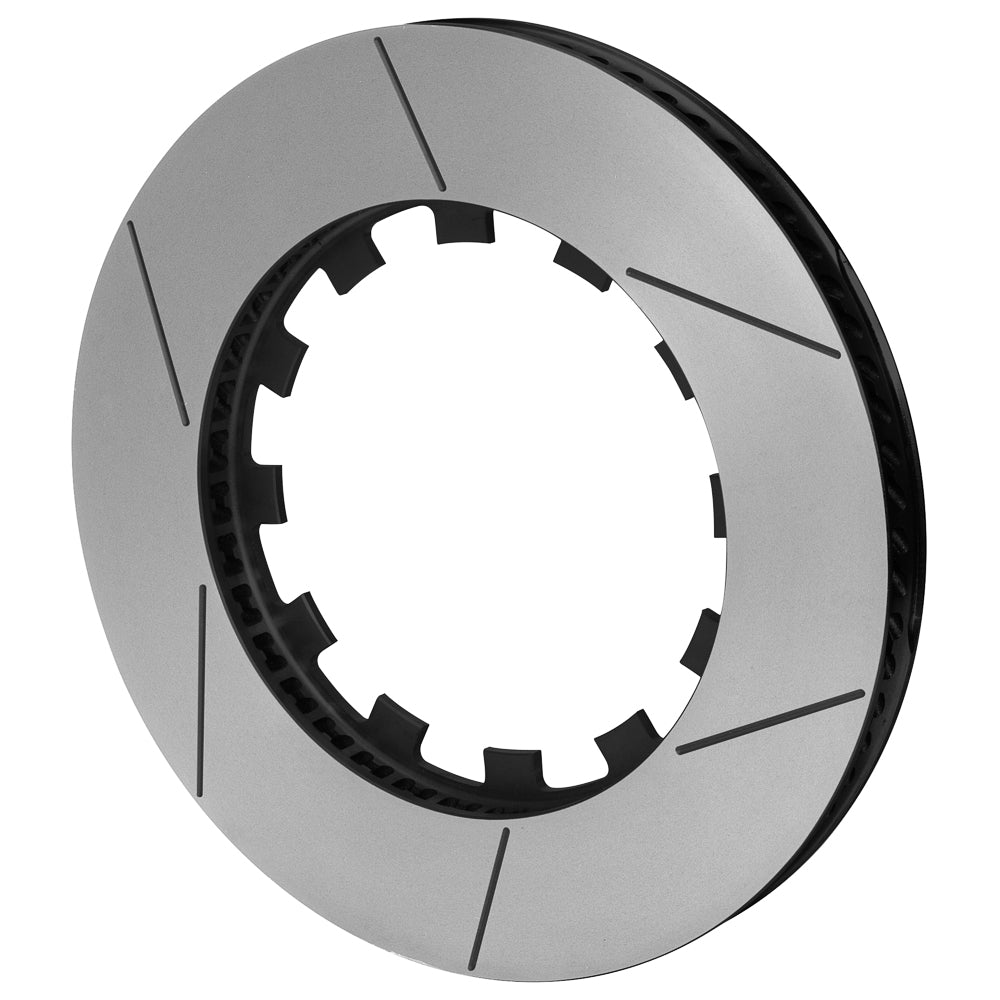

This left GTB rotor is the fifteen-inch, 1.25-inch-width member of the larger dynamic-lug family. The 8.80-inch interface and 8.12-inch registration define its mounting geometry independently of any wheel-bolt circle. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc brake systems and their calipers, brake rotors, master cylinders, valves, fittings and brake lines. Across motorsport, street-performance and specialized applications, these components must be matched as parts of a complete braking system.
Technical Details
- Manufacturer part number: 160-14918-GTB
- Friction dimensions: 15.00 inches diameter x 1.25 inches wide
- Construction: Spec-37 Iron
- Surface treatment: GT Slotted; Black electrocoat
- Cooling layout: 72 CV; curved
- Mounting direction: Left-hand
- Supplied preparation: Balanced: yes; factory burnished: no
- Opposite-side component, ordered separately: 160-14917-GTB
- Dynamic-lug mounting interface: 12 x 8.80 inches
- Mounting interface: Lug
- Center registration: 8.12 inches
- Far-side inside diameter: 9.65 inches
- Approximate weight: 23.00 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Requires the specified dynamic-lug hat or carrier and its retaining hardware. The lugs accommodate the intended mounting movement; conventional bolt-hole hats are not interchangeable. Check the rotor's diameter, working width and registration against the complete caliper assembly. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
Choosing a rotor involves more than its outside diameter. PMB Performance's 20-plus years of brake and parts experience can help you check the component against your existing assembly.
