Product details

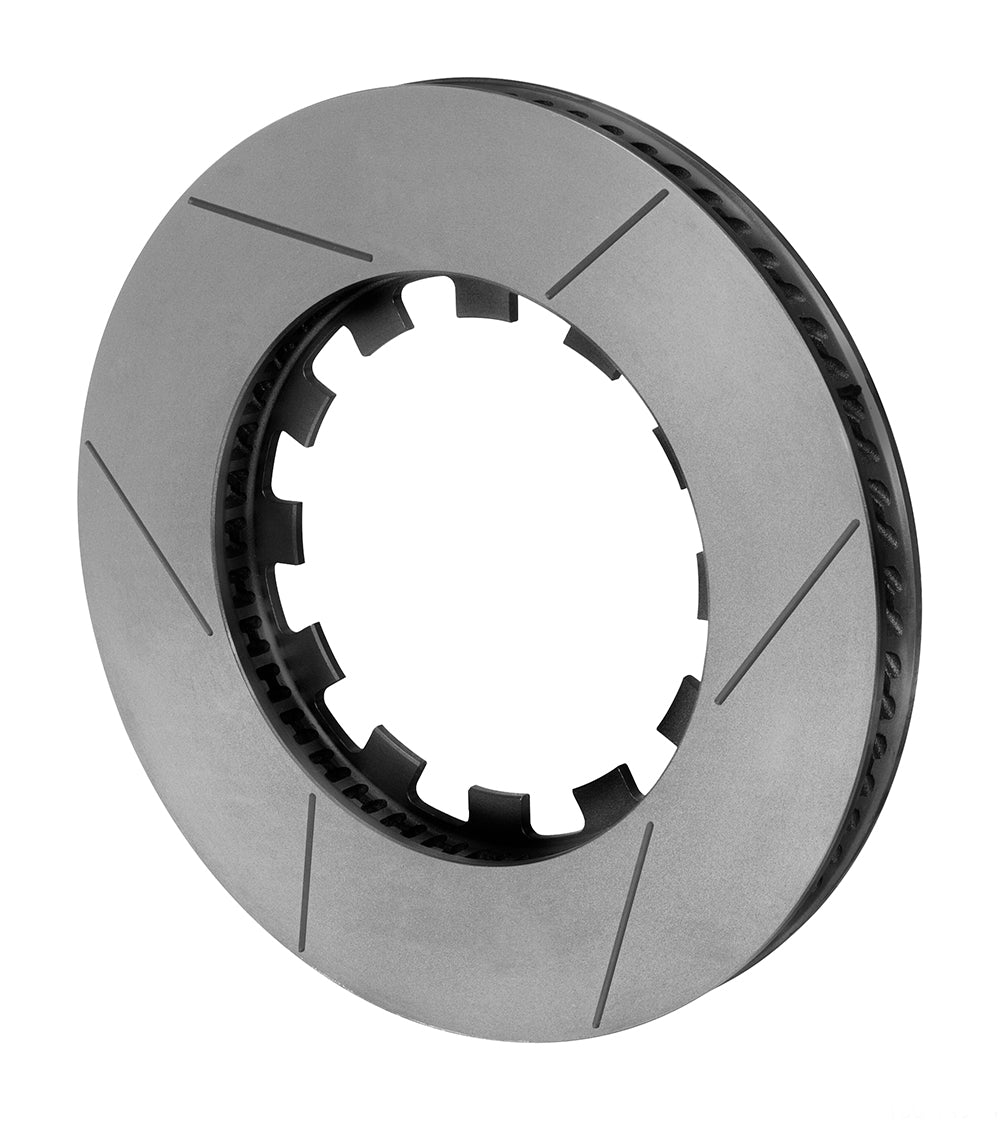

This right GTB ring uses a twelve-lug dynamic interface instead of a conventional bolted rotor flange. The 14.00 x 1.25-inch Spec-37 casting requires the matching 7.77-inch lug carrier and retention hardware to allow the intended mounting movement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized components are selected around the requirements of the whole braking system.
Technical Details
- Manufacturer part number: 160-14915-GTB
- Rotor size: 14.00 inches diameter x 1.25 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Black electrocoat
- Vanes: 72 CV; curved
- Mounting direction: Right-hand
- Factory condition: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-14916-GTB
- Dynamic-lug mounting interface: 12 x 7.77 inches
- Mounting interface: Lug
- Center / lug registration: 7.09 inches
- Far-side inside diameter: 8.63 inches
- Approximate component weight: 22.00 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Requires the specified dynamic-lug hat or carrier and its retaining hardware. The lugs accommodate the intended mounting movement; conventional bolt-hole hats are not interchangeable. Check the rotor's diameter, working width and registration against the complete caliper assembly. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
With more than 20 years of parts and brake-system experience, PMB Performance can help review the rotor, hat and caliper combination before you order.
