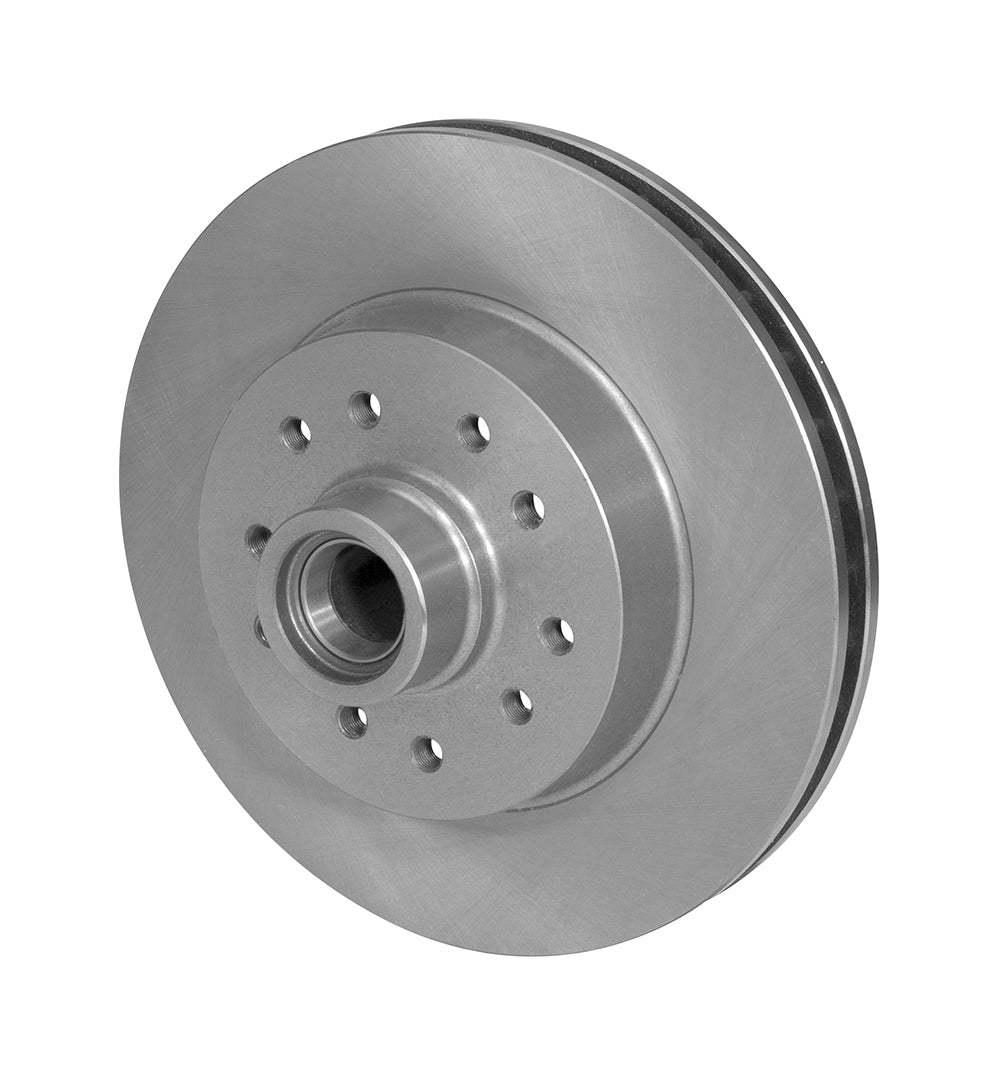

Wilwood Front Chevrolet C10 Conversion Hub Rotor, Plain 11.86-inch, Without Studs

This Chevrolet C10 conversion component combines the wheel hub with a plain 11.86-inch friction ring and is supplied without wheel studs. Its dual five-lug patterns and 1.25-inch width must match the spindle, bearings and caliper brackets; the published application years require confirmation. Wilwood Engineering's disc brake systems are designed and manufactured for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood and based in Camarillo, California, the company makes calipers, brake rotors, master cylinders, valves, fittings and brake lines. These individual parts must be chosen to work within the complete braking system.

Technical Details

• Manufacturer part number: 160-14379
• Friction dimensions: 11.86 inches diameter x 1.25 inches wide
• Construction: Iron
• Surface treatment: Plain Face; Plain
• Cooling layout: Vented
• Mounting direction: Non-directional
• Supplied preparation: Balanced: no; factory burnished: no
• Hub wheel-stud pattern: 5 x 4.75/5.00 inches
• Wheel-stud nominal diameter: 0.5 inches
• Far-side inside diameter: 8.04 inches
• Approximate weight: 28.75 lb
• Quantity: one integrated hub-and-rotor component without wheel studs; studs, bearings, calipers, pads and conversion hardware are separate

Fitment & Compatibility

For the corresponding Chevrolet C10 front brake conversion. Wilwood's rotor page identifies 1960–1970, while its part-search ordering description identifies 1964–1970; confirm the actual spindle and kit before ordering. Select the appropriate five-on-4.75- or five-on-5.00-inch wheel pattern and match bearings and caliper brackets. Wheel studs are supplied separately.

Manufacturer reference: Wilwood rotor specifications, Wilwood application information

PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
