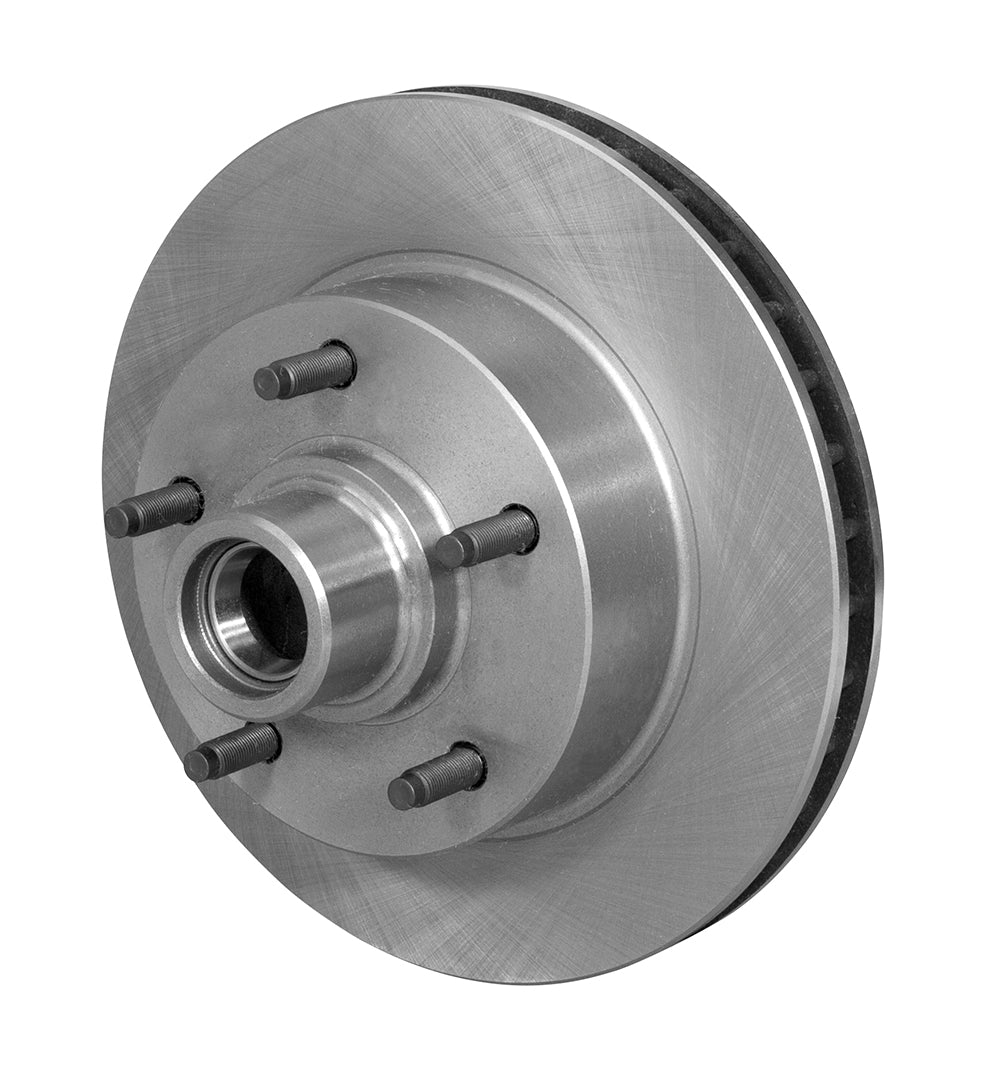

Wilwood Front HP Hub and Rotor for Ford F-1/F-100 1948–1956 Conversions, 11.72-inch

This front hub-and-rotor assembly supplies a one-piece iron alternative for the matching 1948–1956 Ford pickup brake conversion. Its 11.72-inch friction diameter, 1.19-inch width and five-on-5.50-inch wheel pattern must be paired with the correct spindle bearings and brackets. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications; each part must suit the complete brake system.

Technical Details

• Manufacturer part number: 160-14187
• Friction dimensions: 11.72 inches diameter x 1.19 inches wide
• Construction: Iron
• Surface treatment: Plain Face; Plain
• Cooling layout: Vented
• Mounting direction: Non-directional
• Supplied preparation: Balanced: no; factory burnished: no
• Hub wheel-stud pattern: 5 X 5.50 inches
• Wheel-stud nominal diameter: 0.5 inches
• Far-side inside diameter: 6.65 inches
• Approximate weight: 28.15 lb
• Quantity: one integrated hub-and-rotor component; the complete brake conversion, calipers, pads and bearings are not supplied as a kit

Fitment & Compatibility

For the corresponding 1948–1956 Ford F-1/F-100 pickup front conversion. Confirm spindle condition, bearing sizes and bracket fit against the complete kit, as a matching five-on-5.50-inch wheel pattern does not establish hub compatibility. Replacement wheel stud: Wilwood 230-18042.

Manufacturer reference: Wilwood rotor specifications, Wilwood application information

PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
