Product details

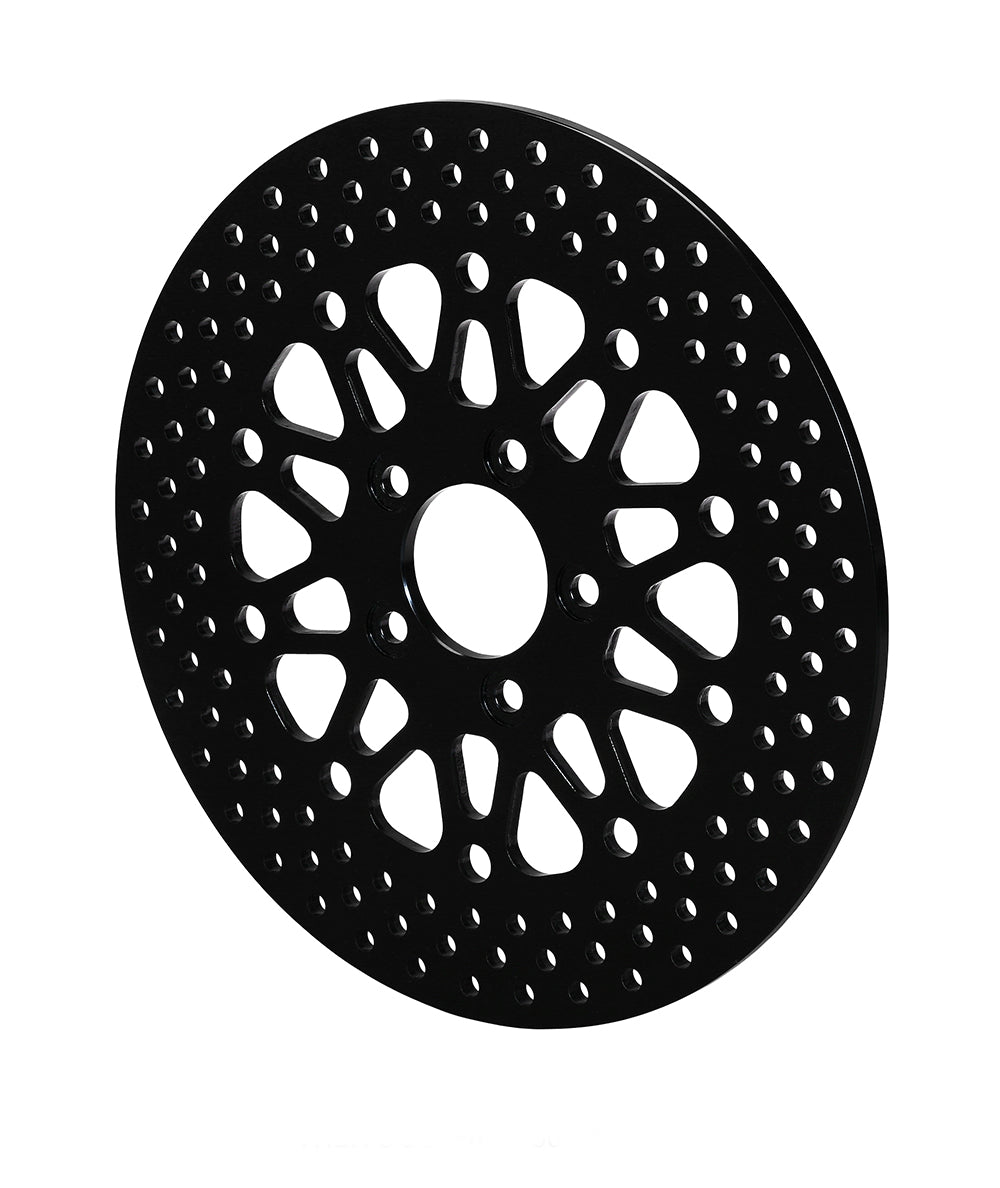

Black electrocoat covers the stainless rear rotor intended for matching 2008-up Harley-Davidson brakes. Its 11.80-inch diameter and rear-specific thickness should be checked together, rather than replacing a front rotor solely because its mounting circle matches. The manufacturer is Wilwood Engineering of Camarillo, California, founded by Bill Wood in 1977. It designs and manufactures disc brake systems, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Matching this component requires consideration of the complete brake system.
Technical Details
- Manufacturer part number: 160-14087-BK
- Outside diameter / width: 11.80 inches diameter x 0.28 inches wide
- Material specification: Stainless
- Friction surface / finish: Drilled; Black electrocoat
- Ventilation: Solid, unvented
- Mounting direction: Non-directional
- Preparation: Balanced: no; factory burnished: no
- Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
- Attachment hole size or thread: 0.413 inches
- Center registration: 2.22 inches
- Approximate weight: 6.10 lb
- Quantity: one motorcycle rotor; mounting fasteners and pads are separate
Fitment & Compatibility
Use this black-finished rotor on the matching later Harley rear system. In addition to 11.80-inch diameter, measure the rear working width and 2.22-inch center; the front rotor's narrower section is a separate configuration. Pads and mounting screws are selected for the actual motorcycle.
Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions
Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
