Product details

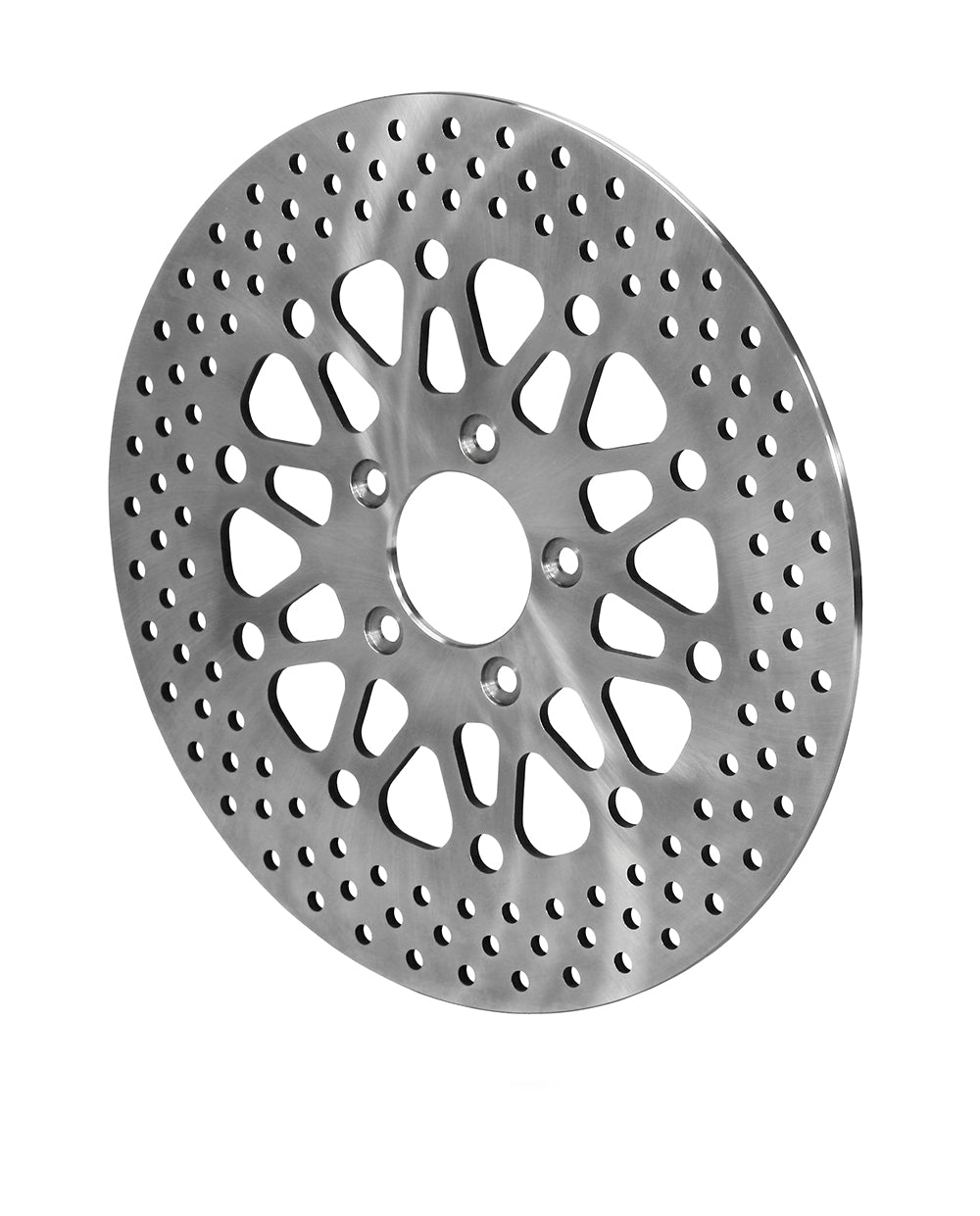

The rear 11.80-inch motorcycle rotor has a thicker friction section than the front member of the family. Satin stainless construction, 0.413-inch attachment holes and a 2.22-inch center define this matching later Harley-Davidson rear application. Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California, designs and manufactures disc brake systems. Its component range spans brake rotors and calipers alongside master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The complete brake system governs which components belong together.
Technical Details
- Manufacturer part number: 160-14087
- Rotor size: 11.80 inches diameter x 0.28 inches wide
- Rotor material: Stainless
- Face and finish: Drilled; Satin
- Vanes: Solid, unvented
- Mounting direction: Non-directional
- Factory condition: Factory burnished no; balanced no
- Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
- Attachment hole size or thread: 0.413 inches
- Center / lug registration: 2.22 inches
- Approximate component weight: 6.10 lb
- Quantity: one motorcycle rotor; mounting fasteners and pads are separate
Fitment & Compatibility
Confirm an 11.80-inch rear brake on the 2008-up Harley-Davidson, including the thicker rear section and 0.413-inch attachment holes. The five-on-3.25-inch mount is shared with other sizes, so it cannot identify compatibility by itself. Retain the correct rear caliper and matched pads.
Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions
