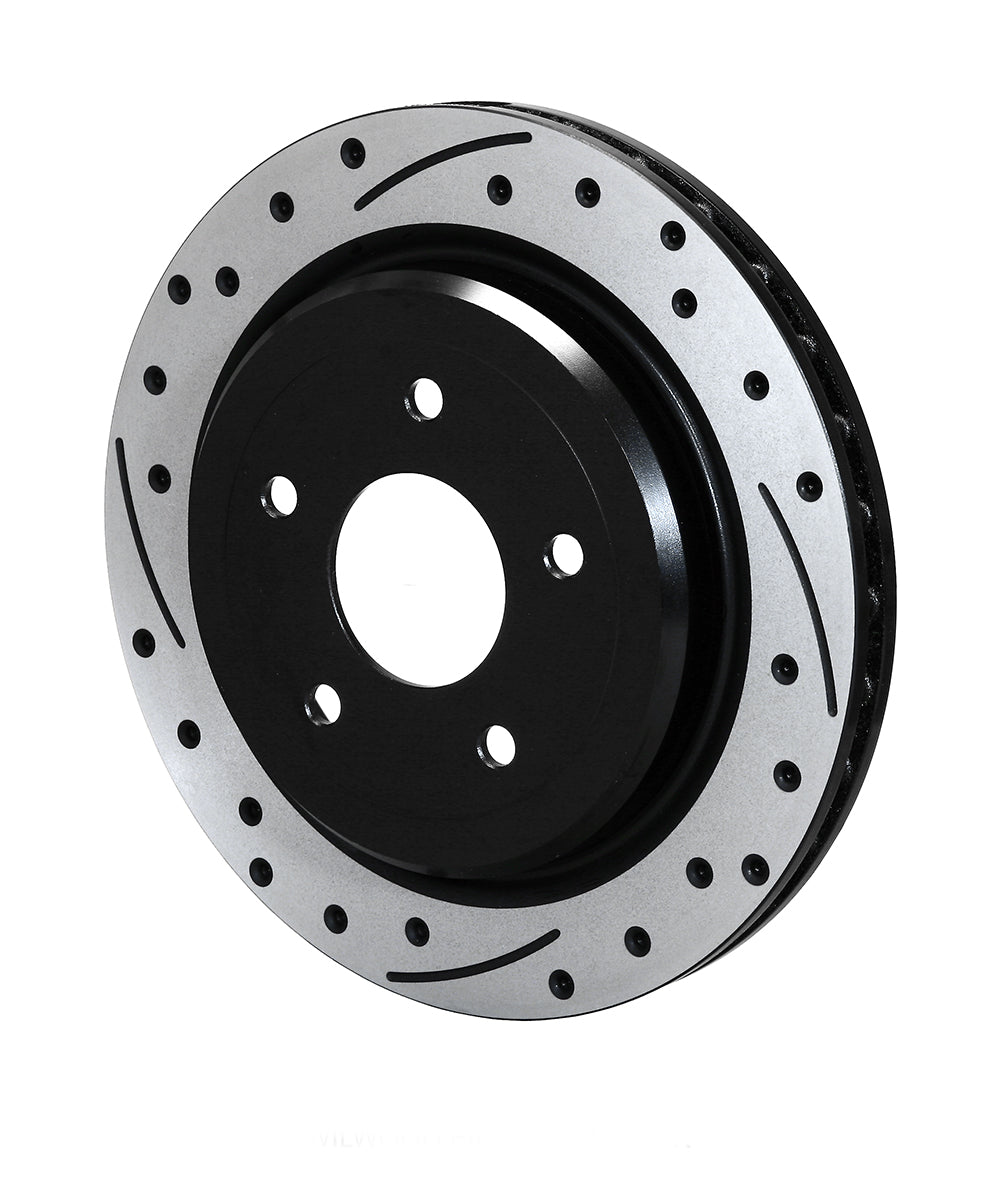

Wilwood Rear Left Black Dimpled Rotor, Corvette 1997–2004 C5 / 2005–2013 C6 Base

The left rear rotor retains the Corvette's internal parking-brake arrangement in a one-piece iron casting. Its directional SRP dimples and slots suit the matching C5 or base C6 rear brake geometry, with the original system checked before replacement. Disc brake systems and components are the work of Wilwood Engineering, founded by Bill Wood in 1977 and based in Camarillo, California. The company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications, with each component selected to match the complete system.

Technical Details

• Manufacturer part number: 160-14041-BK
• Outside diameter / width: 12.01 inches diameter x 1.03 inches wide
• Material specification: Iron
• Friction surface / finish: SRP Dimpled & Slotted; Black electrocoat
• Ventilation: Vented
• Mounting direction: Left-hand
• Preparation: Balanced: no; factory burnished: no
• Opposite-side component, ordered separately: 160-14040-BK
• Hat wheel-stud clearance pattern: 5 x 4.75 inches
• Stud clearance-hole sizes: 0.52 inches
• Center registration: 2.78 inches
• Far-side inside diameter: 8.80 inches
• Hat offset: 0.590 inches
• Internal parking-drum diameter: 7.48 inches
• Inside clearance diameter: 6.17 inches
• Hat mounting-face thickness: 0.25 inches
• Approximate weight: 16.20 lb
• Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included

Fitment & Compatibility

For the original rear brake configuration on 1997–2004 Corvette C5 and 2005–2013 Corvette C6 base models. C6 Z06 and Z51 systems are excluded; other enlarged-brake configurations require their own rotor. Check the internal parking drum and OE hub dimensions. The dimpled face is not through-drilled.

Manufacturer reference: Wilwood rotor specifications, Installation document DS541
