Product details

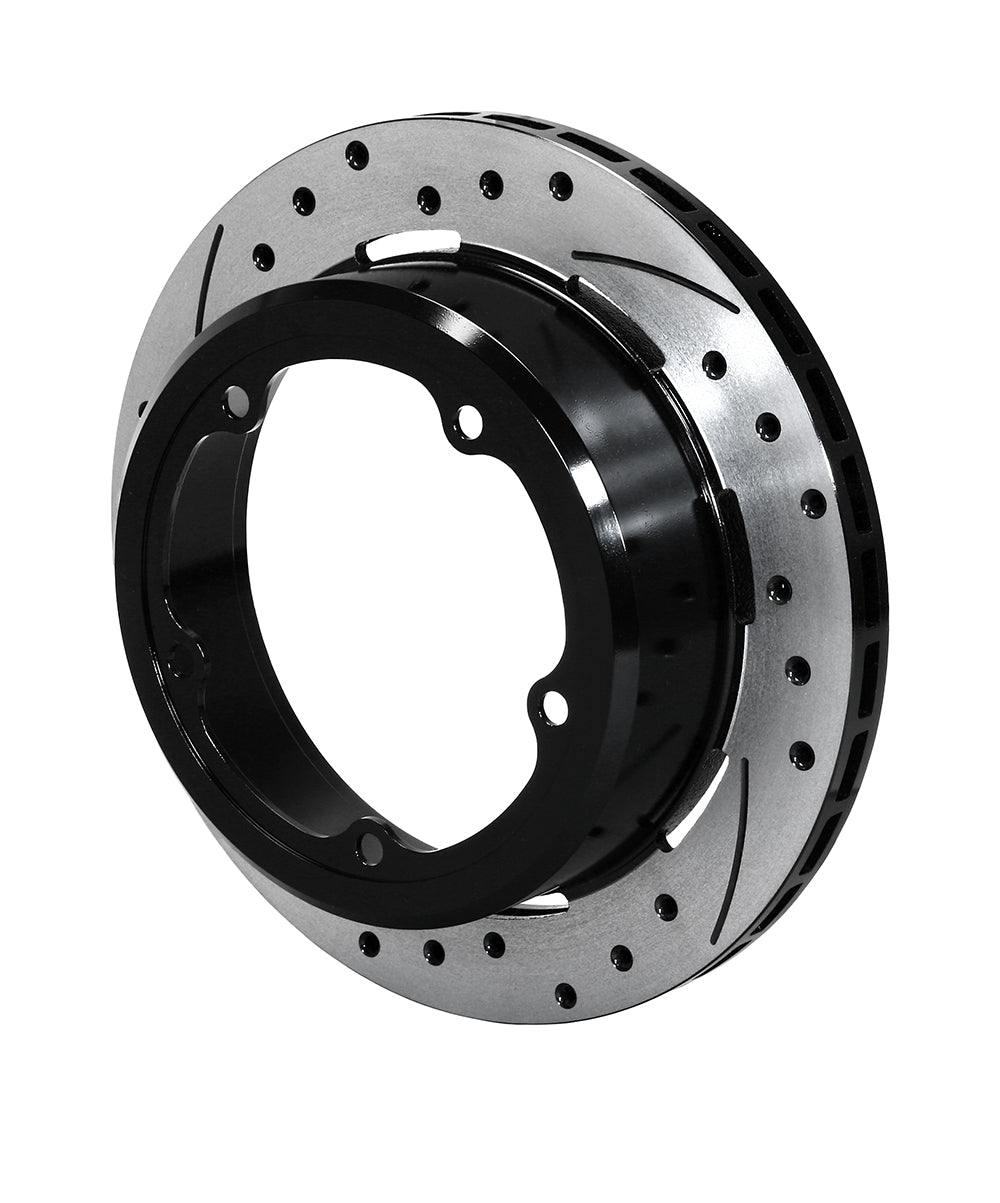

For the left side of the matching floating-hub rear system, this SRP rotor adds drilling and slots to the 11.00-inch ring. Its 5.00-inch center and specialized attachment distinguish it from a standard five-lug wheel-clearance rotor. Wilwood Engineering's disc brake systems are designed and manufactured for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood and based in Camarillo, California, the company makes calipers, brake rotors, master cylinders, valves, fittings and brake lines. These individual parts must be chosen to work within the complete braking system.
Technical Details
- Manufacturer part number: 160-13955-BK
- Friction dimensions: 11.00 inches diameter x 0.81 inches wide
- Construction: Iron
- Surface treatment: SRP Drilled & Slotted; Black electrocoat
- Cooling layout: 32 vanes
- Mounting direction: Left-hand
- Supplied preparation: Balanced: no; factory burnished: no
- Opposite-side component, ordered separately: 160-13954-BK
- Rotor-to-hub attachment circle: 5 x 5.75 inches
- Stud clearance-hole sizes: 0.38 inches
- Center registration: 5.00 inches
- Far-side inside diameter: 8.38 inches
- Hat offset: 1.910 inches
- Internal parking-drum diameter: 7.24 inches
- Inside clearance diameter: 7.16 inches
- Hat mounting-face thickness: 0.18 inches
- Approximate weight: 11.08 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
A low-profile 11.00-inch rotor for the corresponding Strange-style floating rear hub. Confirm the five-on-5.75-inch rotor attachment, 5.00-inch central opening and 1.91-inch offset together. The integrated 7.24-inch drum requires the existing matching parking mechanism; floating hub and brake hardware are separate.
Manufacturer reference: Wilwood rotor specifications
PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
