Product details

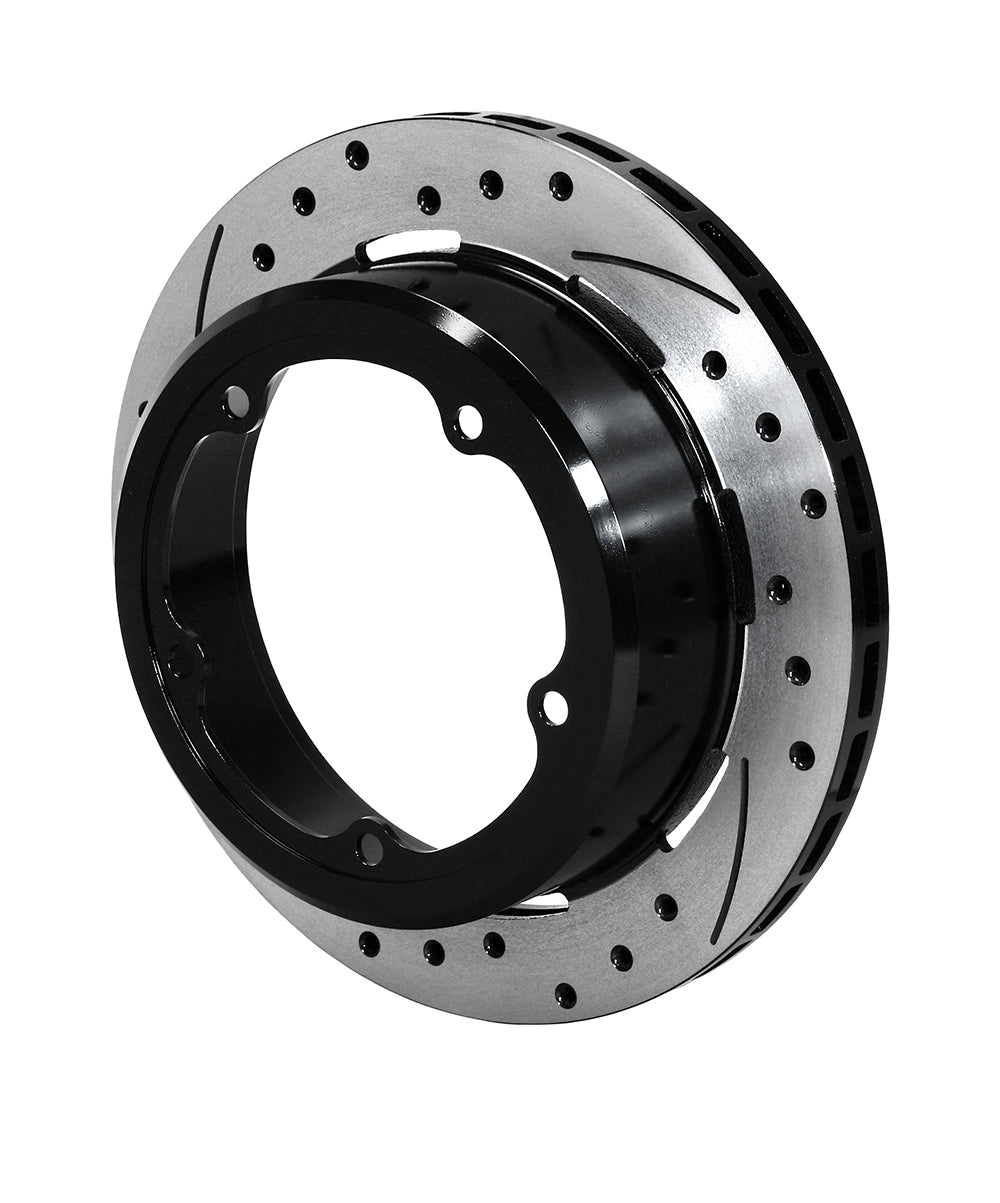

A right-hand SRP pattern distinguishes this compact black rear floater rotor from the plain version. The 11.00-inch friction ring is cast with a parking drum and a large-center hat for the correct Strange-style hub attachment. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems from Camarillo, California. The product range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized installations. Each selection must meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 160-13954-BK
- Diameter and thickness: 11.00 inches diameter x 0.81 inches wide
- Ring material: Iron
- Face pattern and coating: SRP Drilled & Slotted; Black electrocoat
- Internal layout: 32 vanes
- Mounting direction: Right-hand
- Balancing and burnishing: Factory burnished no; balanced no
- Opposite-side component, ordered separately: 160-13955-BK
- Rotor-to-hub attachment circle: 5 x 5.75 inches
- Stud clearance-hole sizes: 0.38 inches
- Center / lug registration: 5.00 inches
- Far-side inside diameter: 8.38 inches
- Hat offset: 1.910 inches
- Internal parking-drum diameter: 7.24 inches
- Inside clearance diameter: 7.16 inches
- Hat mounting-face thickness: 0.18 inches
- Approximate component weight: 11.08 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
A low-profile 11.00-inch rotor for the corresponding Strange-style floating rear hub. Confirm the five-on-5.75-inch rotor attachment, 5.00-inch central opening and 1.91-inch offset together. The integrated 7.24-inch drum requires the existing matching parking mechanism; floating hub and brake hardware are separate.
Manufacturer reference: Wilwood rotor specifications
