Product details

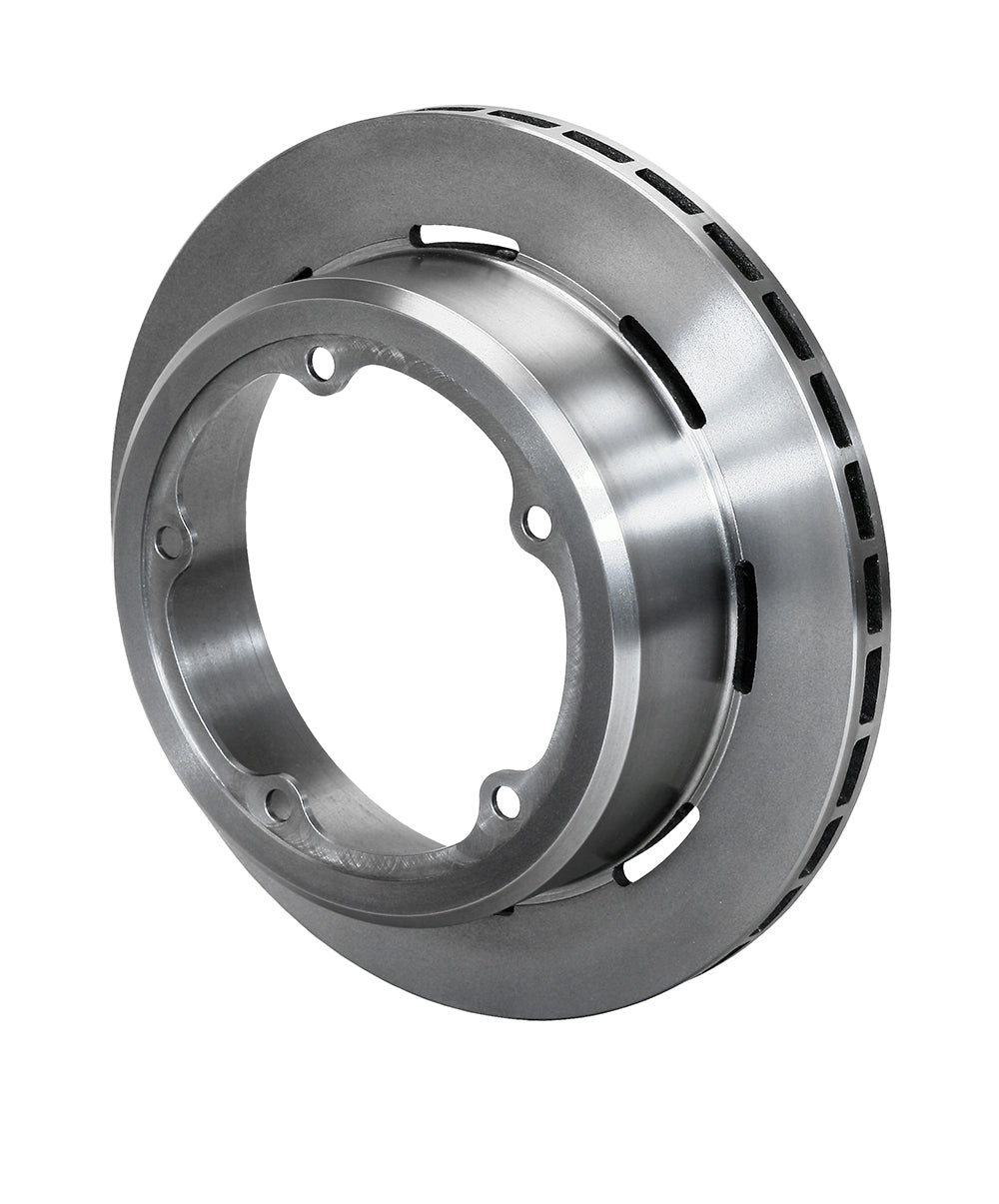

The 11.00-inch floater rotor combines a compact friction ring with the large 5.00-inch center needed around the matching rear hub. Its 1.91-inch offset and internal drum serve the specified low-profile disc/drum assembly. The manufacturer is Wilwood Engineering of Camarillo, California, founded by Bill Wood in 1977. It designs and manufactures disc brake systems, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Matching this component requires consideration of the complete brake system.
Technical Details
- Manufacturer part number: 160-13953
- Outside diameter / width: 11.00 inches diameter x 0.81 inches wide
- Material specification: Iron
- Friction surface / finish: Plain Face; Plain
- Ventilation: 32 vanes; straight
- Mounting direction: Non-directional
- Preparation: Balanced: no; factory burnished: no
- Rotor-to-hub attachment circle: 5 x 5.75 inches
- Stud clearance-hole sizes: 0.38 inches
- Center registration: 5.00 inches
- Far-side inside diameter: 8.38 inches
- Hat offset: 1.910 inches
- Internal parking-drum diameter: 7.24 inches
- Inside clearance diameter: 7.16 inches
- Hat mounting-face thickness: 0.18 inches
- Approximate weight: 11.10 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
A low-profile 11.00-inch rotor for the corresponding Strange-style floating rear hub. Confirm the five-on-5.75-inch rotor attachment, 5.00-inch central opening and 1.91-inch offset together. The integrated 7.24-inch drum requires the existing matching parking mechanism; floating hub and brake hardware are separate.
Manufacturer reference: Wilwood rotor specifications
Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
