Product details

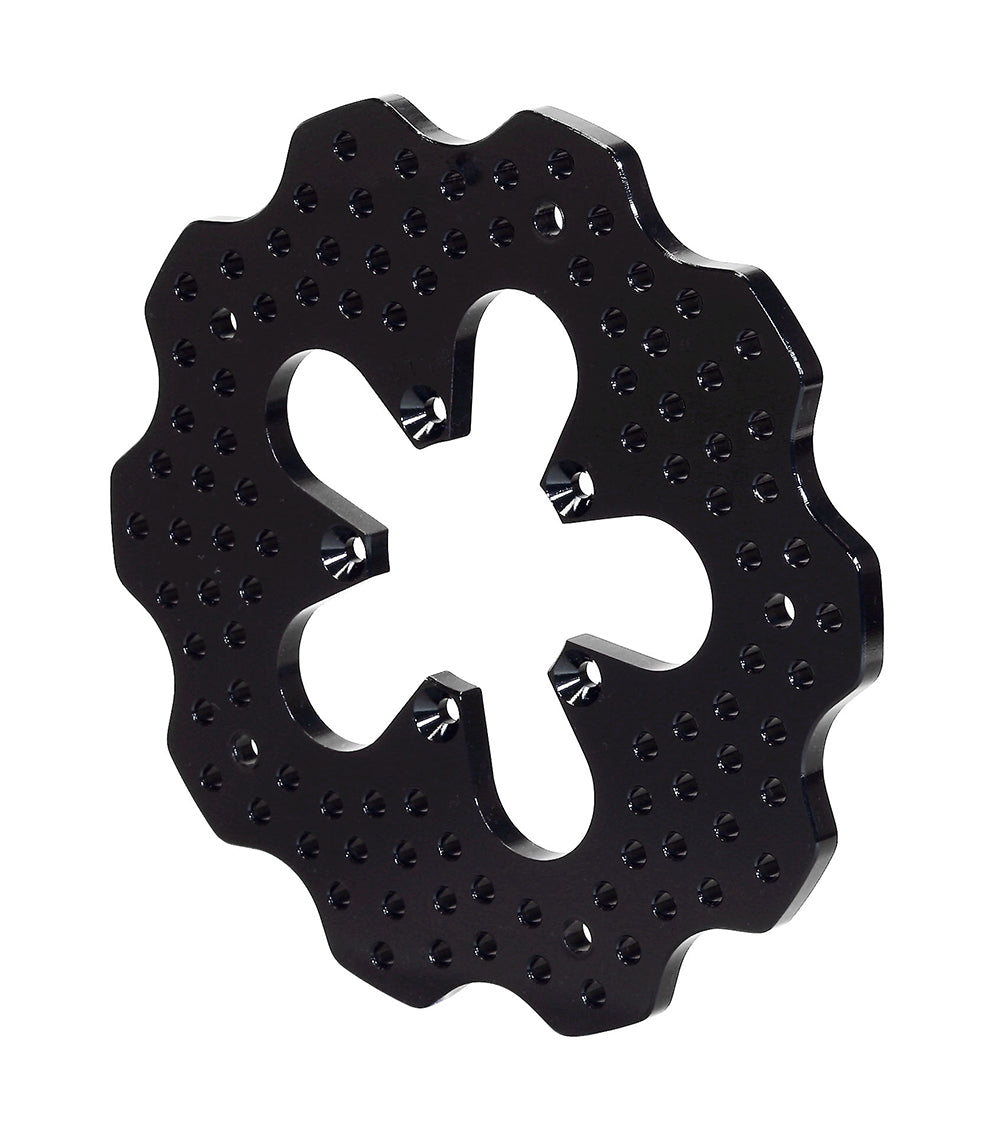

This 7.00-inch aluminum rotor is purpose-built for the specified Keizer Mini Sprint front hub application. Its drilled and scalloped 0.25-inch plate requires the recommended Purple compound pads and must stay within this specialized racing duty. For this rotor, the manufacturer is Wilwood Engineering, founded in 1977 by Bill Wood and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized products are selected to satisfy the complete brake system's requirements.
Technical Details
- Manufacturer part number: 160-13712
- Rotor size: 7.00 inches diameter x 0.25 inches wide
- Rotor material: Aluminum
- Face and finish: Drilled and scalloped; black finish, with anodized/electrocoat process discrepancy noted below
- Vanes: Solid, unvented
- Mounting direction: Non-directional
- Factory condition: Factory burnished no; balanced no
- Rotor-to-hat/hub attachment circle: 5 x 2.375 inches
- Attachment hole size or thread: 0.196 inches
- Center / lug registration: 1.90 inches
- Approximate component weight: 0.60 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Special Mini Sprint racing application for the specified Keizer front hubs only. Use the recommended Purple compound pads and verify the five-point mounting interface. This aluminum rotor is unsafe for street use and unsuitable for most forms of racing; misuse can cause catastrophic failure. Confirm the supplied finish: Wilwood's description and press release say black anodized, while its specification table says black electrocoat.
Manufacturer reference: Wilwood rotor specifications, Wilwood application information, Wilwood application information
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
