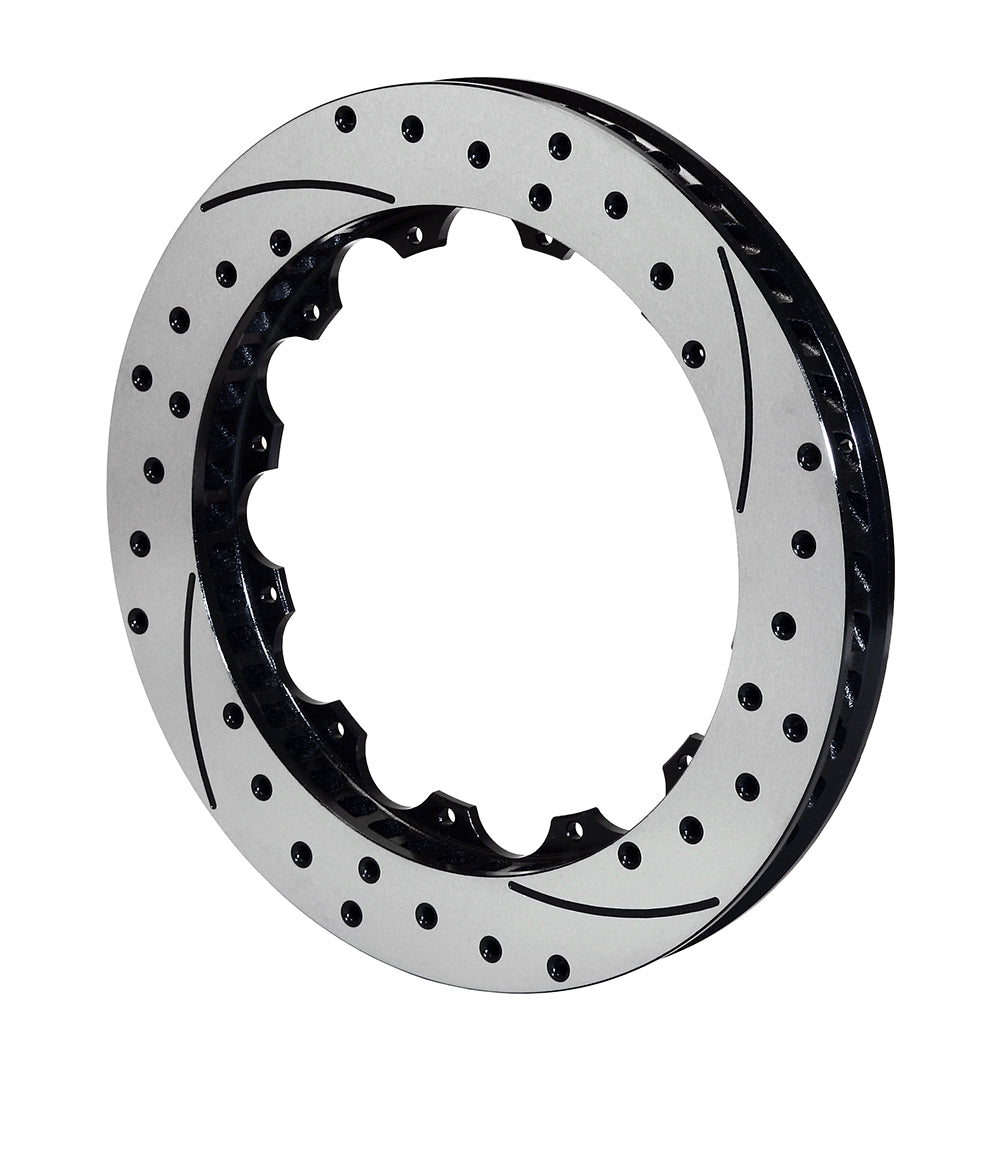

Wilwood Right SRP Rotor, Black 12.88 x 1.10-inch Spec-37 with 48 Curved Vanes

The 1.10-inch section places this right-hand SRP ring between other widths in the 12.88-inch range. Its black-coated Spec-37 construction combines 48 curved vanes with the directional drilled-and-slotted face treatment. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California and designs and manufactures disc brake systems. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on selecting those parts for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 160-13543-BK
• Diameter and thickness: 12.88 inches diameter x 1.10 inches wide
• Ring material: Spec-37 Iron
• Face pattern and coating: SRP Drilled & Slotted; Black electrocoat
• Internal layout: 48 CV
• Mounting direction: Right-hand
• Balancing and burnishing: Factory burnished no; balanced yes
• Opposite-side component, ordered separately: 160-13544-BK
• Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
• Attachment hole size or thread: 0.251 inches
• Center / lug registration: 8.25 inches
• Far-side inside diameter: 9.46 inches
• Approximate component weight: 11.90 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

This ring is a component of a matched brake system. Confirm 1.10-inch rotor clearance through the caliper, the 12.88-inch radial envelope and the separate hat's 12 x 8.75-inch attachment. Its 8.25-inch registration must locate concentrically on the specified mounting hardware. Wilwood specifies the SRP face treatment for street and moderate-temperature race duty; severe sustained racing calls for evaluation of the corresponding HD or GT option.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
