Product details

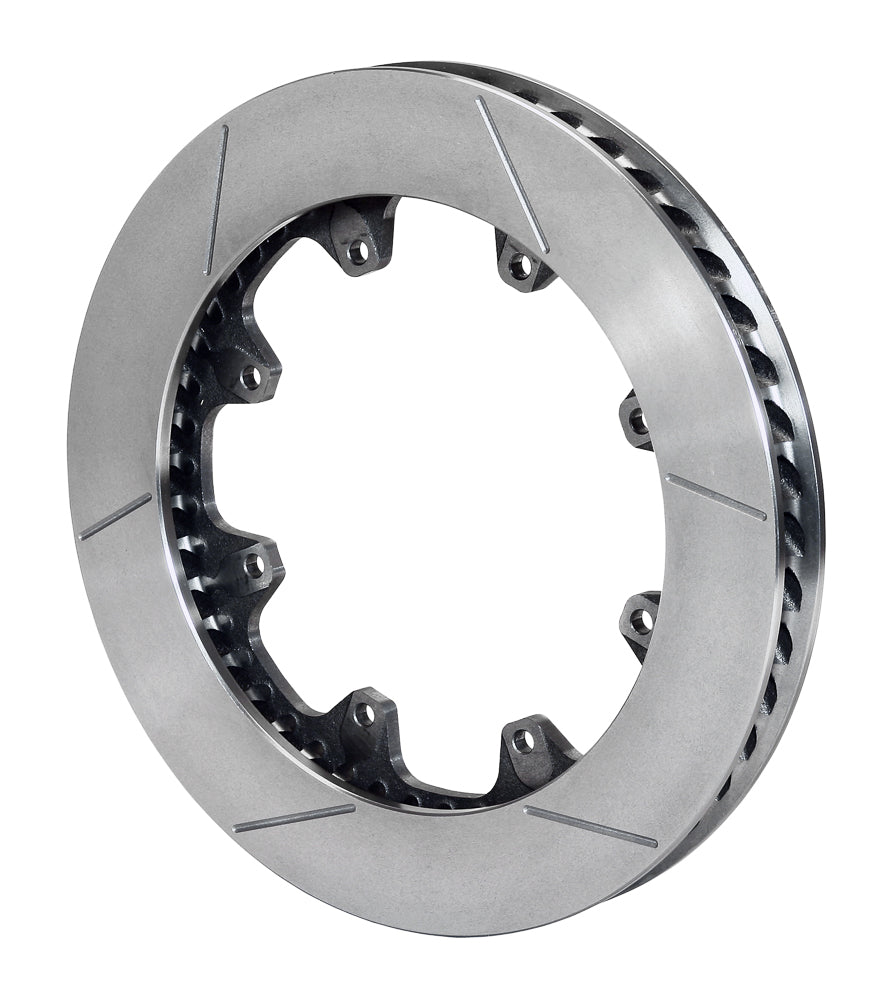

The left-hand GT configuration offers slotted friction faces on a 1.21-inch-wide casting. Its 11.75-inch ring is supplied without factory burnishing, with the final pad-and-rotor bedding procedure determined by the installed system. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems from Camarillo, California. The product range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized installations. Each selection must meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 160-13500
- Rotor size: 11.75 inches diameter x 1.21 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 48 CV; curved
- Mounting direction: Left-hand
- Factory condition: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-13499
- Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
- Attachment hole size or thread: 0.316 inches
- Center / lug registration: 6.38 inches
- Far-side inside diameter: 8.34 inches
- Approximate component weight: 10.40 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
The left-hand curved vanes must rotate in their specified direction on a brake using an 11.75-inch ring. Check the unusual 1.21-inch section within the caliper before selecting the eight-hole, 7.00-inch-circle hat. This unburnished GT component requires the installed pad-and-rotor bedding procedure.
Manufacturer reference: Wilwood rotor specifications
With more than 20 years of parts and brake-system experience, PMB Performance can help review the rotor, hat and caliper combination before you order.
