Product details

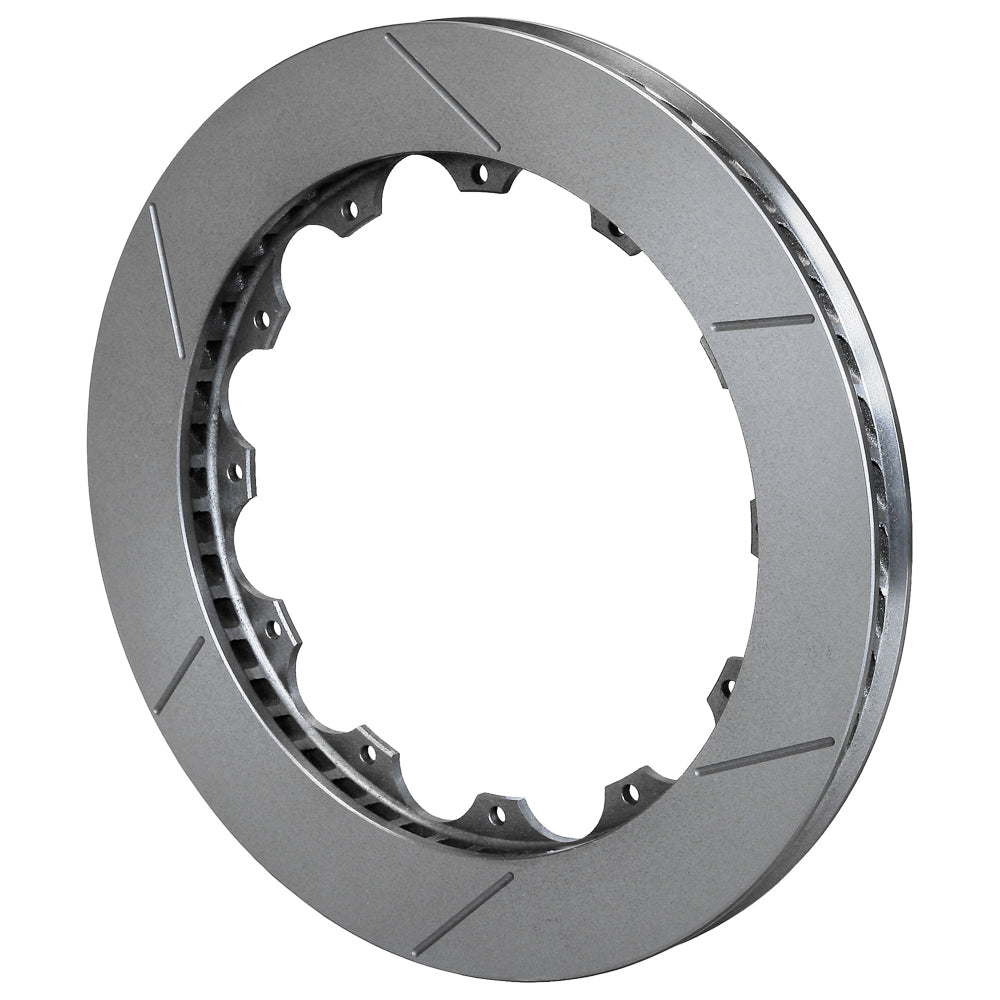

The 1.00-inch working width identifies this right GT ring within the 12.88-inch family. Its Spec-37 casting combines 48 curved vanes with asymmetrical slots and balancing for a matched brake system. For this rotor, the manufacturer is Wilwood Engineering, founded in 1977 by Bill Wood and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized products are selected to satisfy the complete brake system's requirements.
Technical Details
- Manufacturer part number: 160-13356
- Rotor size: 12.88 inches diameter x 1.00 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 48 CV; curved
- Mounting direction: Right-hand
- Factory condition: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-13357
- Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
- Attachment hole size or thread: 0.251 inches
- Center / lug registration: 8.25 inches
- Far-side inside diameter: 9.46 inches
- Approximate component weight: 10.50 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
This ring is a component of a matched brake system. Confirm 1.00-inch rotor clearance through the caliper, the 12.88-inch radial envelope and the separate hat's 12 x 8.75-inch attachment. Its 8.25-inch registration must locate concentrically on the specified mounting hardware. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
