Product details

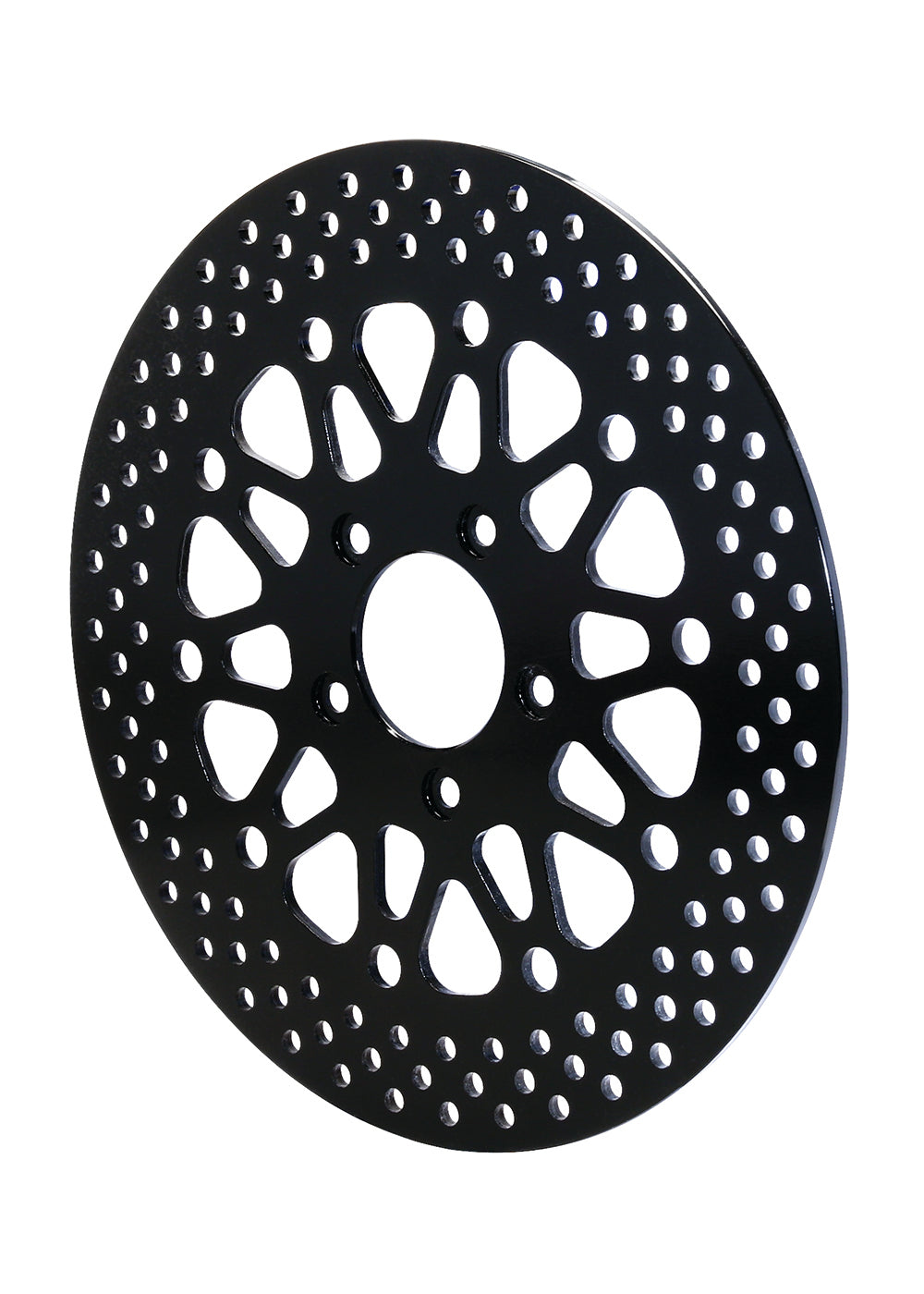

A black finish covers this 11.80-inch stainless front rotor for the matching later Harley-Davidson brake layout. Its 0.344-inch attachment holes and 2.22-inch register must agree with the wheel or hub; this is one rotor rather than a dual-front pair. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc brake systems and their calipers, brake rotors, master cylinders, valves, fittings and brake lines. Across motorsport, street-performance and specialized applications, these components must be matched as parts of a complete braking system.
Technical Details
- Manufacturer part number: 160-13355-BK
- Friction dimensions: 11.80 inches diameter x 0.20 inches wide
- Construction: Stainless
- Surface treatment: Drilled; Black electrocoat
- Cooling layout: Solid, unvented
- Mounting direction: Non-directional
- Supplied preparation: Balanced: no; factory burnished: no
- Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
- Attachment hole size or thread: 0.344 inches
- Center registration: 2.22 inches
- Approximate weight: 4.50 lb
- Quantity: one motorcycle rotor; mounting fasteners and pads are separate
Fitment & Compatibility
The later Harley front application must already use the 11.80-inch diameter and the specified five-point mount. Check the 2.22-inch register and 0.344-inch holes rather than relying on a 2008-up label alone. A dual-front installation needs the correct quantity of rotors and separate fastening hardware.
Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions
Choosing a rotor involves more than its outside diameter. PMB Performance's 20-plus years of brake and parts experience can help you check the component against your existing assembly.
