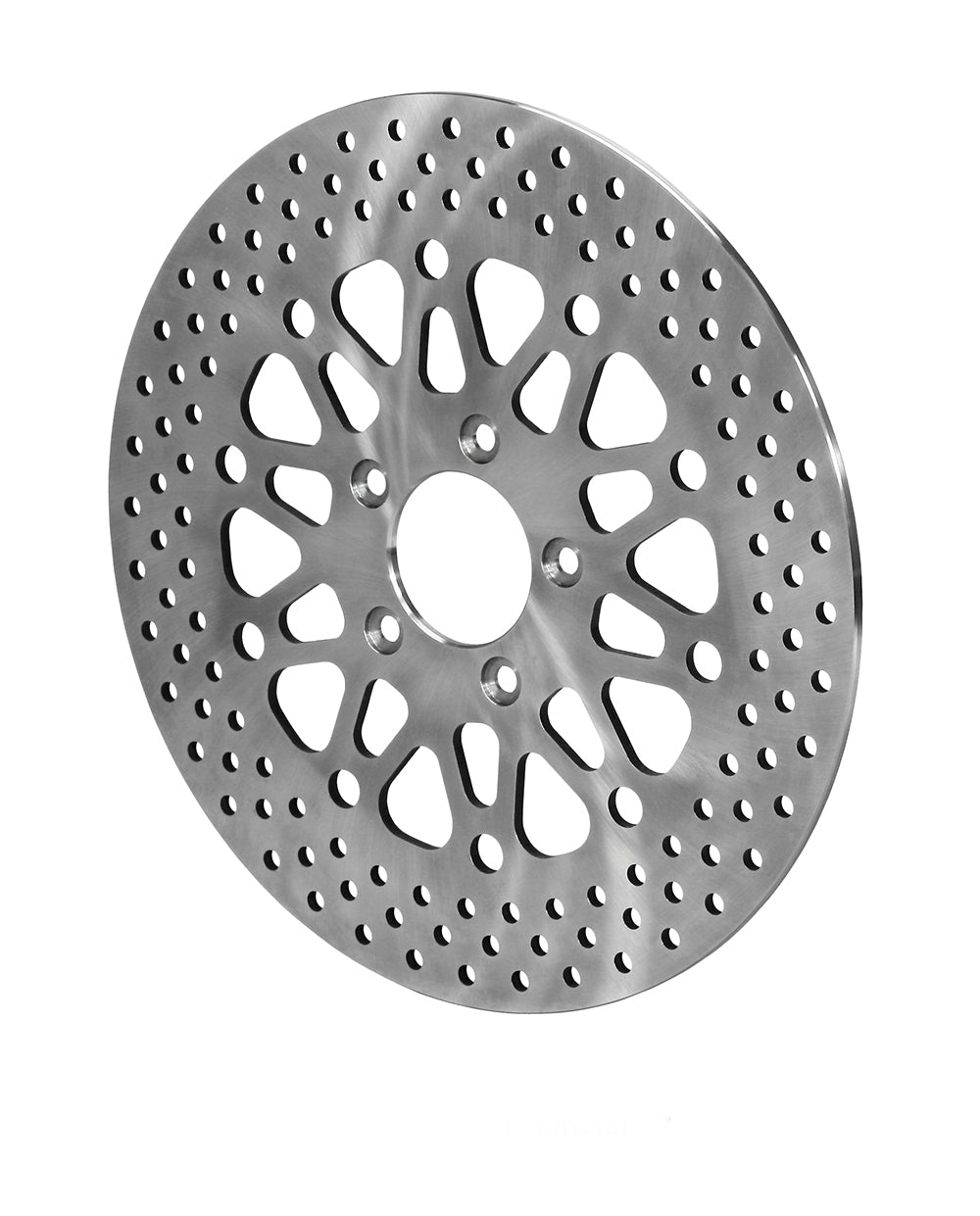

Wilwood Front Satin 11.80-inch Motorcycle Rotor for Matching Harley-Davidson 2008-Up Brakes

This larger 11.80-inch satin rotor is intended for matching 2008-up Harley-Davidson front brakes. Its diameter distinguishes it from the earlier 11.50-inch family even though the five-on-3.25-inch attachment and 2.22-inch center appear similar. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Selection must account for the entire brake system.

Technical Details

• Manufacturer part number: 160-13355
• Diameter and thickness: 11.80 inches diameter x 0.20 inches wide
• Ring material: Stainless
• Face pattern and coating: Drilled; Satin
• Internal layout: Solid, unvented
• Mounting direction: Non-directional
• Balancing and burnishing: Factory burnished no; balanced no
• Rotor-to-hat/hub attachment circle: 5 x 3.25 inches
• Attachment hole size or thread: 0.344 inches
• Center / lug registration: 2.22 inches
• Approximate component weight: 4.50 lb
• Quantity: one motorcycle rotor; mounting fasteners and pads are separate

Fitment & Compatibility

Select by the actual front brake on the 2008-up Harley-Davidson: this is the 11.80-inch version, with a 2.22-inch center and 0.344-inch fixing holes. Earlier-size 11.50-inch rotors can share a model year but are not the same friction envelope. Check the caliper, hub and fasteners; one rotor is supplied.

Manufacturer reference: Wilwood rotor specifications, Motorcycle rotor dimensions

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
