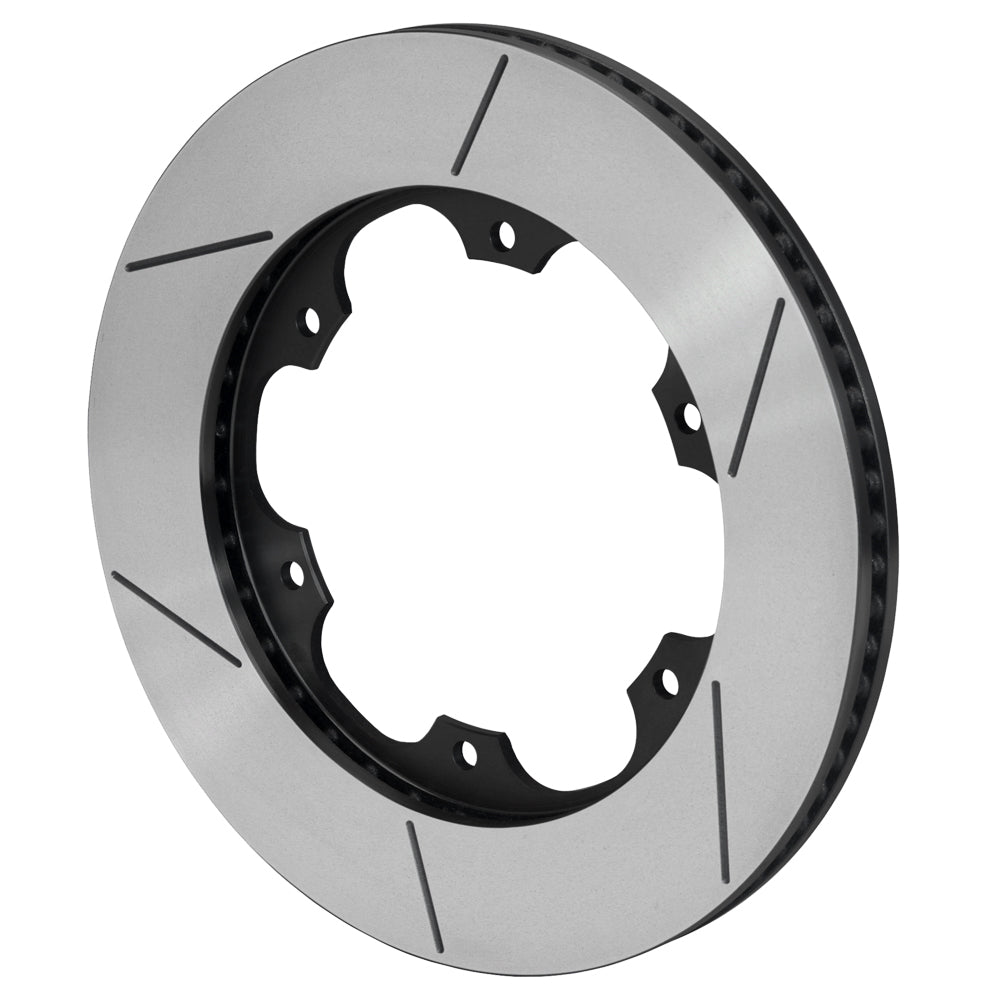

Wilwood Black 11.00-inch GTB Rotor, 0.81-inch Width and 72 Straight Vanes

This GTB rotor adds black electrocoat to the six-bolt 11.00-inch configuration. The 72 straight vanes permit either side, while its 5.59-inch registration and 0.81-inch width remain essential dimensions for the matched assembly. The manufacturer is Wilwood Engineering of Camarillo, California, founded by Bill Wood in 1977. It designs and manufactures disc brake systems, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Matching this component requires consideration of the complete brake system.

Technical Details

• Manufacturer part number: 160-12892-GTB
• Outside diameter / width: 11.00 inches diameter x 0.81 inches wide
• Material specification: Spec-37 Iron
• Friction surface / finish: GT Slotted; Black electrocoat
• Ventilation: 72 vanes; straight
• Mounting direction: Non-directional
• Preparation: Balanced: yes; factory burnished: no
• Rotor-to-hat/hub attachment circle: 6 x 6.25 inches
• Attachment hole size or thread: 0.326 inches
• Center registration: 5.59 inches
• Far-side inside diameter: 7.42 inches
• Approximate weight: 9.40 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

This ring is a component of a matched brake system. Confirm 0.81-inch rotor clearance through the caliper, the 11.00-inch radial envelope and the separate hat's 6 x 6.25-inch attachment. Its 5.59-inch registration must locate concentrically on the specified mounting hardware. Select pads and operating duty to suit the rotor material and the intended brake system.

Manufacturer reference: Wilwood rotor specifications

Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
