Product details

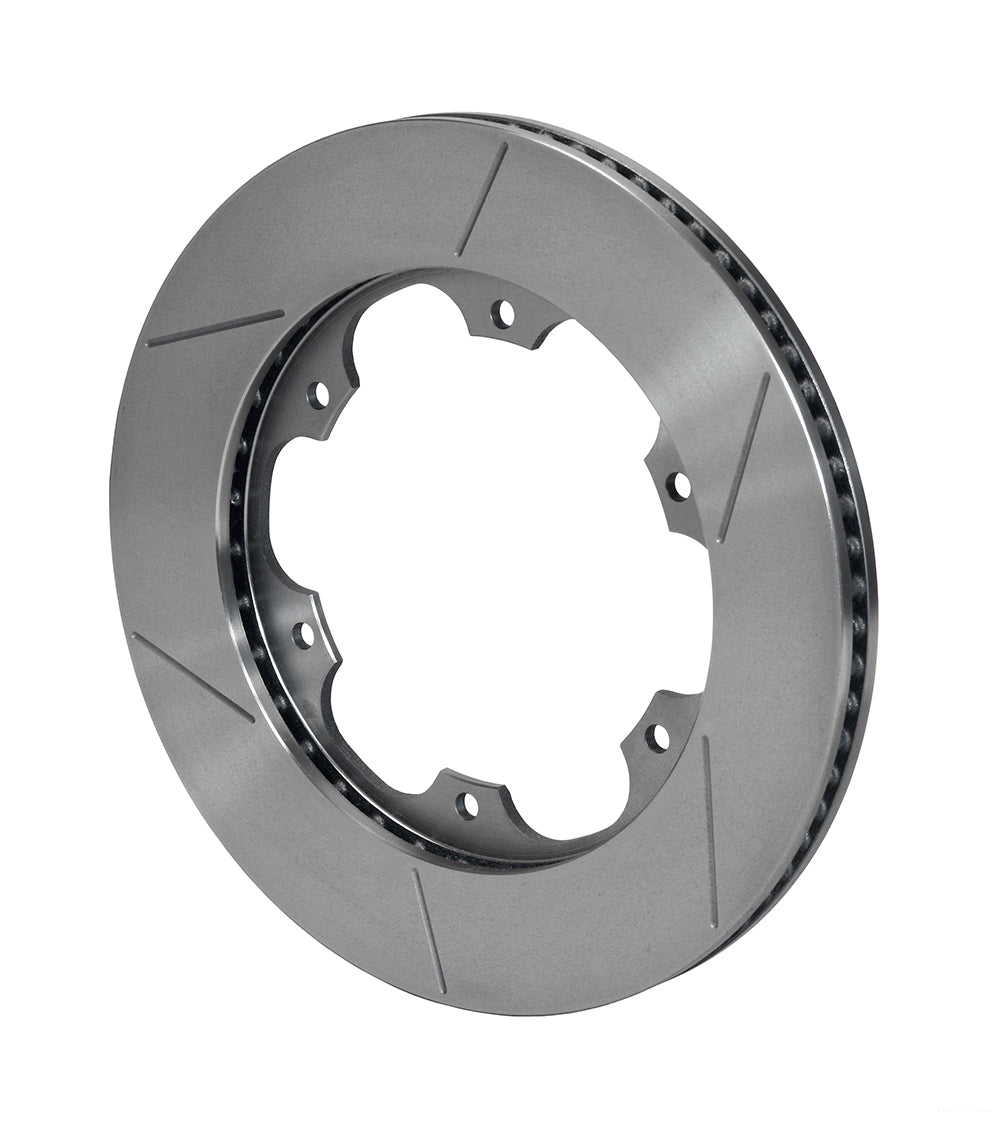

Seventy-two straight vanes are packed into this compact 11.00-inch Spec-37 ring. GT slots and balancing are combined with a six-bolt attachment, so it fits a different hat interface from the larger eight- and twelve-bolt GT families. Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California, designs and manufactures disc brake systems. Its component range spans brake rotors and calipers alongside master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The complete brake system governs which components belong together.
Technical Details
- Manufacturer part number: 160-12892
- Rotor size: 11.00 inches diameter x 0.81 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 72 vanes; straight
- Mounting direction: Non-directional
- Factory condition: Factory burnished no; balanced yes
- Rotor-to-hat/hub attachment circle: 6 x 6.25 inches
- Attachment hole size or thread: 0.326 inches
- Center / lug registration: 5.59 inches
- Far-side inside diameter: 7.42 inches
- Approximate component weight: 9.40 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Compare the existing hat interface with the 6 x 6.25-inch rotor pattern, then check the 5.59-inch centering register. Proper axial placement and full pad contact are required around the 11.00-inch ring. A matching wheel-bolt pattern is not a substitute for this rotor-to-hat check. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
