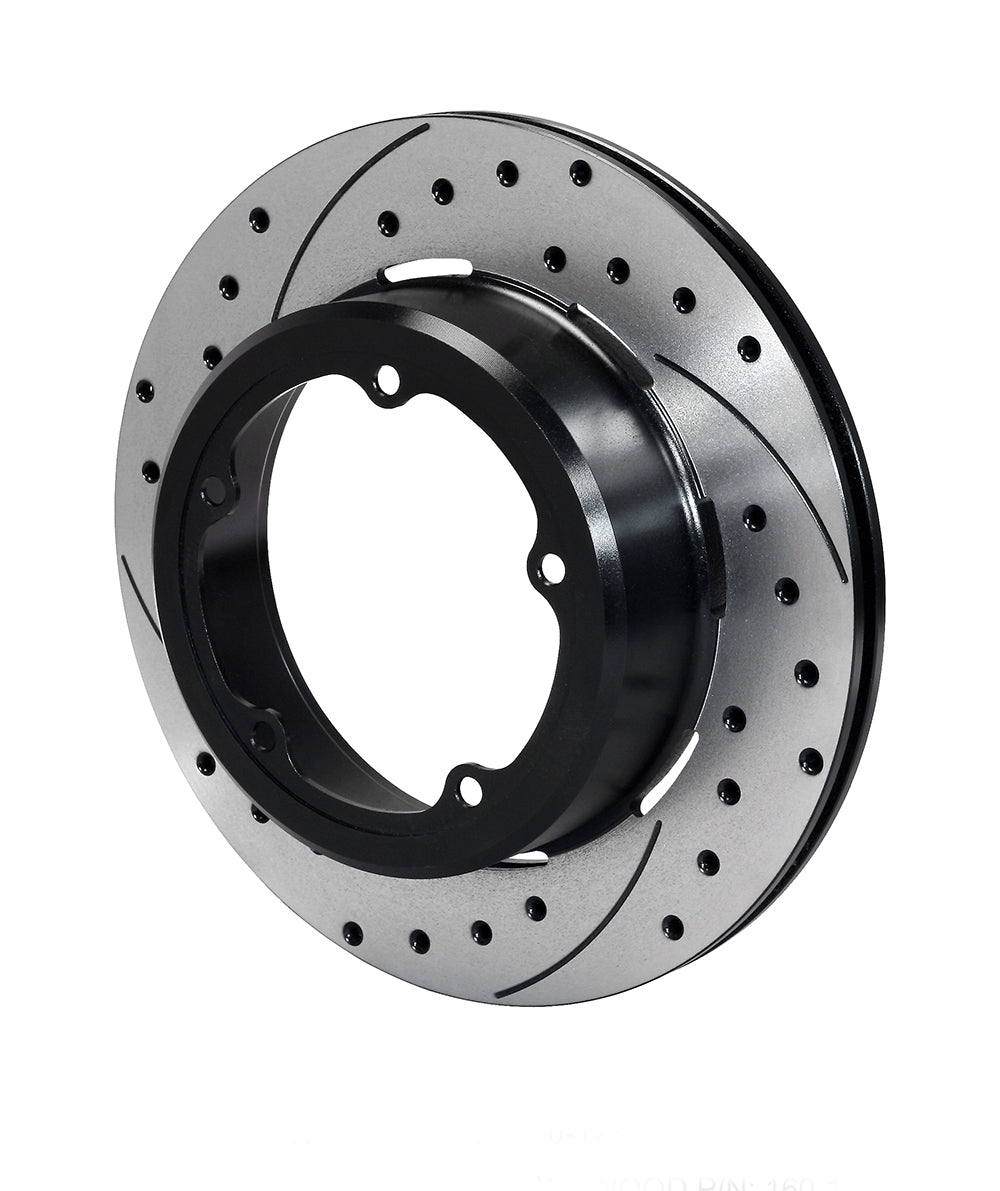

Wilwood Rear Right Floater SRP Rotor, Black 12.19-inch with 5.00-inch Center

This right rear SRP rotor accommodates the large center of a compatible Strange-style floating hub. The 5 x 5.75-inch attachment and 1.91-inch hat offset locate the 12.19-inch friction ring over the matching rear brake assembly. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Selection must account for the entire brake system.

Technical Details

• Manufacturer part number: 160-12890-BK
• Diameter and thickness: 12.19 inches diameter x 0.81 inches wide
• Ring material: Iron
• Face pattern and coating: SRP Drilled & Slotted; Black electrocoat
• Internal layout: 32 vanes
• Mounting direction: Right-hand
• Balancing and burnishing: Factory burnished no; balanced no
• Opposite-side component, ordered separately: 160-12891-BK
• Rotor-to-hub attachment circle: 5 x 5.75 inches
• Stud clearance-hole sizes: 0.38 inches
• Center / lug registration: 5.00 inches
• Far-side inside diameter: 8.38 inches
• Hat offset: 1.910 inches
• Internal parking-drum diameter: 7.24 inches
• Inside clearance diameter: 7.16 inches
• Hat mounting-face thickness: 0.18 inches
• Approximate component weight: 14.20 lb
• Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included

Fitment & Compatibility

For the matching Strange-style floating-hub rear brake system. The five-on-5.75-inch circle is the rotor's hub attachment and the 5.00-inch center clears the floating hub; neither dimension establishes a general wheel pattern. Verify the 12.19-inch caliper position and 7.24-inch parking-brake drum.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
