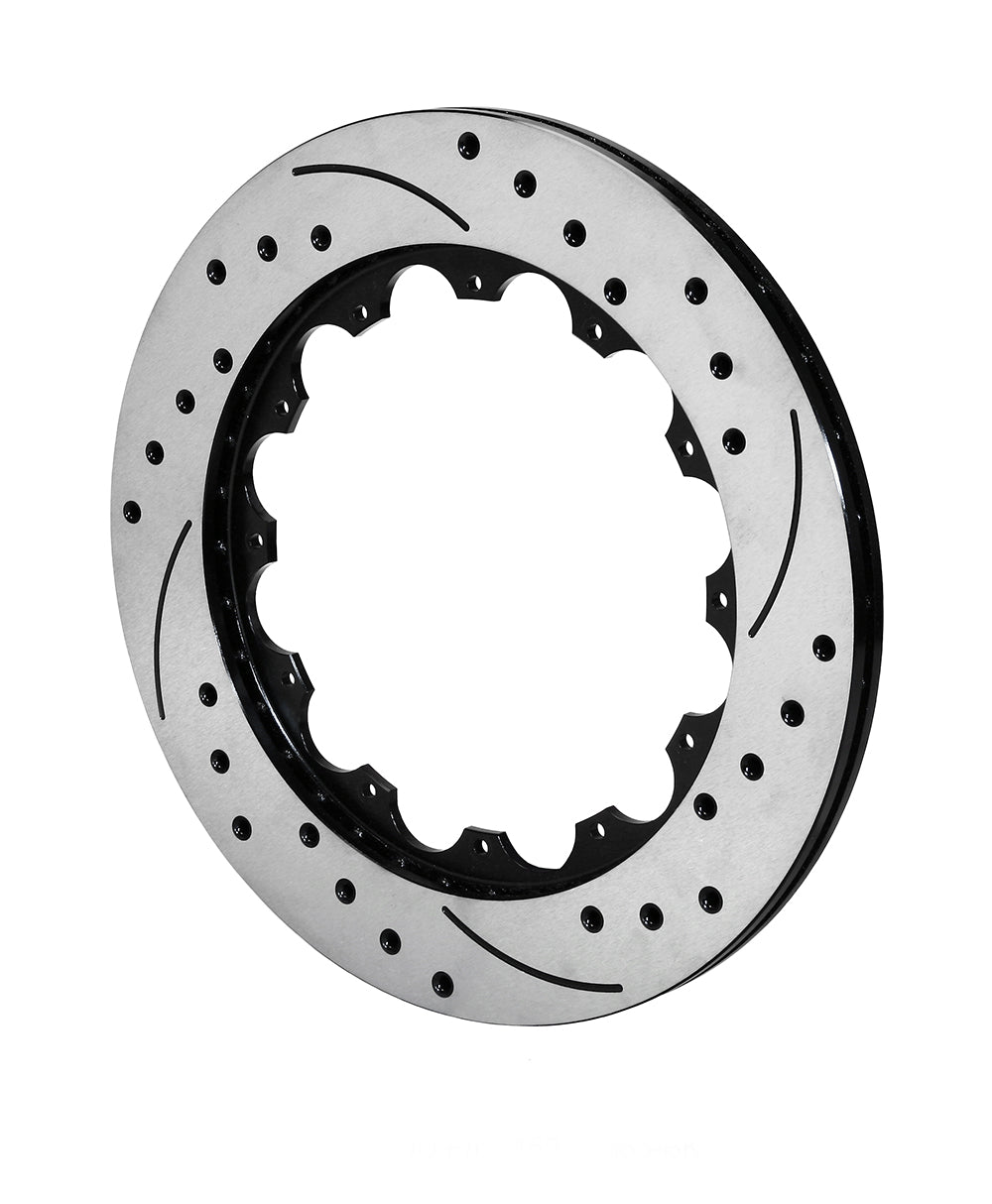

Wilwood Right 14.00 x 0.81-inch SRP Rotor, Black Drilled and Slotted Iron

Here the SRP face pattern determines the specified right-hand position while the internal 36-vane layout is straight. The 14.00 x 0.81-inch rotor has black electrocoat and attaches to a separate hat through twelve holes. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized components are selected around the requirements of the whole braking system.

Technical Details

• Manufacturer part number: 160-12885-BK
• Rotor size: 14.00 inches diameter x 0.81 inches wide
• Rotor material: Iron
• Face and finish: SRP Drilled & Slotted; Black electrocoat
• Vanes: 36 vanes
• Mounting direction: Right-hand
• Factory condition: Factory burnished no; balanced yes
• Opposite-side component, ordered separately: 160-12886-BK
• Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
• Attachment hole size or thread: 0.251 inches
• Center / lug registration: 8.25 inches
• Far-side inside diameter: 10.00 inches
• Approximate component weight: 13.30 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

Use the complete brake kit to establish axle location, caliper spacing and wheel clearance. This 14.00-inch rotor needs a 12 x 8.75-inch mounting interface with 8.25-inch centering. Pad compound and sweep must be suitable for the ring material and 0.81-inch working section. Wilwood specifies the SRP face treatment for street and moderate-temperature race duty; severe sustained racing calls for evaluation of the corresponding HD or GT option.

Manufacturer reference: Wilwood rotor specifications

With more than 20 years of parts and brake-system experience, PMB Performance can help review the rotor, hat and caliper combination before you order.
