Product details

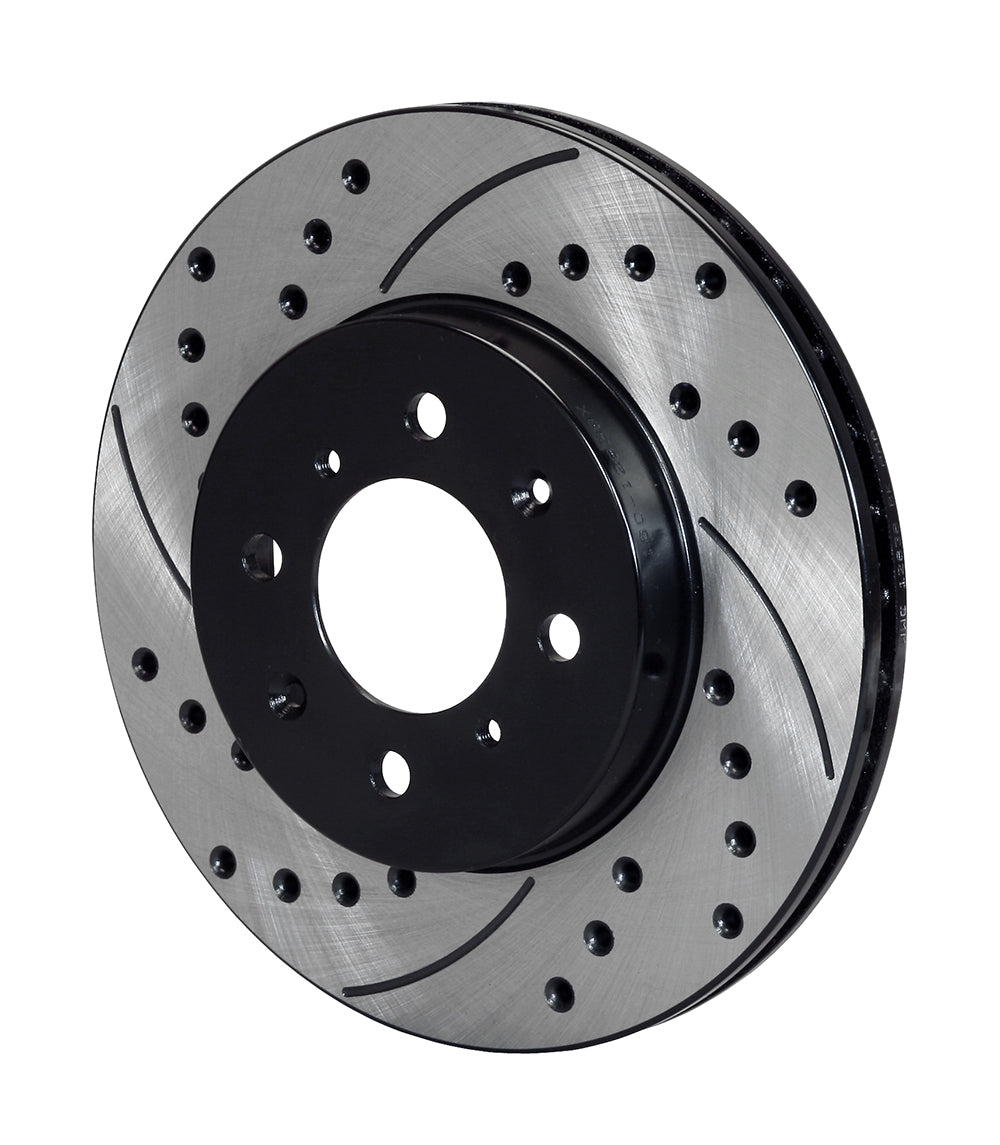

This left-hand SRP rotor retains the compact 262 mm envelope and one-piece hat used in its specified Honda/Acura application. The 0.83-inch working width and 2.52-inch center must match the original assembly before it is treated as an OE-dimension replacement. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers and brake rotors work alongside its master cylinders, valves, fittings and brake lines, with each individual component selected according to the complete system's requirements.
Technical Details
- Manufacturer part number: 160-12839-BK
- Outside diameter / width: 10.32 inches diameter x 0.83 inches wide
- Material specification: Iron
- Friction surface / finish: SRP Drilled & Slotted; Black electrocoat
- Ventilation: Vented
- Mounting direction: Left-hand
- Preparation: Balanced: no; factory burnished: no
- Opposite-side component, ordered separately: 160-12838-BK
- Hat wheel-stud clearance pattern: 4 x 3.93 inches
- Center registration: 2.52 inches
- Far-side inside diameter: 6.22 inches
- Hat offset: 0.680 inches
- Inside clearance diameter: 5.42 inches
- Hat mounting-face thickness: 0.25 inches
- Approximate weight: 11.50 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
For the matching Honda/Acura front system with OE 262 mm rotors and spindles. DS-967 excludes the 240 mm spindle even if a larger rotor has been installed. Confirm 2.52-inch registration and 0.68-inch offset; the DPHA conversion also requires its specified wheel clearance, beyond nominal wheel diameter.
Manufacturer reference: Wilwood rotor specifications, Installation document DS967
Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
