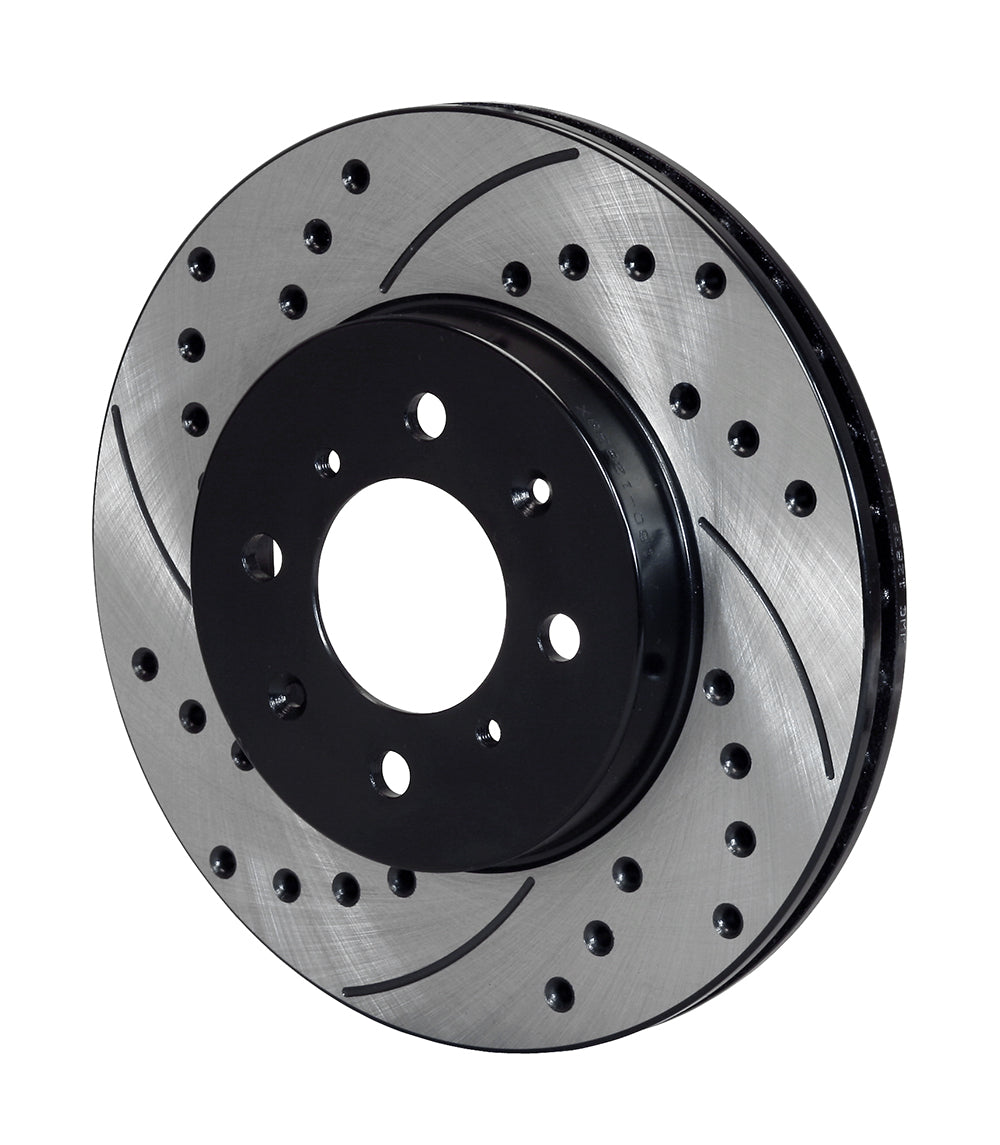

Wilwood Front Right SRP 262 mm Honda/Acura Rotor and Hat, Black, 10.32 x 0.83-inch

The 262 mm OE-dimension application determines the fit of this right-hand Honda/Acura SRP rotor. Its cast-in hat has a 0.68-inch offset, and the drilled-and-slotted face is sized for the matching 0.83-inch-width brake arrangement. For this rotor, the manufacturer is Wilwood Engineering, founded in 1977 by Bill Wood and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized products are selected to satisfy the complete brake system's requirements.

Technical Details

• Manufacturer part number: 160-12838-BK
• Rotor size: 10.32 inches diameter x 0.83 inches wide
• Rotor material: Iron
• Face and finish: SRP Drilled & Slotted; Black electrocoat
• Vanes: Vented
• Mounting direction: Right-hand
• Factory condition: Factory burnished no; balanced no
• Opposite-side component, ordered separately: 160-12839-BK
• Hat wheel-stud clearance pattern: 4 x 3.93 inches
• Center / lug registration: 2.52 inches
• Far-side inside diameter: 6.22 inches
• Hat offset: 0.680 inches
• Inside clearance diameter: 5.42 inches
• Hat mounting-face thickness: 0.25 inches
• Approximate component weight: 11.50 lb
• Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included

Fitment & Compatibility

For the matching Honda/Acura front system with OE 262 mm rotors and spindles. DS-967 excludes the 240 mm spindle even if a larger rotor has been installed. Confirm 2.52-inch registration and 0.68-inch offset; the DPHA conversion also requires its specified wheel clearance, beyond nominal wheel diameter.

Manufacturer reference: Wilwood rotor specifications, Installation document DS967

Contact PMB Performance with the rotor and brake-system details for fitment assistance informed by more than 20 years of experience.
