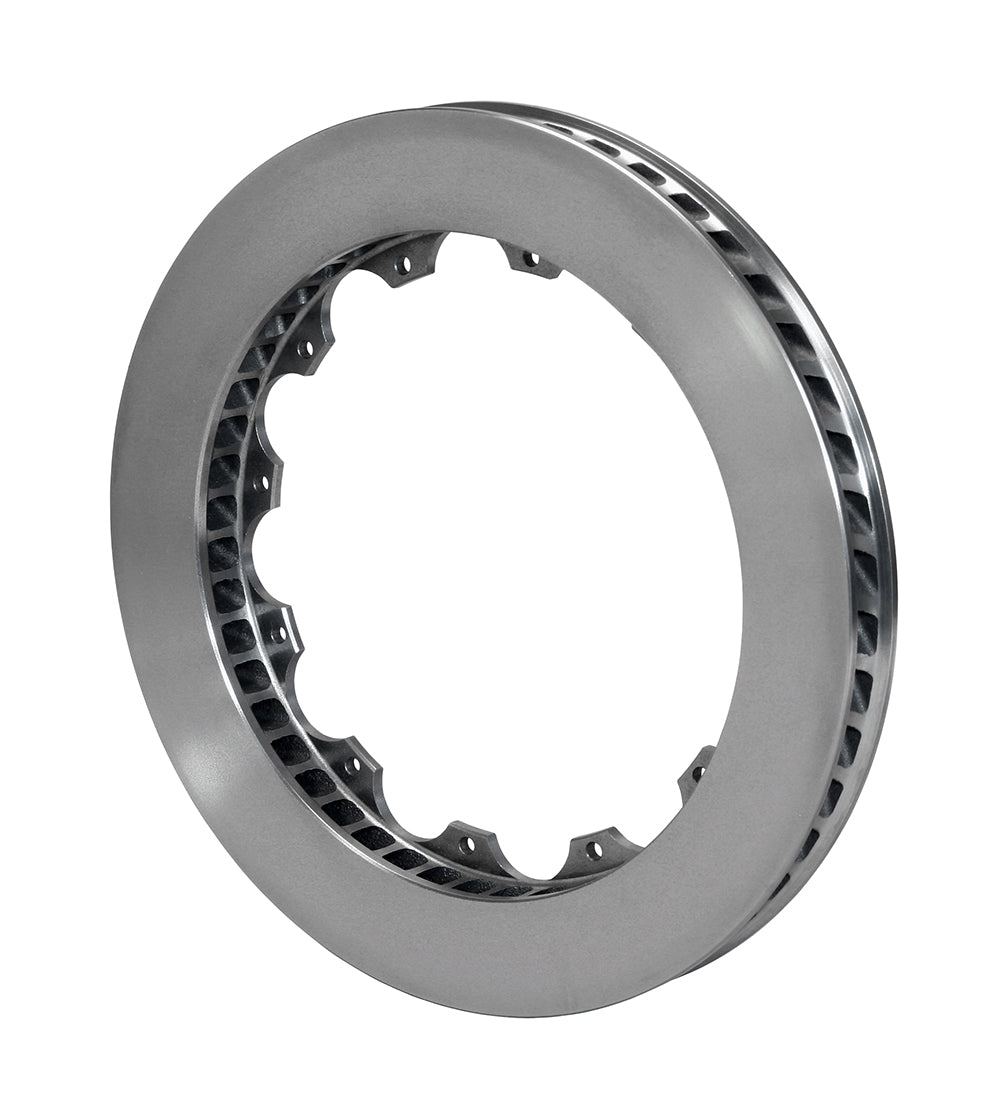

Wilwood Right HD Rotor with 13.06-inch Diameter, 1.25-inch Width and Plain Faces

This 13.06-inch HD version uses the larger friction diameter while retaining the 1.25-inch section. Its right-hand 48-vane casting is balanced and plain-faced, with the familiar twelve-bolt interface requiring the correct radial caliper position. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California and designs and manufactures disc brake systems. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on selecting those parts for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 160-12786
• Diameter and thickness: 13.06 inches diameter x 1.25 inches wide
• Ring material: Spec-37 Iron
• Face pattern and coating: Plain Face; Plain
• Internal layout: 48 CV; curved
• Mounting direction: Right-hand
• Balancing and burnishing: Factory burnished no; balanced yes
• Opposite-side component, ordered separately: 160-12787
• Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
• Attachment hole size or thread: 0.251 inches
• Center / lug registration: 8.25 inches
• Far-side inside diameter: 9.46 inches
• Approximate component weight: 12.30 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

Select the separate hat for the 12 x 8.75-inch rotor-attachment pattern and 8.25-inch register. The 13.06-inch friction diameter and 1.25-inch section must agree with caliper placement and pad sweep. This mounting circle is independent of the vehicle's wheel-stud pattern. Select pads and operating duty to suit the rotor material and the intended brake system.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
