Product details

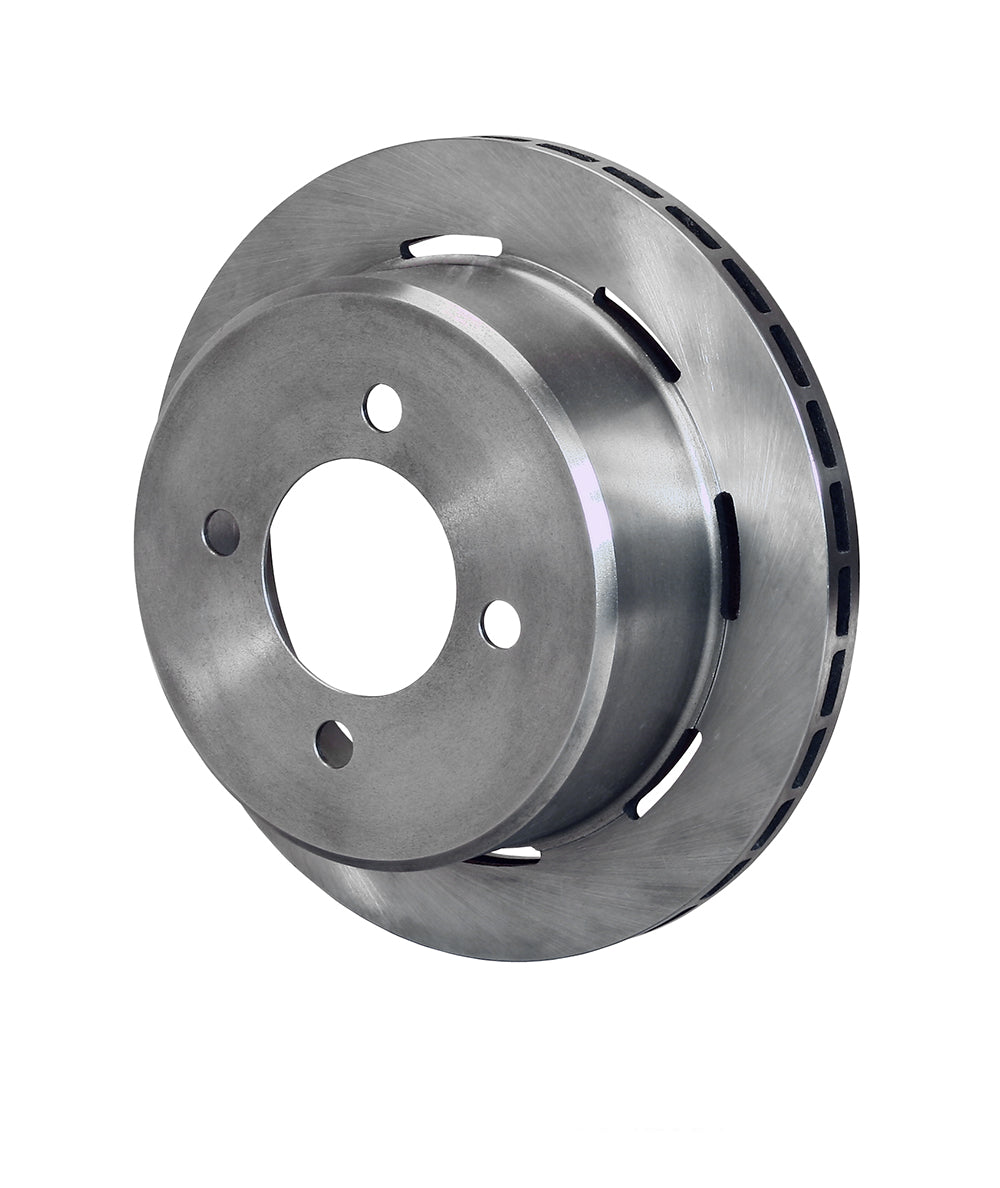

A four-on-4.50-inch stud clearance pattern distinguishes this low-profile rear casting. Its deeper 2.32-inch hat locates the plain 11.00-inch friction ring over the corresponding internal parking-brake assembly. Wilwood Engineering's disc brake systems are designed and manufactured for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood and based in Camarillo, California, the company makes calipers, brake rotors, master cylinders, valves, fittings and brake lines. These individual parts must be chosen to work within the complete braking system.
Technical Details
- Manufacturer part number: 160-12594
- Friction dimensions: 11.00 inches diameter x 0.81 inches wide
- Construction: Iron
- Surface treatment: Plain Face; Plain
- Cooling layout: 32 vanes; straight
- Mounting direction: Non-directional
- Supplied preparation: Balanced: no; factory burnished: no
- Hat wheel-stud clearance pattern: 4 x 4.50 inches
- Stud clearance-hole sizes: 0.61 inches
- Center registration: 3.06 inches
- Far-side inside diameter: 8.38 inches
- Hat offset: 2.320 inches
- Internal parking-drum diameter: 7.24 inches
- Inside clearance diameter: 7.16 inches
- Hat mounting-face thickness: 0.18 inches
- Approximate weight: 12.40 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
Fits the specified four-lug low-profile rear brake arrangement, requiring a 2.32-inch offset and 7.24-inch internal parking drum. The four-on-4.50-inch holes clear the existing studs. Select any separately sold register adapter by the actual axle diameter; the 3.06-inch center accepts the specified 2.00–2.86-inch adapter range.
Manufacturer reference: Wilwood rotor specifications
PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
