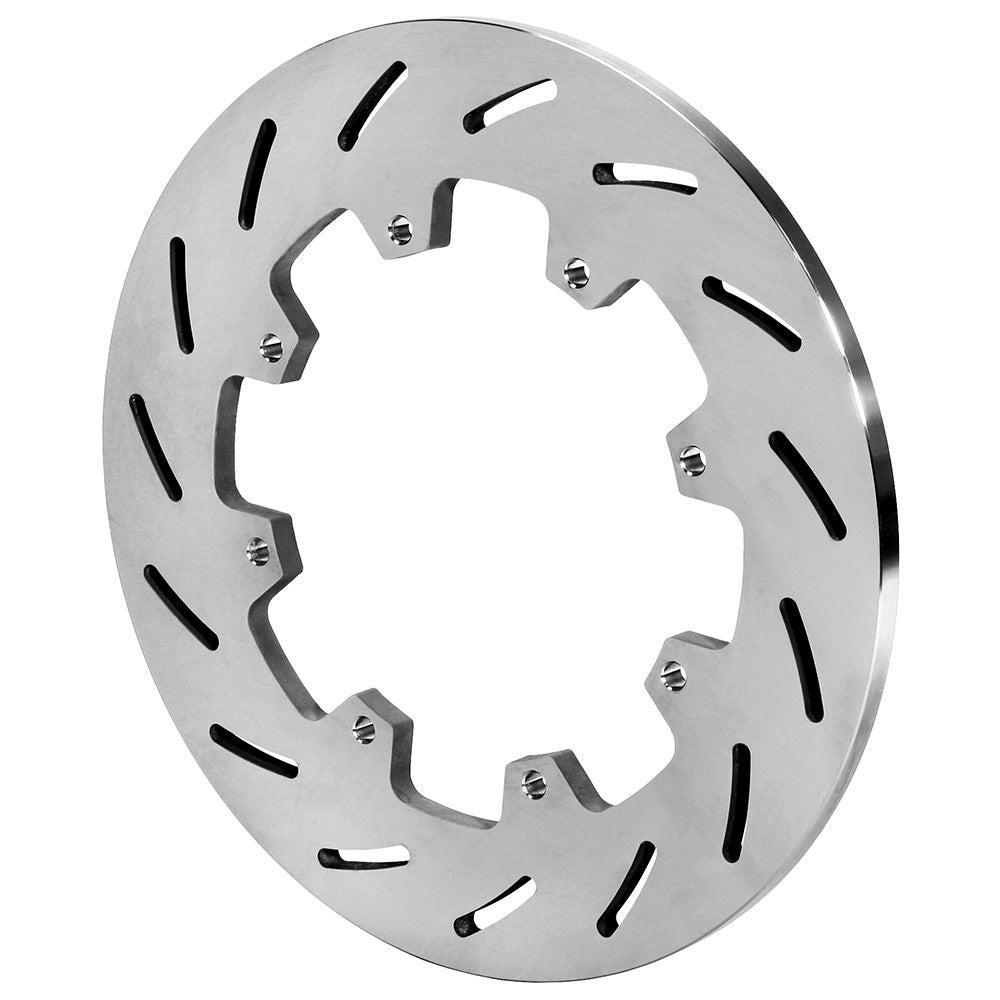

Wilwood Sprint Inboard Titanium Slotted Rotor, 12.00 x 0.36-inch

Titanium construction and a solid 0.36-inch section define this specialized inboard sprint rotor. Its slotted 12.00-inch face is intended for the specified dirt racing application with compatible BP-40 or CM friction material. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems from Camarillo, California. The product range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized installations. Each selection must meet the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 160-12571
• Diameter and thickness: 12.00 inches diameter x 0.36 inches wide
• Ring material: Titanium
• Face pattern and coating: Slotted; Plain
• Internal layout: Solid, unvented
• Mounting direction: Non-directional
• Balancing and burnishing: Factory burnished no; balanced no
• Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
• Attachment hole size or thread: 0.320 inches
• Center / lug registration: 6.36 inches
• Approximate component weight: 3.30 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

For the specified dirt sprint inboard installation only, using compatible BP-40 or CM friction material as recommended by Wilwood. The titanium rotor's heat cycle and pad requirements must be considered along with its dimensions; it may be unsuitable for other forms of racing.

Manufacturer reference: Wilwood rotor specifications

PMB Performance can help you identify the matching brake components, drawing on over 20 years of experience. Include the current kit number and mounting measurements when requesting a fitment check.
