Product details

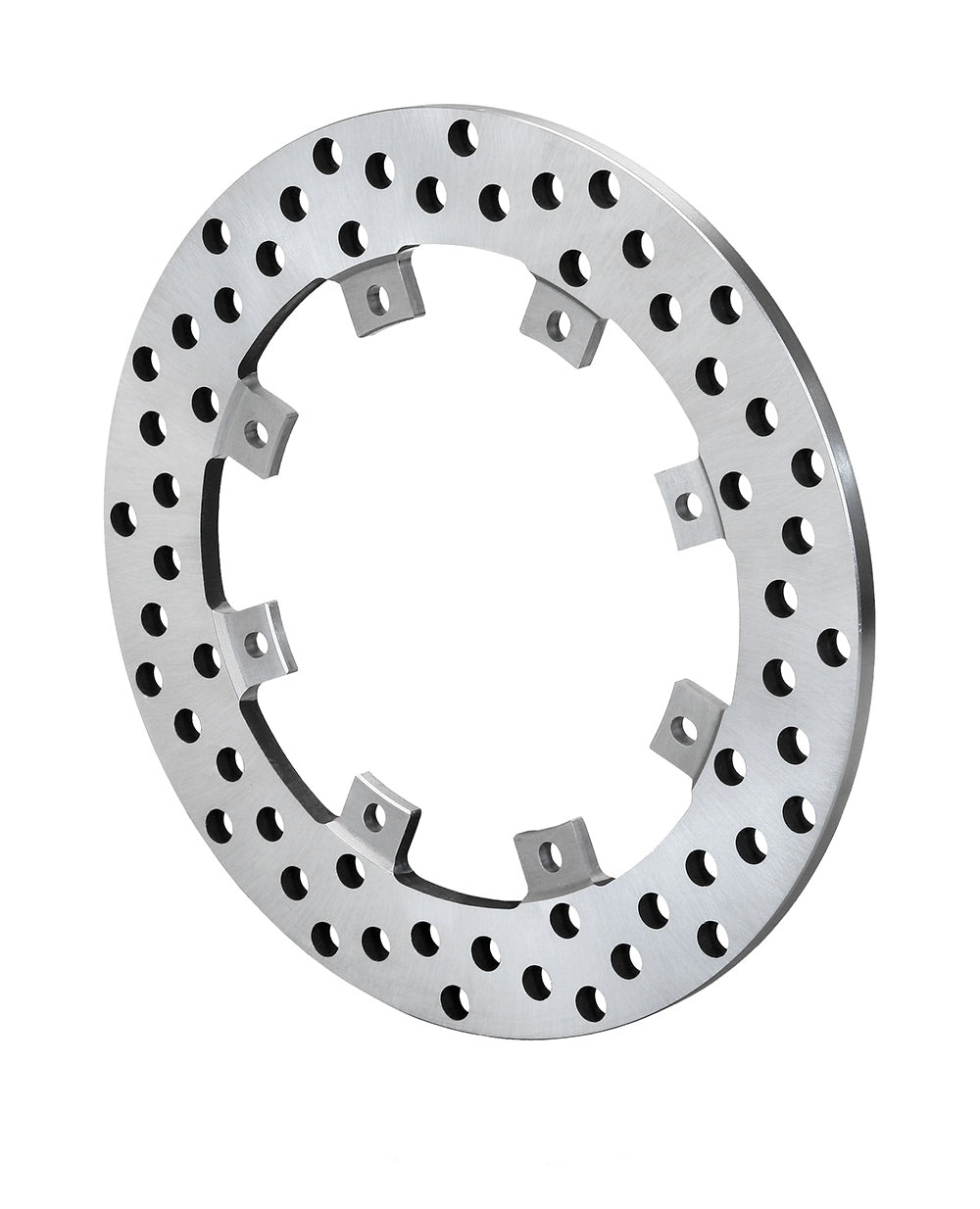

This Super Alloy rear drag rotor replaces bolt holes with an eight-lug dynamic mounting interface. The 11.44 x 0.35-inch solid ring needs the correct lug carrier and retention system, and cannot attach to a conventional eight-bolt hat. The manufacturer is Wilwood Engineering of Camarillo, California, founded by Bill Wood in 1977. It designs and manufactures disc brake systems, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Matching this component requires consideration of the complete brake system.
Technical Details
- Manufacturer part number: 160-12483
- Outside diameter / width: 11.44 inches diameter x 0.35 inches wide
- Material specification: Super Alloy
- Friction surface / finish: Drilled; Plain
- Ventilation: Solid, unvented
- Mounting direction: Non-directional
- Preparation: Balanced: no; factory burnished: no
- Dynamic-lug mounting interface: 8 x 7.18 inches
- Mounting interface: Lug
- Center registration: 6.38 inches
- Approximate weight: 5.00 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
A rear drag-racing replacement requiring the matching eight-lug dynamic carrier and retention hardware. Bolt-hole hats cannot substitute for this lug interface. Use only in the intended drag application; Wilwood does not recommend these rotors for street driving.
Manufacturer reference: Wilwood rotor specifications
Over 20 years of brake and parts experience support PMB Performance's fitment assistance. We can help assess the specified rotor against the hardware already on the vehicle.
