Product details

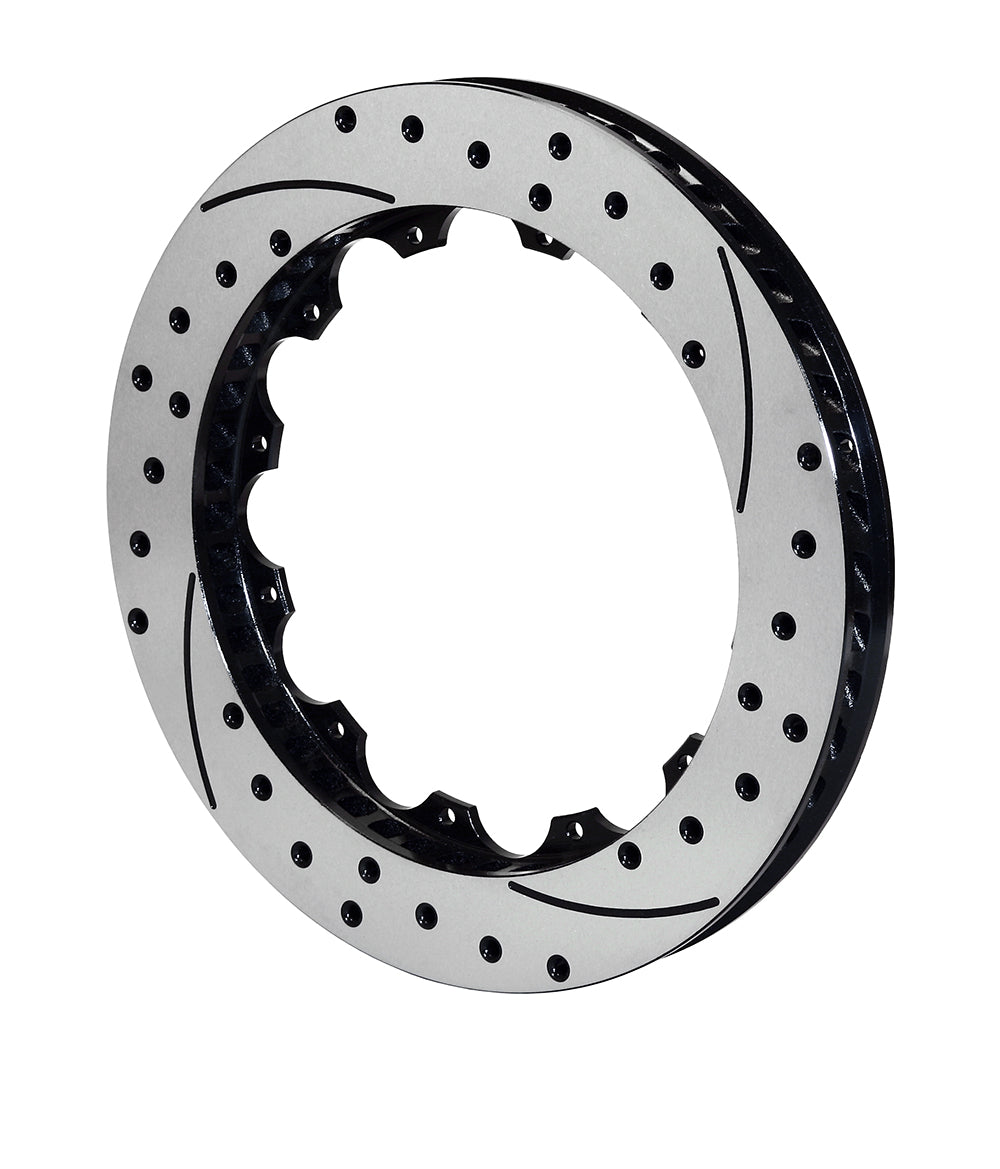

A narrow 0.75-inch section gives this left SRP rotor its specific caliper fit. The 12.88-inch ring has an 8.25-inch mounting register and black electrocoat, and it should be installed on the designated side of the matched system. Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California, designs and manufactures disc brake systems. Its component range spans brake rotors and calipers alongside master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. The complete brake system governs which components belong together.
Technical Details
- Manufacturer part number: 160-12470-BK
- Rotor size: 12.88 inches diameter x 0.75 inches wide
- Rotor material: Iron
- Face and finish: SRP Drilled & Slotted; Black electrocoat
- Vanes: 48 CV
- Mounting direction: Left-hand
- Factory condition: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-12469-BK
- Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
- Attachment hole size or thread: 0.251 inches
- Center / lug registration: 8.25 inches
- Far-side inside diameter: 9.46 inches
- Approximate component weight: 10.10 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
The 0.75-inch working width must suit the caliper, while the hat centers the ring on its 8.25-inch register. Check the 12 x 8.75-inch attachment and radial pad coverage before installation. Vehicle make or wheel pattern alone cannot identify a replacement rotor ring. Wilwood specifies the SRP face treatment for street and moderate-temperature race duty; severe sustained racing calls for evaluation of the corresponding HD or GT option.
