Product details

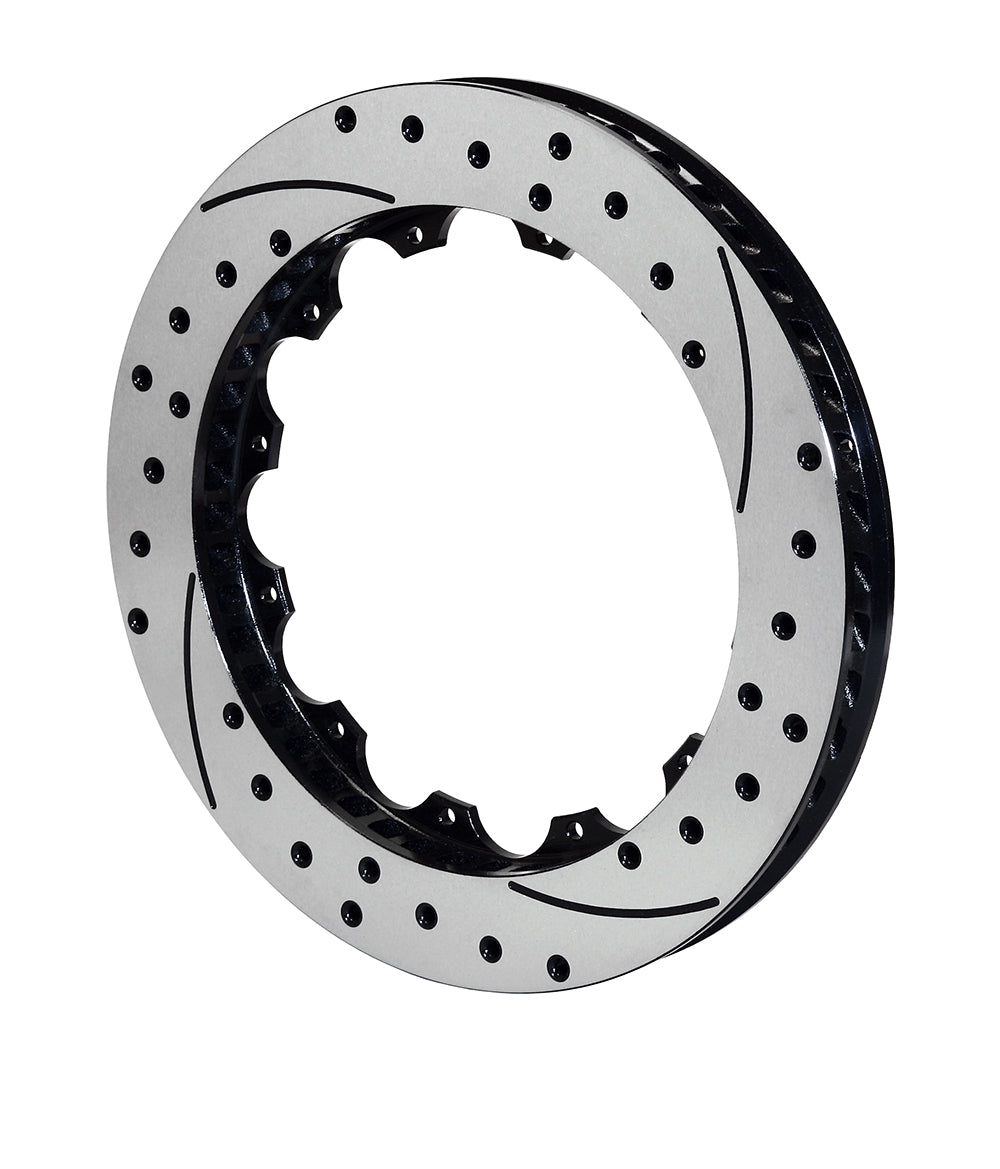

The 0.75-inch working section is the key distinction of this right-hand 12.88-inch SRP rotor. Directional drilling and slots are applied to its iron ring, with twelve mounting holes on an 8.75-inch circle for a separate compatible hat. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc brake systems and their calipers, brake rotors, master cylinders, valves, fittings and brake lines. Across motorsport, street-performance and specialized applications, these components must be matched as parts of a complete braking system.
Technical Details
- Manufacturer part number: 160-12469-BK
- Friction dimensions: 12.88 inches diameter x 0.75 inches wide
- Construction: Iron
- Surface treatment: SRP Drilled & Slotted; Black electrocoat
- Cooling layout: 48 CV
- Mounting direction: Right-hand
- Supplied preparation: Balanced: yes; factory burnished: no
- Opposite-side component, ordered separately: 160-12470-BK
- Rotor-to-hat/hub attachment circle: 12 x 8.75 inches
- Attachment hole size or thread: 0.251 inches
- Center registration: 8.25 inches
- Far-side inside diameter: 9.46 inches
- Approximate weight: 10.10 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Select the separate hat for the 12 x 8.75-inch rotor-attachment pattern and 8.25-inch register. The 12.88-inch friction diameter and 0.75-inch section must agree with caliper placement and pad sweep. This mounting circle is independent of the vehicle's wheel-stud pattern. Wilwood specifies the SRP face treatment for street and moderate-temperature race duty; severe sustained racing calls for evaluation of the corresponding HD or GT option.
Manufacturer reference: Wilwood rotor specifications
Choosing a rotor involves more than its outside diameter. PMB Performance's 20-plus years of brake and parts experience can help you check the component against your existing assembly.
