Product details

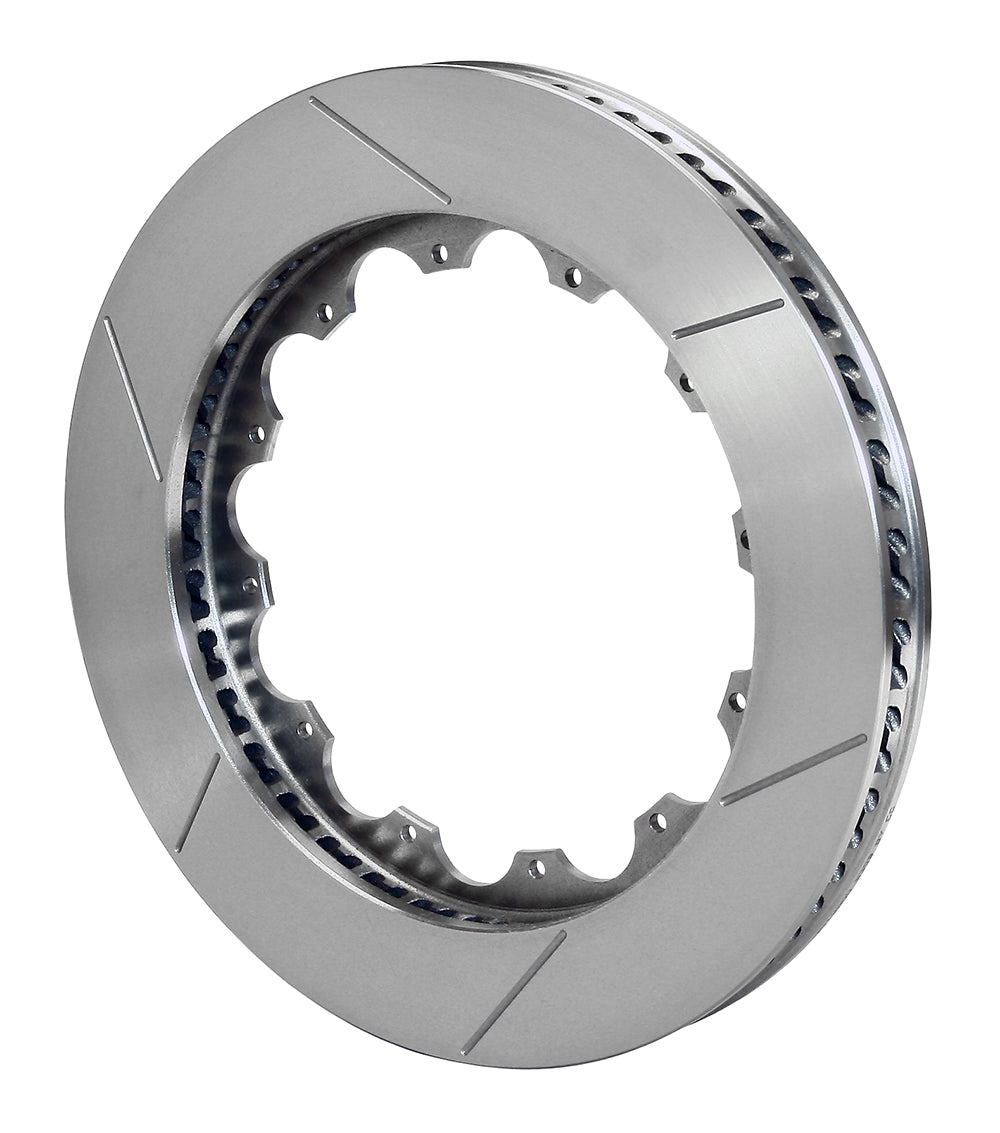

A left-hand 72-vane casting supports the 1.25-inch-wide friction section on this GT rotor. Its 14.00-inch diameter and eight-and-a-quarter-inch mounting circle should be checked together when replacing a ring on an existing two-piece brake assembly. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized components are selected around the requirements of the whole braking system.
Technical Details
- Manufacturer part number: 160-12392
- Rotor size: 14.00 inches diameter x 1.25 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: GT Slotted; Plain
- Vanes: 72 CV; curved
- Mounting direction: Left-hand
- Factory condition: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-12391
- Rotor-to-hat/hub attachment circle: 12 x 8.25 inches
- Attachment hole size or thread: 0.250 inches
- Center / lug registration: 7.75 inches
- Far-side inside diameter: 9.00 inches
- Approximate component weight: 21.70 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
This ring is a component of a matched brake system. Confirm 1.25-inch rotor clearance through the caliper, the 14.00-inch radial envelope and the separate hat's 12 x 8.25-inch attachment. Its 7.75-inch registration must locate concentrically on the specified mounting hardware. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
With more than 20 years of parts and brake-system experience, PMB Performance can help review the rotor, hat and caliper combination before you order.
