Product details

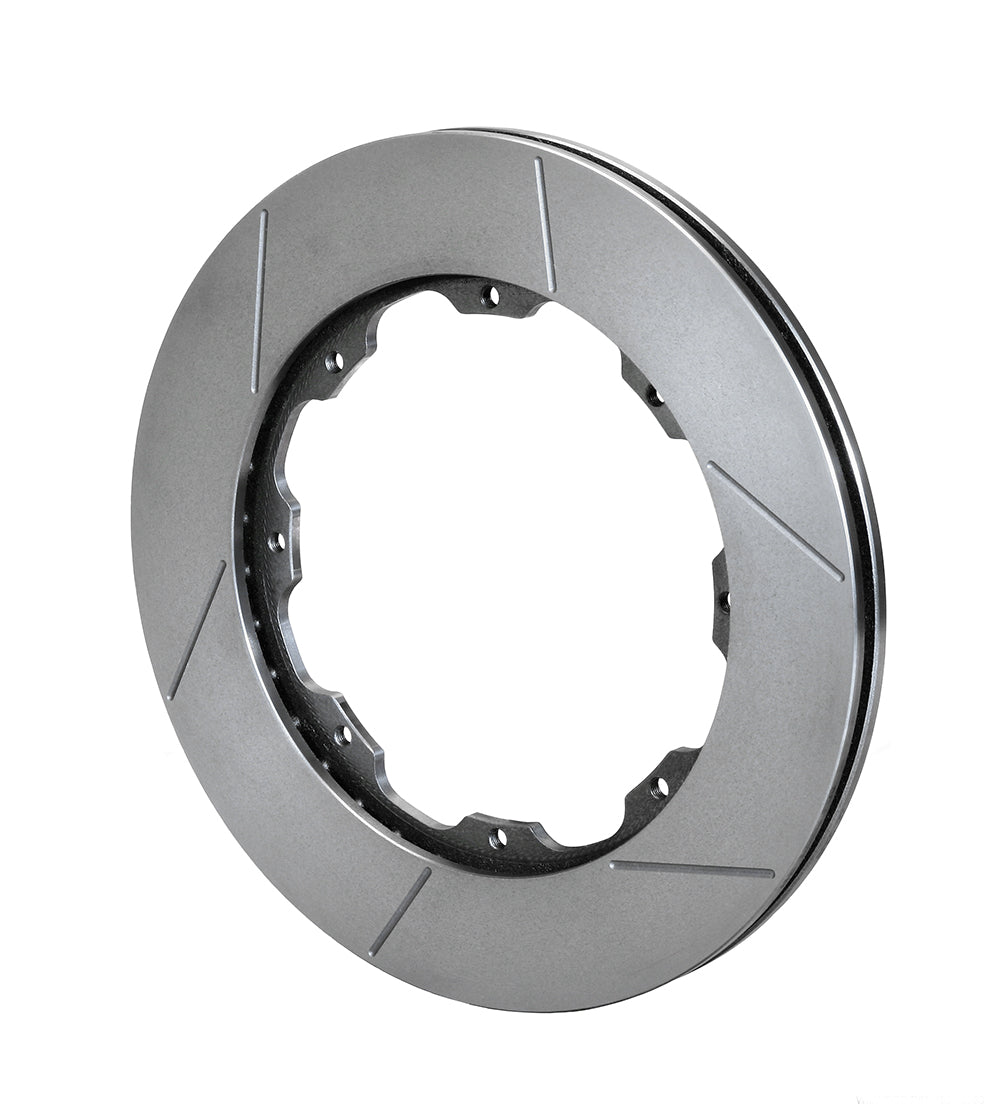

Threaded 5/16-24 mounting points distinguish this right GT rotor from the smaller-circle through-hole version. The 12.19 x 0.81-inch ring requires a hat designed for its 7.62-inch attachment and 7.13-inch register. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California and designs and manufactures disc brake systems. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on selecting those parts for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 160-12293
- Diameter and thickness: 12.19 inches diameter x 0.81 inches wide
- Ring material: Spec-37 Iron
- Face pattern and coating: GT Slotted; Plain
- Internal layout: 36 CV; curved
- Mounting direction: Right-hand
- Balancing and burnishing: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-12294
- Rotor-to-hat/hub attachment circle: 8 x 7.62 inches
- Attachment hole size or thread: 5/16-24
- Center / lug registration: 7.13 inches
- Far-side inside diameter: 8.34 inches
- Approximate component weight: 9.30 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Installation requires a hat or hub designed for the 7.13-inch rotor register and 8 x 7.62-inch attachment. Verify wheel clearance around the complete caliper, along with the rotor's 0.81-inch width. The ring alone does not define a direct-fit vehicle or axle application. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
