Product details

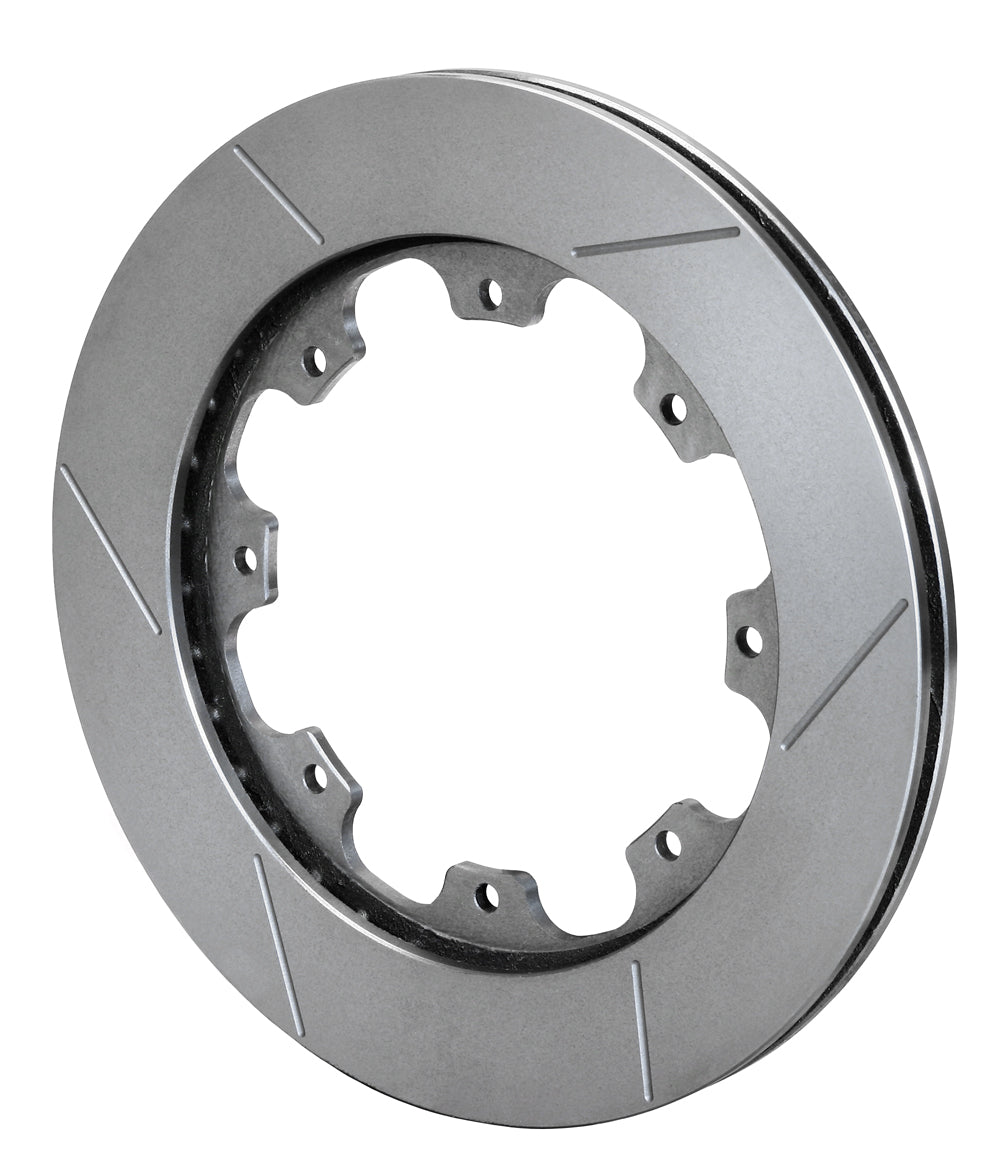

This right-hand GT rotor puts a slotted face on the 12.19 x 0.81-inch Spec-37 ring. The 36-vane casting is individually balanced, with a plain finish and eight mounting holes for the separate compatible hat. Since its founding by Bill Wood in 1977, Wilwood Engineering has designed and manufactured disc brake systems from Camarillo, California. The product range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized installations. Each selection must meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 160-12291
- Diameter and thickness: 12.19 inches diameter x 0.81 inches wide
- Ring material: Spec-37 Iron
- Face pattern and coating: GT Slotted; Plain
- Internal layout: 36 CV; curved
- Mounting direction: Right-hand
- Balancing and burnishing: Factory burnished no; balanced yes
- Opposite-side component, ordered separately: 160-12292
- Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
- Attachment hole size or thread: 0.326 inches
- Center / lug registration: 6.38 inches
- Far-side inside diameter: 8.56 inches
- Approximate component weight: 9.60 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
The 0.81-inch working width must suit the caliper, while the hat centers the ring on its 6.38-inch register. Check the 8 x 7.00-inch attachment and radial pad coverage before installation. Vehicle make or wheel pattern alone cannot identify a replacement rotor ring. Select pads and operating duty to suit the rotor material and the intended brake system.
Manufacturer reference: Wilwood rotor specifications
PMB Performance can help you identify the matching brake components, drawing on over 20 years of experience. Include the current kit number and mounting measurements when requesting a fitment check.
