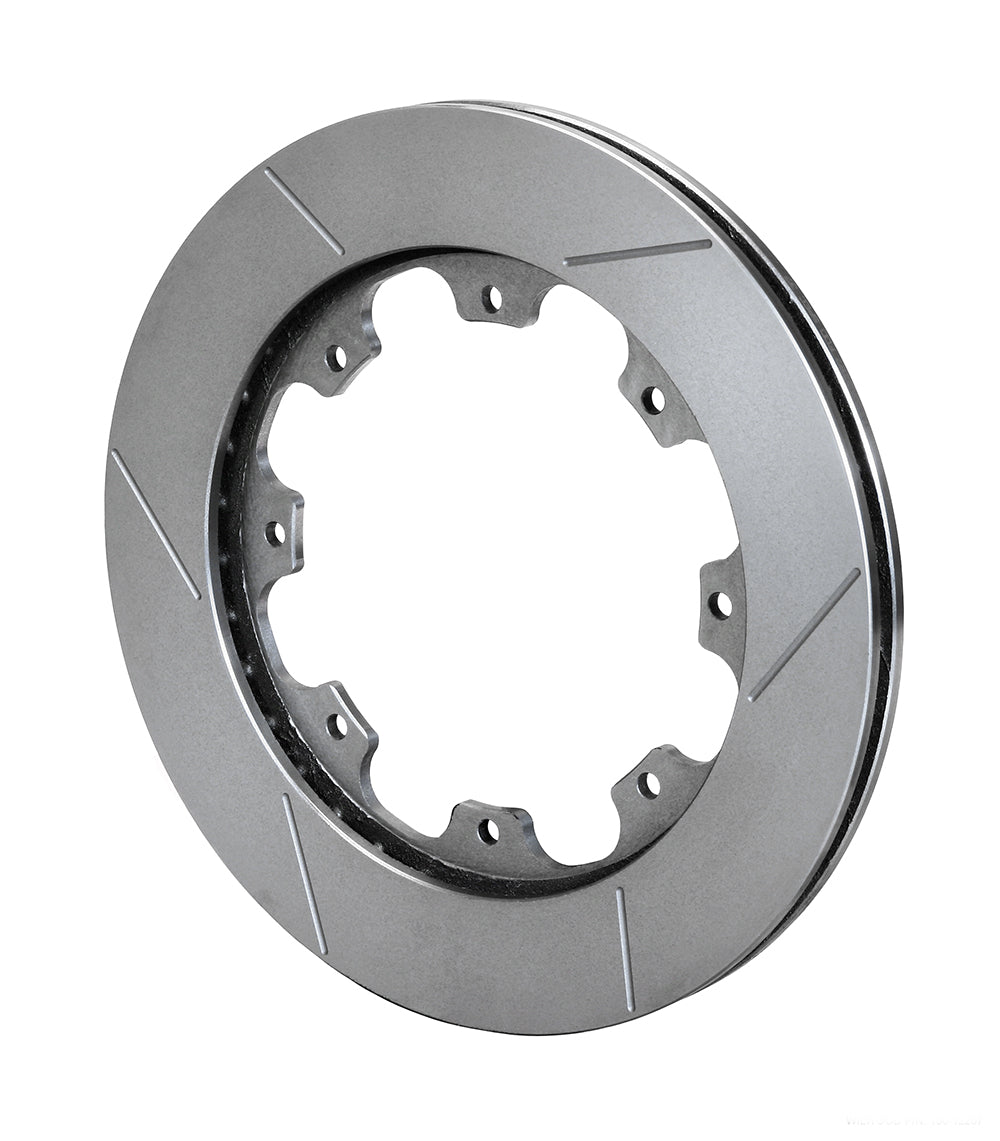

Wilwood Right GT 36-Vane Rotor, 12.00 x 0.81-inch, Plain-Finish Slotted Iron

This GT rotor increases the friction diameter to 12.00 inches while retaining the 0.81-inch width and eight-on-7.00-inch mounting family. The right-hand curved-vane ring needs a caliper position and pad sweep matched to that diameter. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Selection must account for the entire brake system.

Technical Details

• Manufacturer part number: 160-12287
• Diameter and thickness: 12.00 inches diameter x 0.81 inches wide
• Ring material: Spec-37 Iron
• Face pattern and coating: GT Slotted; Plain
• Internal layout: 36 CV; curved
• Mounting direction: Right-hand
• Balancing and burnishing: Factory burnished no; balanced yes
• Opposite-side component, ordered separately: 160-12288
• Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
• Attachment hole size or thread: 0.326 inches
• Center / lug registration: 6.38 inches
• Far-side inside diameter: 8.41 inches
• Approximate component weight: 9.00 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

This ring is a component of a matched brake system. Confirm 0.81-inch rotor clearance through the caliper, the 12.00-inch radial envelope and the separate hat's 8 x 7.00-inch attachment. Its 6.38-inch registration must locate concentrically on the specified mounting hardware. Select pads and operating duty to suit the rotor material and the intended brake system.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
