Product details

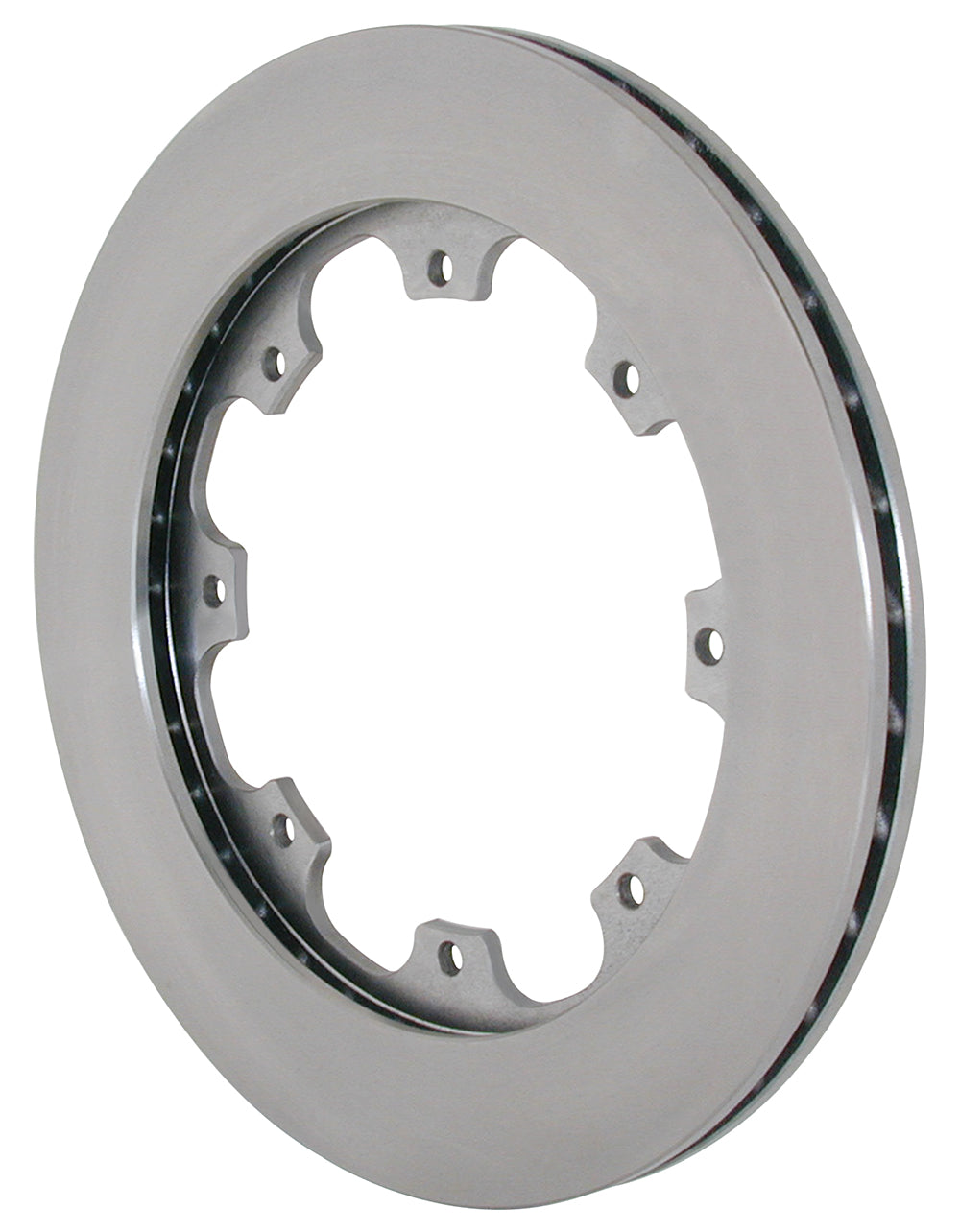

This right HD rotor provides the thinner 0.81-inch working section with smooth friction faces. Its 36 curved vanes and Spec-37 iron casting suit a dimensionally matched system that needs high-temperature capability without GT face slots. For this rotor, the manufacturer is Wilwood Engineering, founded in 1977 by Bill Wood and based in Camarillo, California. Wilwood designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its motorsport, street-performance and specialized products are selected to satisfy the complete brake system's requirements.
Technical Details
- Manufacturer part number: 160-12283
- Rotor size: 11.75 inches diameter x 0.81 inches wide
- Rotor material: Spec-37 Iron
- Face and finish: Plain Face; Plain
- Vanes: 36 CV; curved
- Mounting direction: Right-hand
- Factory condition: Factory burnished no; balanced no
- Opposite-side component, ordered separately: 160-12284
- Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
- Attachment hole size or thread: 0.326 inches
- Center / lug registration: 6.38 inches
- Far-side inside diameter: 7.87 inches
- Approximate component weight: 9.15 lb
- Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate
Fitment & Compatibility
Installation requires a hat or hub designed for the 6.38-inch rotor register and 8 x 7.00-inch attachment. Verify wheel clearance around the complete caliper, along with the rotor's 0.81-inch width. The ring alone does not define a direct-fit vehicle or axle application. Select pads and operating duty to suit the rotor material and the intended brake system.
