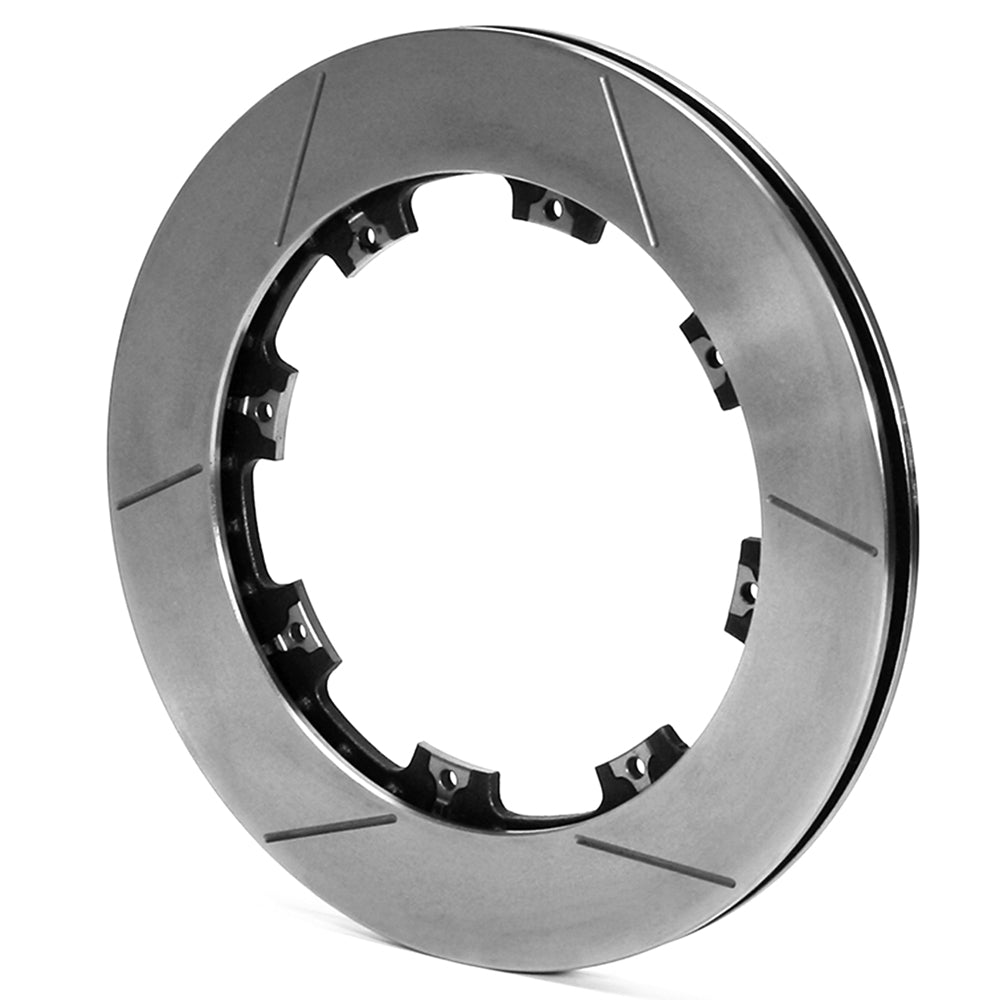

Wilwood HPS GT-Slotted Iron Rotor, 12.19 x 1.10-inch, Plain Finish

Straight cooling vanes allow this slotted HPS ring to serve either side of a compatible brake system. Its plain finish leaves the iron appearance visible, while the 12.19 x 1.10-inch envelope must match the caliper and separate hat. Bill Wood established Wilwood Engineering in 1977; the company is based in Camarillo, California and designs and manufactures disc brake systems. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its range for motorsport, street-performance and specialized applications. Compatibility depends on selecting those parts for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 160-12206
• Diameter and thickness: 12.19 inches diameter x 1.10 inches wide
• Ring material: Iron
• Face pattern and coating: GT Slotted; Plain
• Internal layout: 32 vanes; straight
• Mounting direction: Non-directional
• Balancing and burnishing: Factory burnished no; balanced no
• Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
• Attachment hole size or thread: 0.323 inches
• Center / lug registration: 6.45 inches
• Far-side inside diameter: 8.34 inches
• Approximate component weight: 13.60 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

Compare the existing hat interface with the 8 x 7.00-inch rotor pattern, then check the 6.45-inch centering register. Proper axial placement and full pad contact are required around the 12.19-inch ring. A matching wheel-bolt pattern is not a substitute for this rotor-to-hat check.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
