Product details

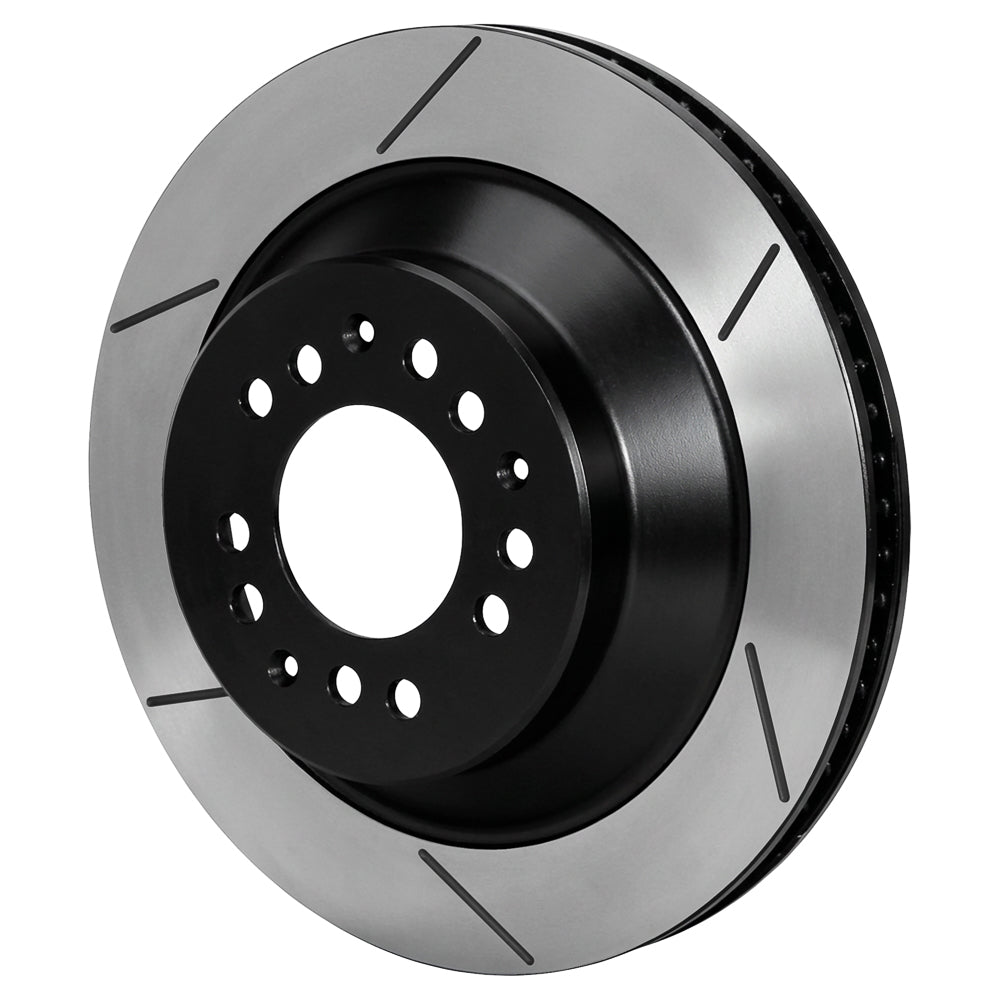

The black HPS rotor combines a slotted 12.88-inch friction ring with a cast-in hat. Its 1.10-inch width, 1.75-inch offset and dual five-lug clearance patterns must match the existing hub and caliper assembly. Wilwood Engineering's disc brake systems are designed and manufactured for motorsport, street-performance and specialized applications. Founded in 1977 by Bill Wood and based in Camarillo, California, the company makes calipers, brake rotors, master cylinders, valves, fittings and brake lines. These individual parts must be chosen to work within the complete braking system.
Technical Details
- Manufacturer part number: 160-12191-GTB
- Friction dimensions: 12.88 inches diameter x 1.10 inches wide
- Construction: Iron
- Surface treatment: GT Slotted; Black electrocoat
- Cooling layout: Vented; exact table lists 34 vanes, family description uses 32-vane designation; confirm supplied casting
- Mounting direction: Non-directional
- Supplied preparation: Balanced: yes; factory burnished: no
- Hat wheel-stud clearance pattern: 5 x 4.50/4.75 inches
- Stud clearance-hole sizes: 0.52 inches
- Center registration: 3.06 inches
- Far-side inside diameter: 9.46 inches
- Hat offset: 1.750 inches
- Inside clearance diameter: 6.26 inches
- Hat mounting-face thickness: 0.25 inches
- Approximate weight: 16.60 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
Front rotor for the matching 12.88-inch conversion, including kit 140-13654. Its 1.75-inch hat offset, 3.06-inch register and dual stud-clearance circles require the corresponding hub and caliper bracket. Confirm the supplied vane count because the manufacturer's table and family description differ.
Manufacturer reference: Wilwood rotor specifications, Wilwood application information
PMB Performance brings over 20 years of brake and parts experience to component selection. Send the existing rotor identification and brake-kit details if you need help confirming the match.
