Product details

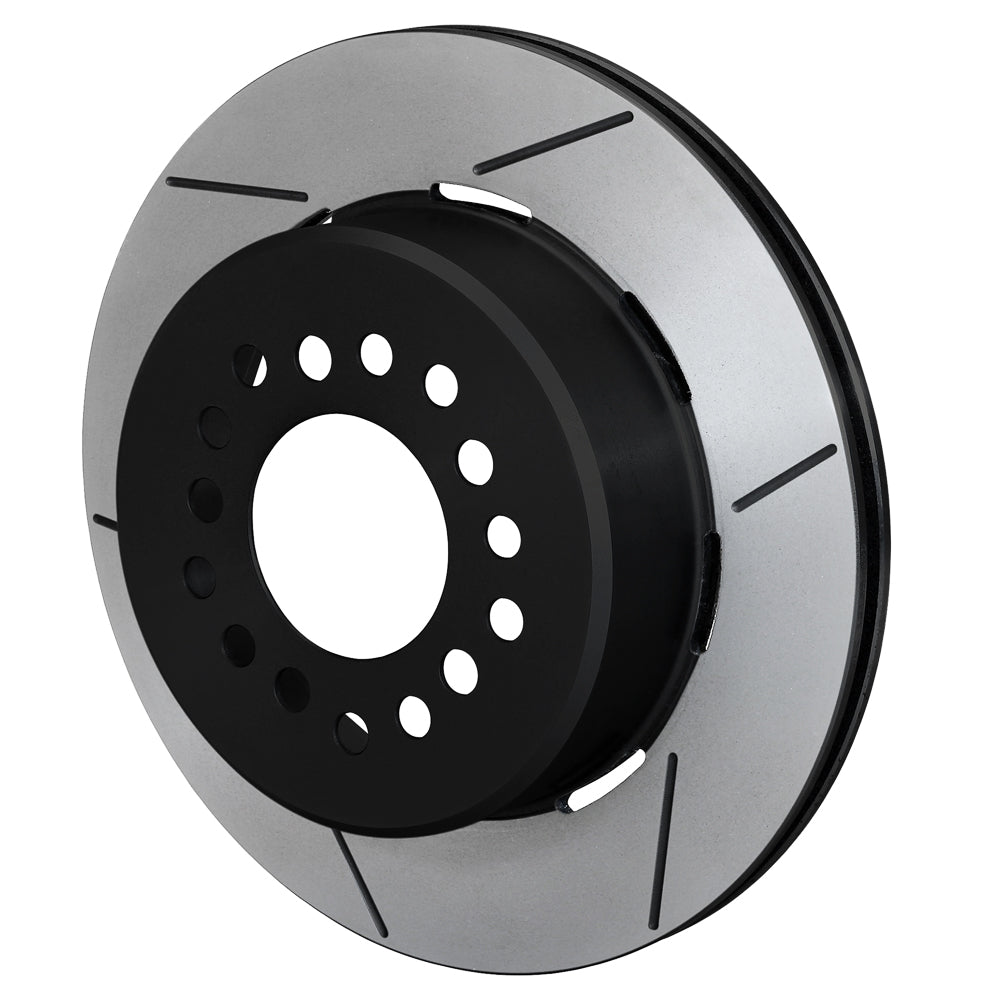

This rear GTB casting brings a slotted 12.19-inch service ring and the parking drum into one component. The shallower 1.91-inch hat location and three wheel-stud clearance patterns require a matching axle flange and rear conversion geometry. Camarillo, California is home to Wilwood Engineering, founded in 1977 by Bill Wood. The company designs and manufactures disc brake systems and their calipers, brake rotors, master cylinders, valves, fittings and brake lines. Across motorsport, street-performance and specialized applications, these components must be matched as parts of a complete braking system.
Technical Details
- Manufacturer part number: 160-12150-GTB
- Friction dimensions: 12.19 inches diameter x 0.81 inches wide
- Construction: Iron
- Surface treatment: GT Slotted; Black electrocoat
- Cooling layout: 32 vanes; straight
- Mounting direction: Non-directional
- Supplied preparation: Balanced: no; factory burnished: no
- Hat wheel-stud clearance pattern: 5 x 4.50/4.75/5.00 inches
- Stud clearance-hole sizes: .56/.52/.52 inches
- Center registration: 3.06 inches
- Far-side inside diameter: 8.38 inches
- Hat offset: 1.910 inches
- Internal parking-drum diameter: 7.24 inches
- Inside clearance diameter: 7.16 inches
- Hat mounting-face thickness: 0.18 inches
- Approximate weight: 14.40 lb
- Quantity: one rotor with integral hat; separate hub, pads, calipers, mounting hardware and any parking-brake mechanism are not included
Fitment & Compatibility
Used in the matched 12.19-inch rear disc/drum conversion with a 1.91-inch offset. Verify the 7.24-inch parking drum, 3.06-inch register and appropriate stud-clearance circle against the axle and brake brackets; this rotor does not include parking-brake hardware.
Manufacturer reference: Wilwood rotor specifications
Choosing a rotor involves more than its outside diameter. PMB Performance's 20-plus years of brake and parts experience can help you check the component against your existing assembly.
