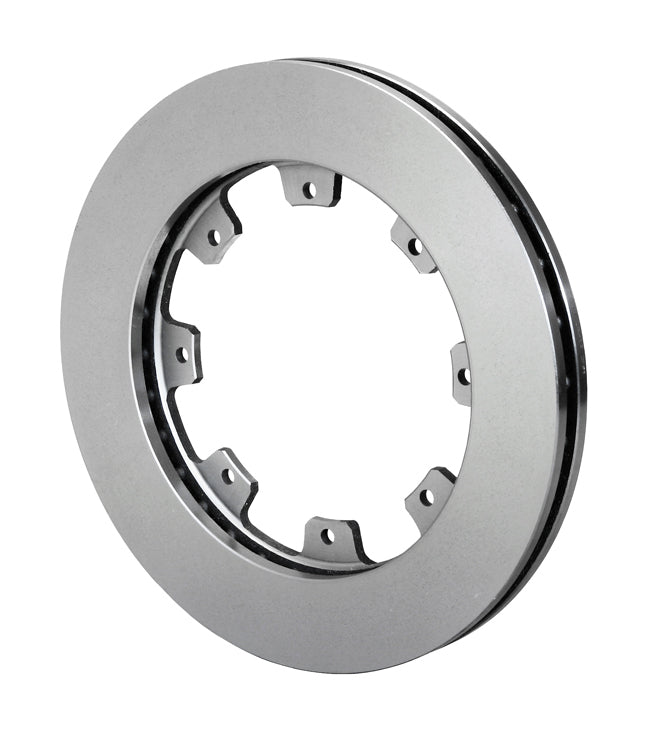

Wilwood HP Plain Rotor, 12.19 x 1.10-inch, 32 Straight Cooling Vanes

The 1.10-inch HP ring uses straight vanes and a plain pad-contact surface. Its 6.45-inch registration is a critical distinction from other eight-on-7.00-inch rotors, even where outside diameters look similar. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized uses. Selection must account for the entire brake system.

Technical Details

• Manufacturer part number: 160-11862
• Diameter and thickness: 12.19 inches diameter x 1.10 inches wide
• Ring material: Iron
• Face pattern and coating: Plain Face; Plain
• Internal layout: 32 vanes; straight
• Mounting direction: Non-directional
• Balancing and burnishing: Factory burnished no; balanced no
• Rotor-to-hat/hub attachment circle: 8 x 7.00 inches
• Attachment hole size or thread: 0.323 inches
• Center / lug registration: 6.45 inches
• Far-side inside diameter: 8.34 inches
• Approximate component weight: 13.60 lb
• Quantity: one rotor ring; hat, hub, mounting hardware, calipers and pads are separate

Fitment & Compatibility

For a matched street or moderate-temperature competition brake assembly. Confirm the hat's attachment circle and register, the caliper's rotor-width capacity and the full pad sweep. A rotor ring does not establish vehicle or axle compatibility by itself.

Manufacturer reference: Wilwood rotor specifications

PMB Performance has over 20 years of experience helping customers select brake components. Supplying the kit number, mounting dimensions and intended use makes that fitment check more useful.
